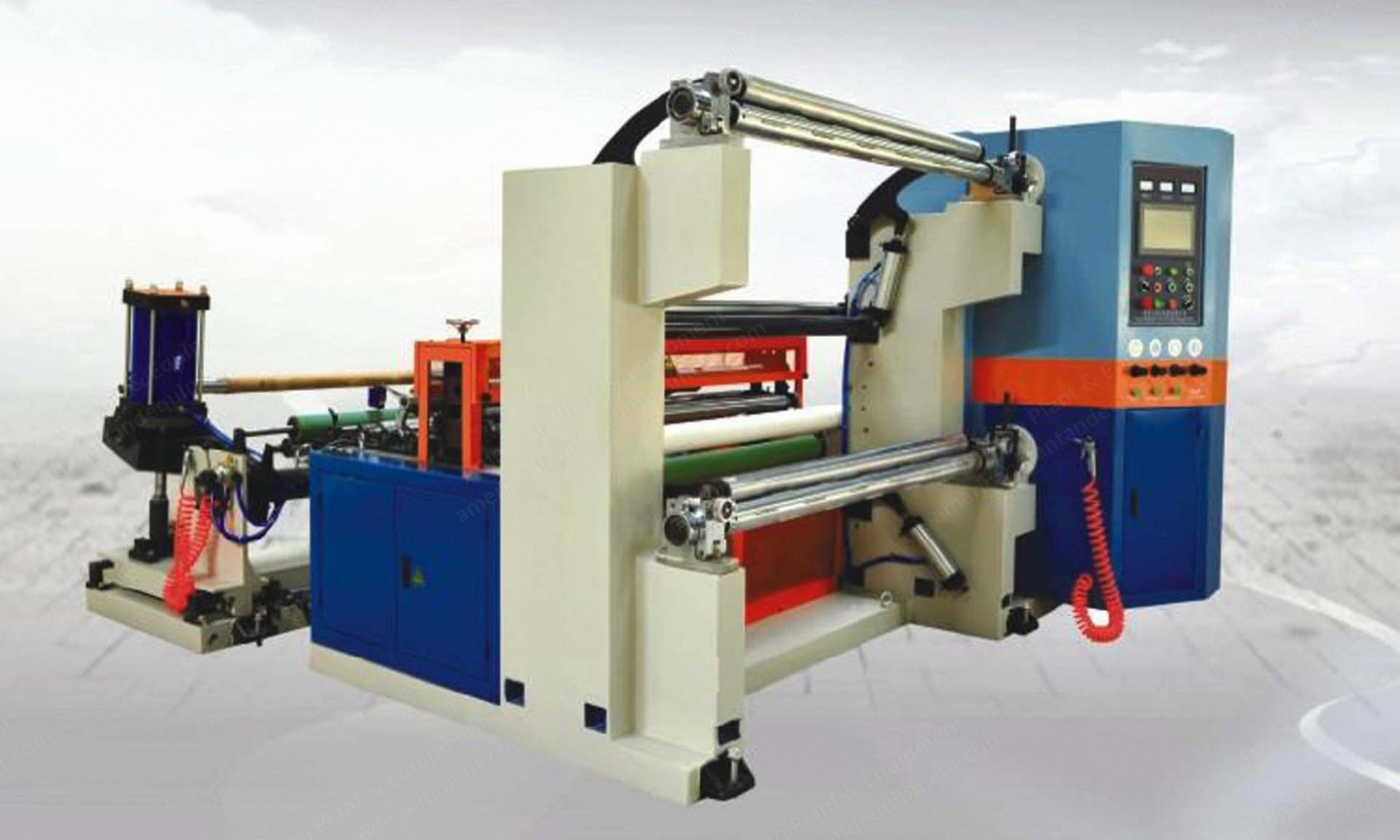

NovaStar, SR214, Width 600 to 1300mm, Speed 300m/min, Max Parent Web Diameter 1500mm (New)

NovaStar, SR214, Width 600 to 1300mm, Speed 300m/min, Max Parent Web Diameter 1500mm

Description

  1. Overview
    1. Automatic slitting rewinding machine
    2. Model SR214
    3. High speed slitting and rewinding machine suitable for all kinds of mother roll slitting and rewinding, such as paper, kraft paper, glass paper, self adhesive paper, non-woven cloth, pvc, opp, pet, cpp, fiberglass etc
  2. Control System
    1. Inovance plc and high-tech touch screen, all the parameters are displayed on the monitor work
    2. Yaskawa brand frequency inverters and siemens brand inverter motor, one motor for material feeding, the other one for tension control
    3. Sick (germany) brand photocells to provide the accurate slitting position
  3. Material Handling
    1. Equipped with automatic lift-up loading system for heavy material roll loading and unloading
    2. Unwinding and rewinding section equipped with fully automatic tension controller, it can keep the constant tension which is setup in plc
    3. With 15kg/m2x1 magnetic powder brake and 15kg/m2x2 magnetic clutches from taiwan
    4. Round blades are self-lock type, no screws on upper or lower knives, only need to adjust an angle to be adjustable
    5. All transmission rollers have been dynamic/static balanced
    6. With 0.55kw air blow and blower pipe for waste edge trimming
  4. Technical Specifications
    1. Max. parent web width: 600 to 1300mm
    2. Max. parent web diameter: φ 1500mm
    3. Max. rewinding diameter: φ 1000mm
    4. Min. slitting width: round blade: 30mm
    5. Thickness range: paper: 50 to 800gsm, film: 0.005 to 0.8mm
    6. Max. machine speed: 300m/min
    7. Unwinding/rewinding shaft: 3’ pneumatic air expanding shaft
    8. Machine weight: 3000 to 8500 kgs
    9. Overall dimensions: 3600 x 2600 x 2000mm
