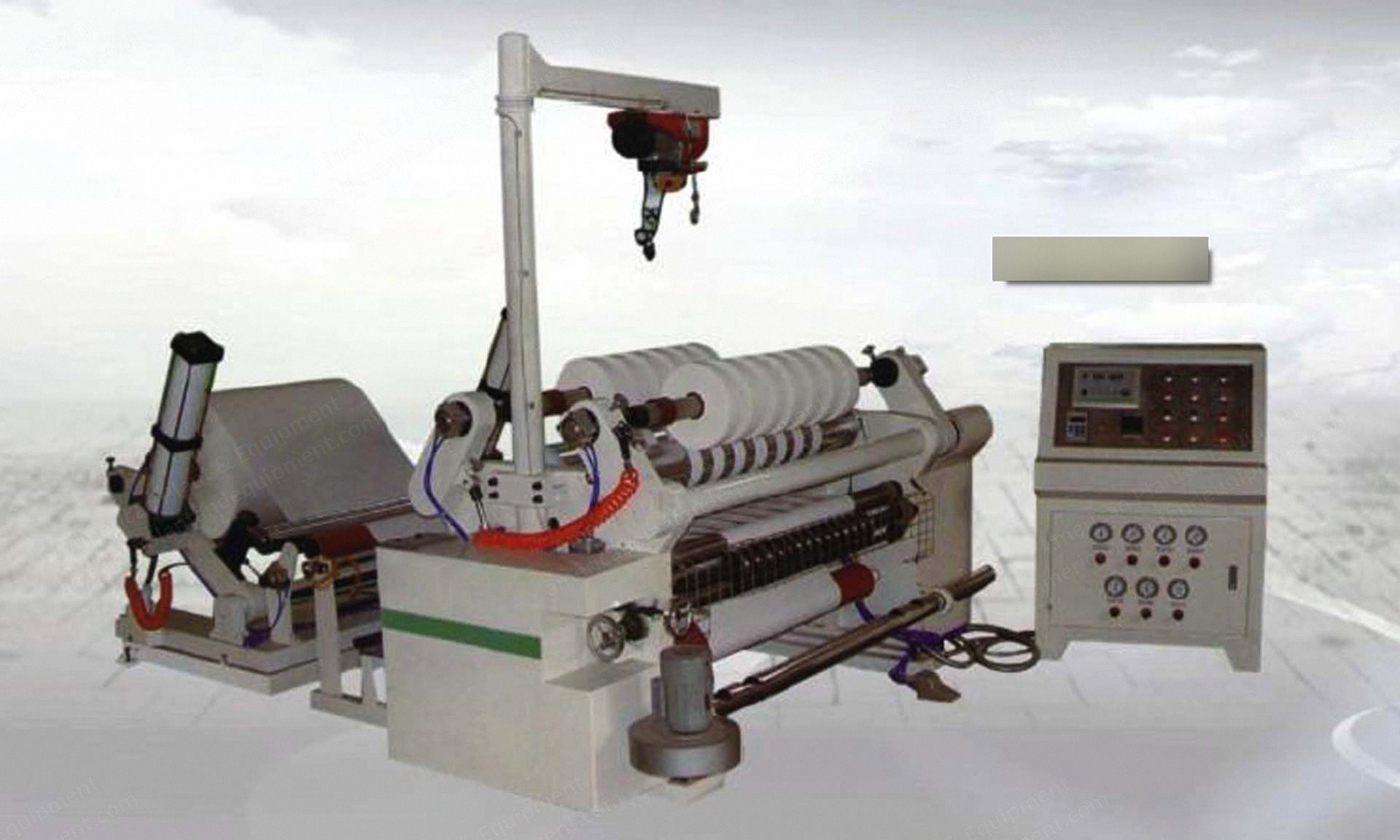

NovaStar, SR216, Width 1300mm, Max Speed 400m/min, Max Unwind 1500mm (New)

NovaStar, SR216, Width 1300mm, Max Speed 400m/min, Max Unwind 1500mm

Description

  1. Overview
    1. Auto duplex surface slitter rewinder
    2. Model SUR-1300
    3. Suitable for cutting thin material such as thin paper, cigarette paper, tipping paper, hot stamping film, aluminum foil, and plastic film (PVC, OPP, PET, CPP)
  2. Control System
    1. Inovance PLC and touch panel HMI; all parameters displayed on the touch screen; only presetting roll diameter, material thickness and initial tension, machine will automatically work
    2. 3 sets Yaskawa frequency inverter (5.5 kW)
    3. 3 sets Siemens inverter motors to control material feeding and rewinding tension
    4. Sick photocells from Germany to track material edge and automatic rectify to ensure accurate situation
  3. Mechanical Features
    1. Pneumatic devices to control pressure roller, pressure adjustable, for perfect rewinding of thin material
    2. Disc type blade to cut thin material
    3. Pneumatic loading system to load big heavy jumbo roll and auto unloading system to unload finished rolls, reducing working intensity and saving time
    4. Fully automatic unwinding and rewinding tension controller to keep constant tension
    5. 15 kg/m² x 1 piece magnetic brake from Taiwan to control unwinding tension
    6. Each rewinding shaft driven by one inverter motor and two rewinding motors with main motor for high speed operation
    7. Air blower and air hose to blow waste material off
    8. 2 pieces foot emergency switches
  4. Technical Specifications
    1. Max. unwinding width: 1300 mm
    2. Max. unwinding diameter: 1500 mm
    3. Max. rewinding diameter: 400 mm
    4. Min. slitting width: 10 mm by disc type blade
    5. Material thickness: paper 10 to 400 gsm
    6. Max. slitting speed: 400 m/min
    7. Unwinding/rewinding shaft: 3 in (76 mm)
  5. Dimensions and Weight
    1. Machine weight: 4000 kg
    2. Machine dimension: 3500 x 2000 x 3000 mm
