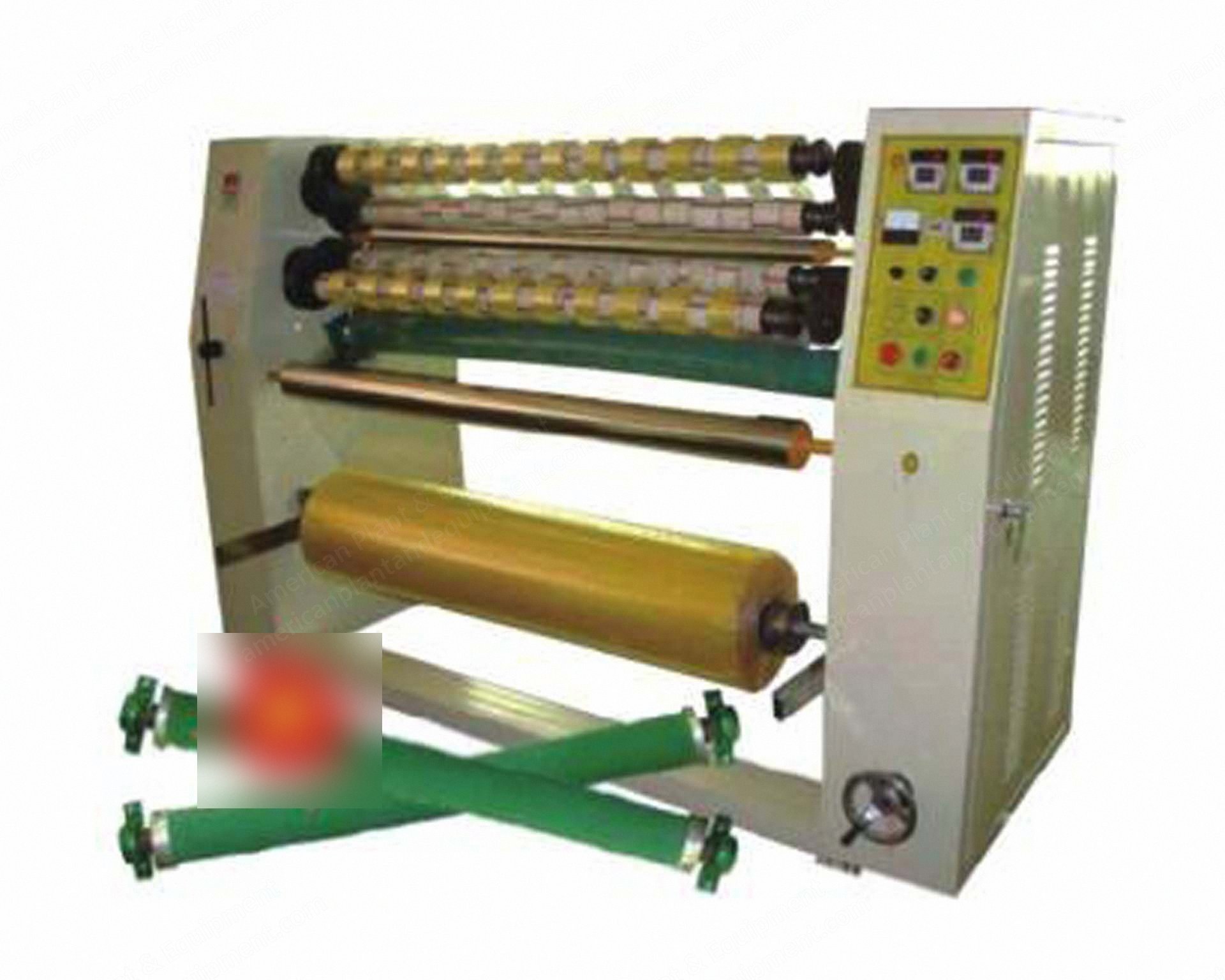

NovaStar, SR226, Automatic BOPP Tapes Slitting Machine, 1300mm Max Unwinding Width, 180m/min, 5HP (New)

NovaStar, SR226, Automatic BOPP Tapes Slitting Machine, 1300mm Max Unwinding Width, 180m/min, 5HP

Description

  1. Overview
    1. Automatic BOPP tapes slitting machine, model 202.
    2. Specialized in slitting and rewinding BOPP/OPP adhesive tapes for box sealing.
    3. Adopts the newest technology.
  2. Key Features
    1. Three segment meter counter to ensure length precision.
    2. Roller exchange in manual or auto for alternative.
    3. Adopts inverter motor for material feeding; inverter is from Yaskawa.
    4. Adopts imported electric appliances for stable function.
    5. Adopts two sets of banana roll to avoid any folding.
  3. Technical Specifications
    1. Max. unwinding width: 1300 mm.
    2. Max. unwinding diameter: 700 mm.
    3. Slitting width: 8 to 1280 mm.
    4. Max. rewinding diameter: 150 mm (4 rewinding shaft for alternative).
    5. Machine speed: 0 to 180 m/min.
    6. Main motor: 5 hp.
    7. Voltage: 3-phase, 480 V.
    8. Weight: 1500 kg.
    9. Overall dimension: 2300 x 1200 x 1400 mm.
