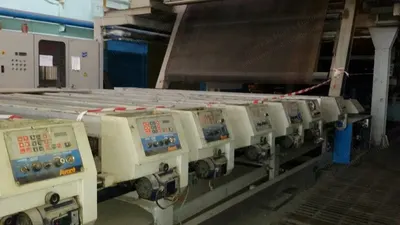

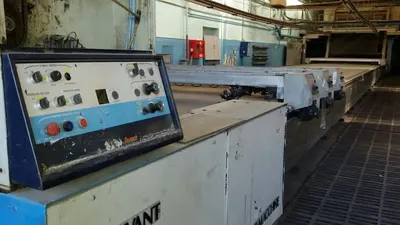

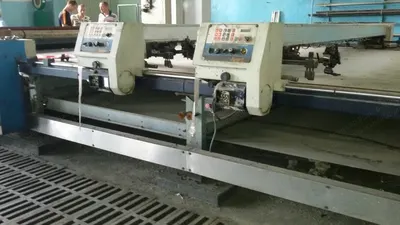

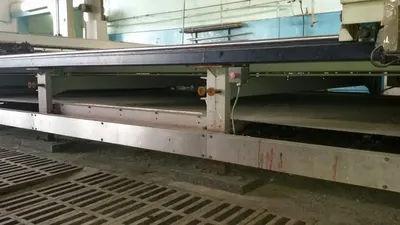

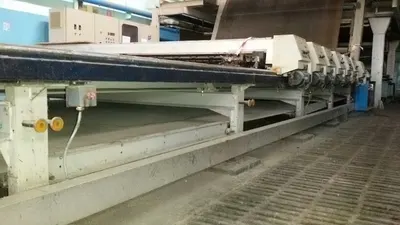

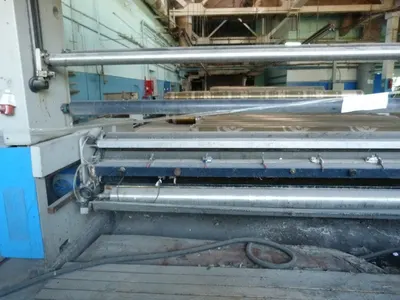

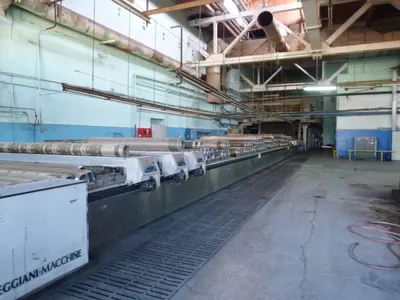

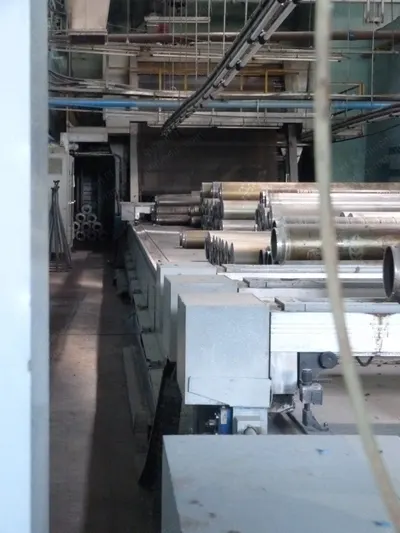

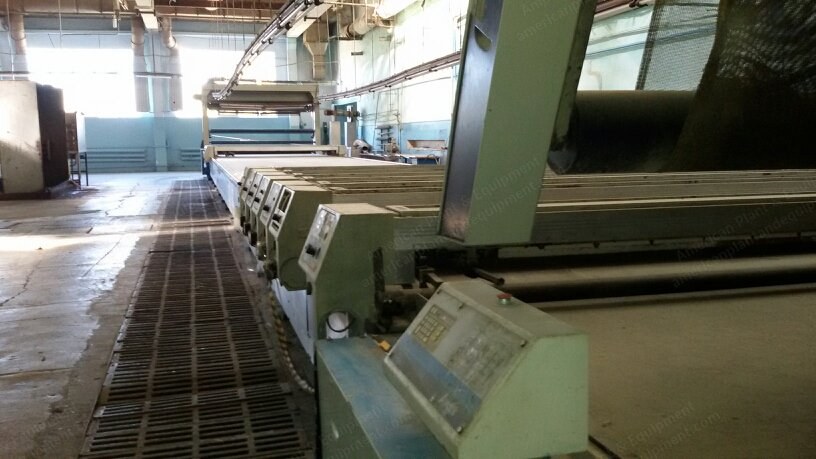

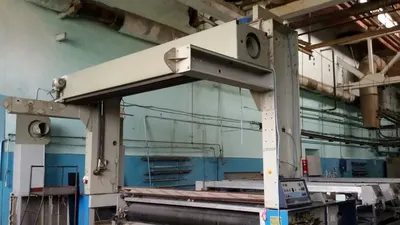

Description Overview Reggiani Avant flat printing machine Model 320 Width 3200 mm Year 1993 12 colors 4 chambers dryer Specifications Max printing width: 3200 mm Max fabric width: 3500 mm Min fabric width: 1150 mm Max speed of blanket advancement: 75 m/min Max speed of squeegee pass: 144 m/min Max length of printing table: 40000 mm Min length of printing table: 4000 mm Standard central module: 4000 mm Special central module: 2000 mm Max printing repeat: 9999 mm Min printing repeat: 400 mm Components Entry with pressure-roller Squeegee Basin gluing Rubber coated blanket tensioning Drive roller Blanket dryer Pressure roller group Drying unit Washing unit RWX-2 Consumption Gas consumption: 30 m³/section Steam consumption: 400 kg/hour per section at 8 bar Diathermic oil consumption: 20 m³/hour per section Steam consumption for blanket drying: 140 kg/hour (8 bar) Steam consumption for RWX-2 drying: 90 kg/hour (8 bar) Oil consumption for blanket drying: 4 m³/hour Water consumption for blanket drying: 5 m³/hour Water consumption for blanket washing with water recovery: 2.5 m³/hour Condition Currently stopped on mill floor
