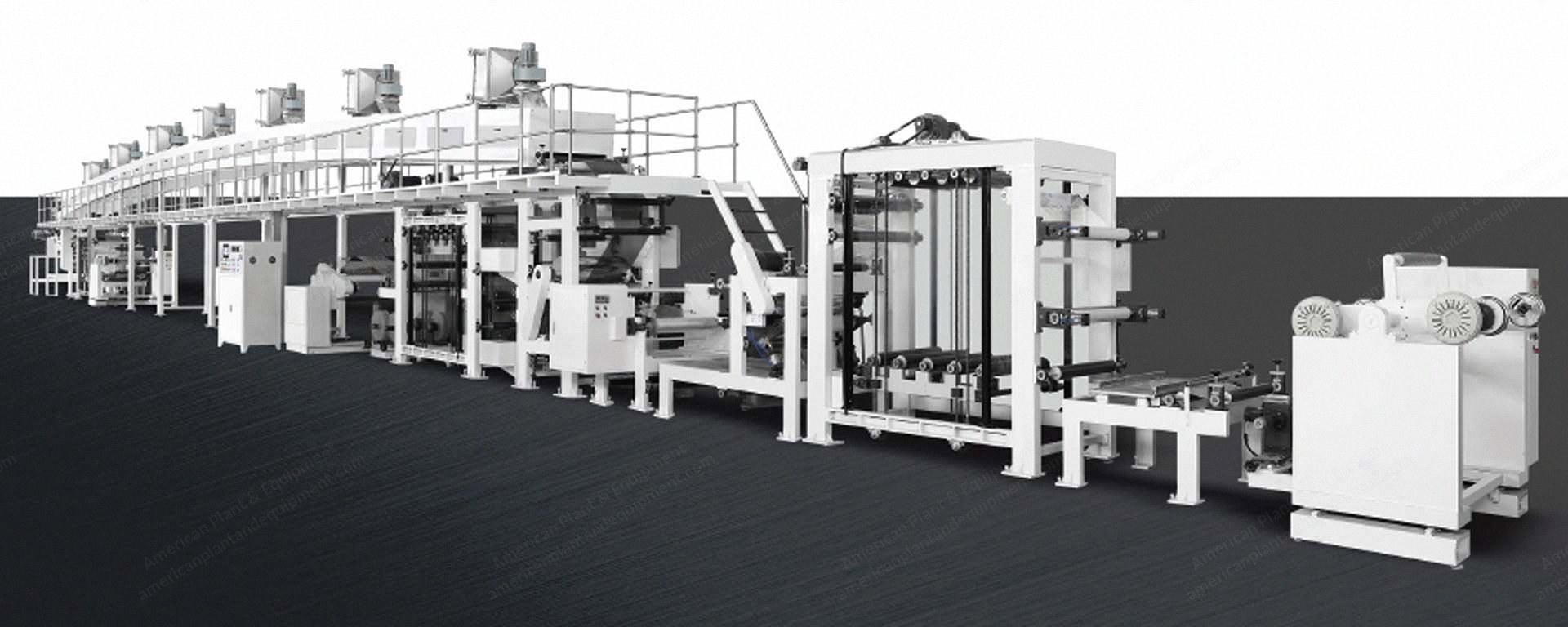

NovaStar, LC156, Multifunctional Optical Film Coating Laminating Machine, 500 to 1600mm Width, 5 to 50m/min (New)

NovaStar, LC156, Multifunctional Optical Film Coating Laminating Machine, 500 to 1600mm Width, 5 to 50m/min

Description

  1. Overview
    1. Whole machine adopts unit-frame type structure; machine length can be made according to production requirement.
    2. Coating type can adopt comma scraper coating, anilox roller coating, micro concave roller coating, extrusion coating or wire bar coating, according to actual production technology.
    3. Stepless speed regulating by ac inverter, synchronous control of unwinding, pre-traction, coating, laminating traction and rewinding.
    4. Sectional independent homothermal drying system of oven; heating type can adopt electric heating, heat conduction oil heating and so on; automatic temperature control for each temperature section.
    5. Automatic coating weight, automatic speed up and down, automatic material breaking inspection, automatic failure warning, automatic separation and reunion of pneumatic component.
    6. Unwinding and rewinding adopt automatic rotary double stations, non-stop material changing.
  2. Technical Specifications
    1. Coating type: multifunctional coating, coating type can adopt comma scraper coating, anilox roller coating, micro concave roller coating, extrusion coating or wire bar coating.
    2. Effective coating width: 500 to 1600 mm.
    3. Mechanical speed: 5 to 50 m/min (depends on production technology).
    4. Unwinding diameter: ≤ φ850 mm (double station, non-stop material changing).
    5. Rewinding diameter: ≤ φ850 mm (double station, non-stop material changing).
    6. Heating and drying type: heating cycling wind by centrifugal blower; heating type can adopt electric heating, heat conduction oil heating, steam heating or hot-blast stove heating.
    7. Oven length and temperature control: 15 to 60 m optional oven length, 3 m for each temperature section, 50 to 170 °C ± 2 °C automatic controlled temperature.
    8. Winding edge planeness: ± 1.0 mm.
    9. Total power: about 50 to 200 kW (depends on heating type).
    10. Overall dimension: 39500 x 2800 x 5000 mm (L x W x H) with 27 m oven.
