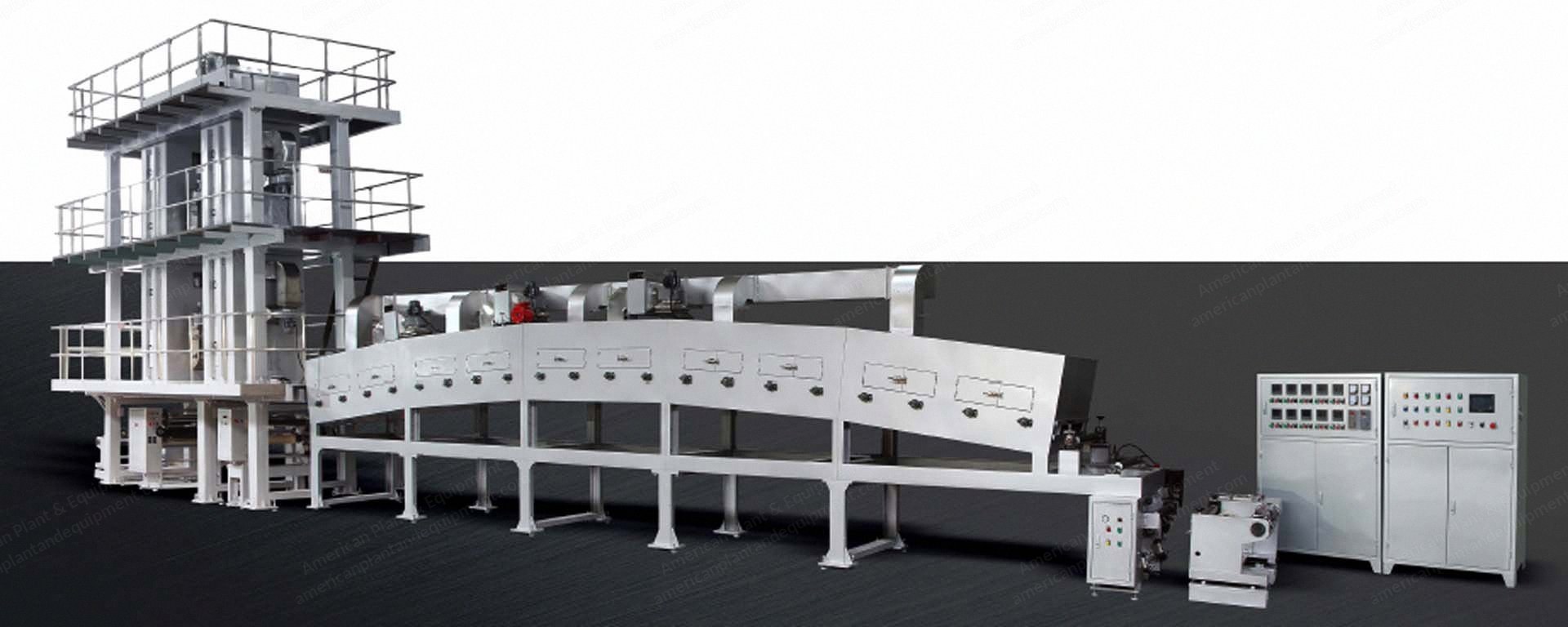

Whole machine adopts unit-frame type structure, oven length can be made according to production requirement, upright oven combines with arched oven.
It is mainly used for glue-soaking coating of web materials.
Adopt hard aluminium alloy guide roller, surface brown hardening process.
Electric heating for oven, heating cycling wind by centrifugal blower, automatic proportional temperature controlled by solid-state voltage regulator (scr module).
Whole machine controlled by plc, man-machine interface, easy operating.
Technical Parameters
Effective coating width: 600 to 1600 mm
Production speed: 2 to 20 m/min (depends on production technology)
Unwinding diameter: ≤ φ600 mm
Reminding diameter: ≤ φ600 mm
Drying type: electric heating cycling wind
Temperature control: 60 to 400 °C ± 2 °C
Winding edge planeness: ± 2.0 mm
Total power: about 265 kW (including electric heating power about 18 kW x l3 = 234 kW)
Overall dimension: 18000 x 2500 x 7000 mm (l x w x h)
Coating type: glue-soaking coating (one side coating is achievable)
