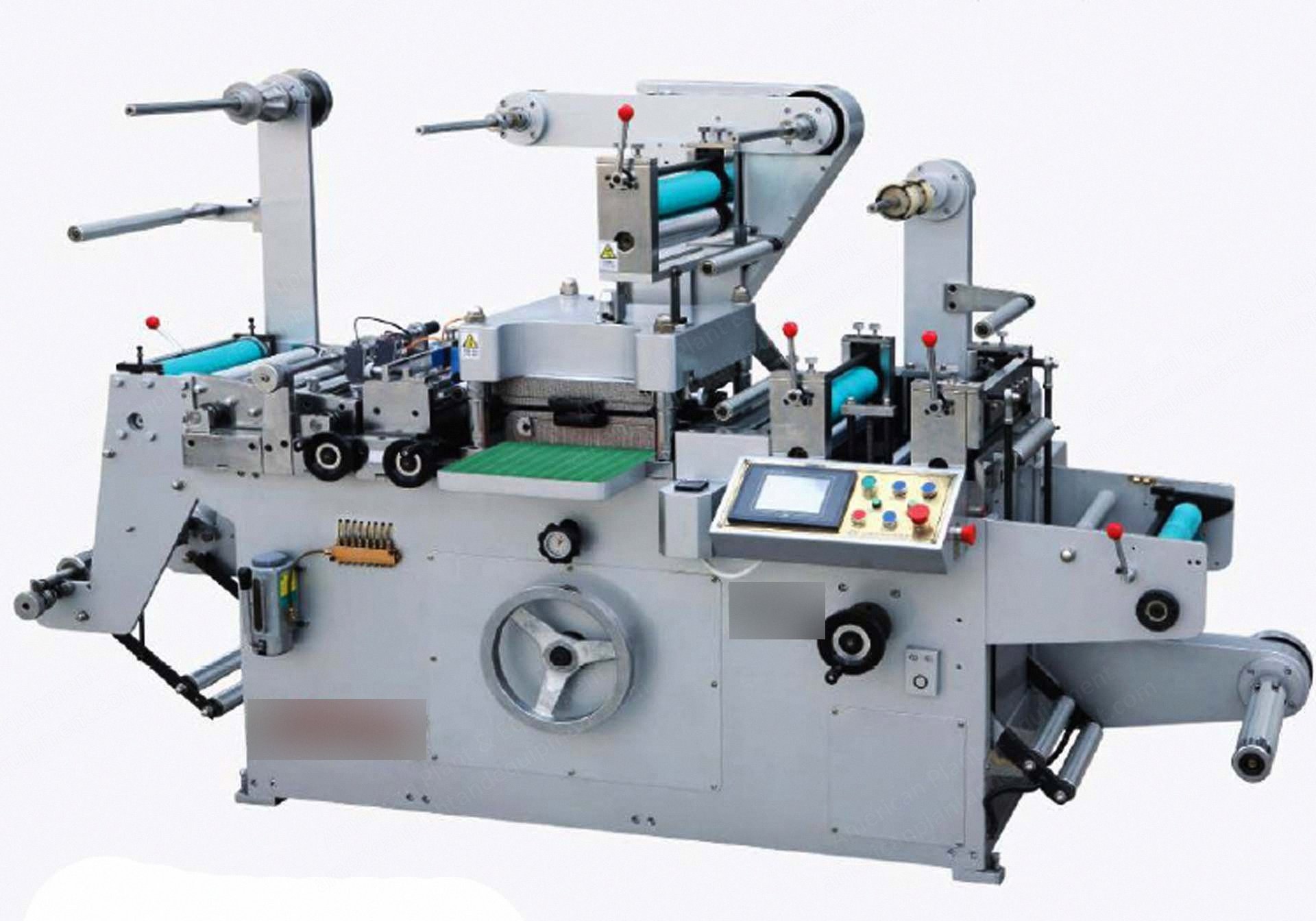

NovaStar, DT142, Automatic Adhesive Label Die-Cutting Machine, Max. Web Width 320mm, Max. Die Cutting Width 300mm, 2600x950x1400mm
Scroll to zoom
100%
Description
Overview
This machine uses a flat die to perform high-accuracy mould cutting, tow material cutting, and slicing, all controlled by a computer.
Both sides of the printing mark and its vertical are accurately followed and reserved by three photoelectric eyes.
Mould cutting, charging, abolishing, slicing, or winding for use with an auto-sticking machine is completed in one pass.
Suitable for paper glue trade marks, acron membrane trade marks, and laser false mould trade mark cutting.
This model is an auxiliary for flexible edition printers, intaglio printers, and anti-counterfeit trade mark mould cutters, and is ideal for print factories.
Specifications
Model: DT142
Cutting speed: 20 to 125 ft/min
Maximum unwinding diameter: 450 mm
Maximum web width: DT142 mm
Maximum die cutting width: 300 mm
Maximum die cutting length: 290 mm
Orientation accuracy: ±0.15 mm
Total power: 3 kW
Power voltage: 220 V ± 10%
Condition
Machine weight: approximately 1500 kg
Overall dimensions: 2600 x 950 x 1400 mm
