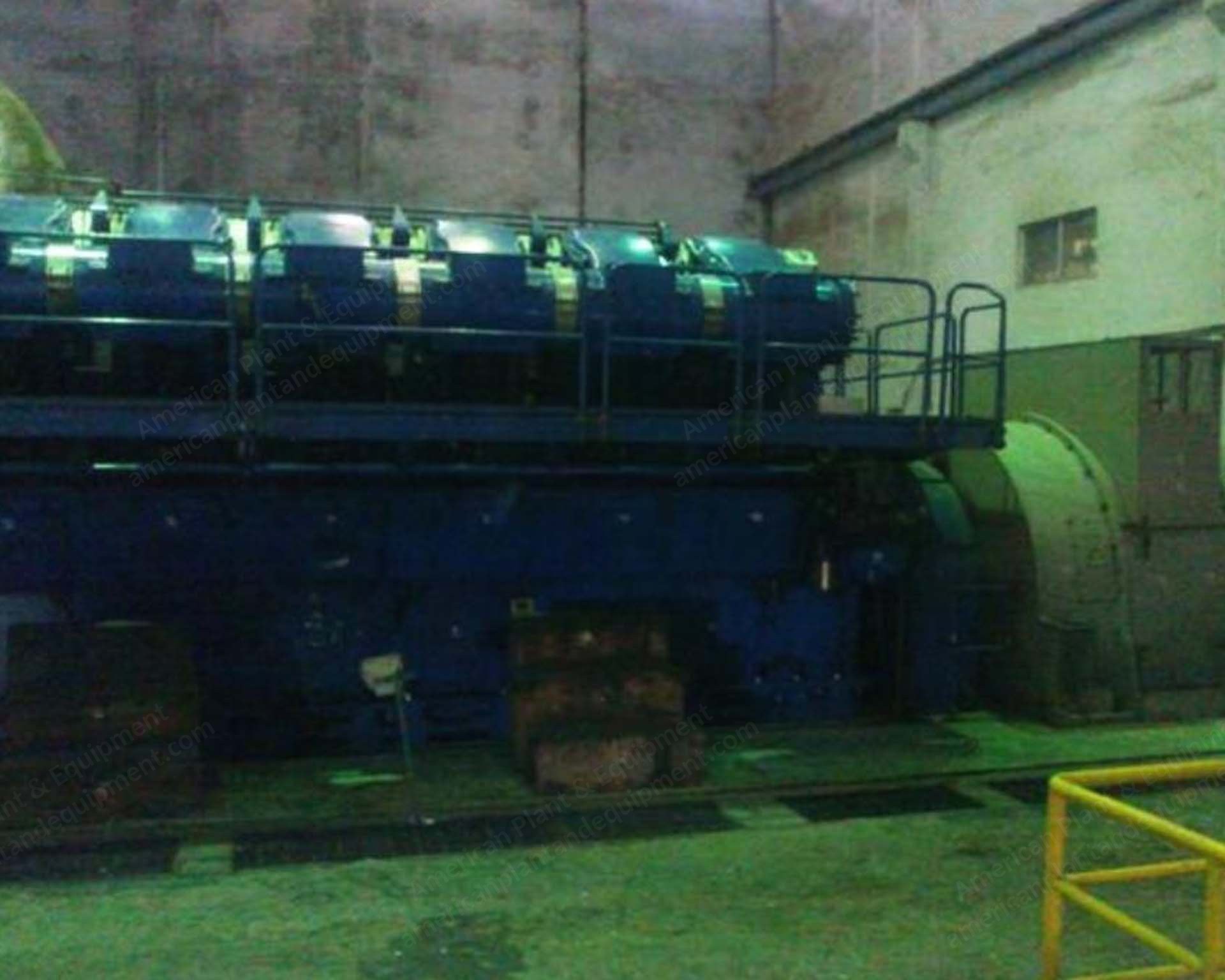

MAN B&W, 12V48/60, 1999, 37 MW HFO Fired Power Plant, 3x 12.35 MW, 500 RPM, 11000V

MAN B&W, 12V48/60, 1999, 37 MW HFO Fired Power Plant, 3x 12.35 MW, 500 RPM, 11000V

Description

  1. Overview
    1. Hfo fired power plant
    2. 3 x 12.35 mw each

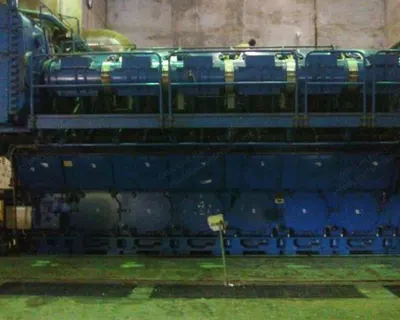

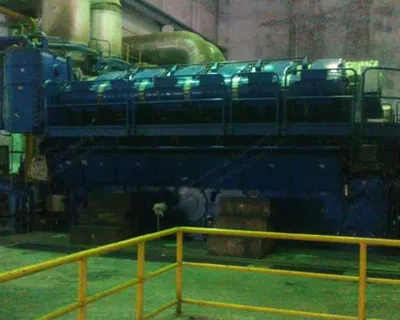

  2. Engine Details
    1. Make: Man B&W diesel Augsberg, Germany
    2. Capacity: 12350 kW each
    3. Year: 1999 each
    4. Speed: 500 rpm each
    5. Type: 12V48/60 each
    6. Number of cylinders: 12 each
    7. Cylinder bore diameter: 480 mm each
    8. Cylinder stroke length: 60 each
    9. Operating fuel: Hfo each
    10. Hfo consumption: 225 grams/kwh each
    11. Lube oil consumption: 0.7 grams/kwh each

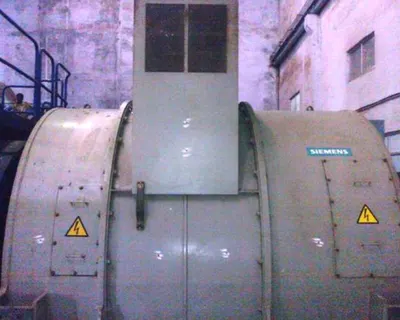

  3. Alternator Details
    1. Make: Seimens
    2. Type: IDK 5143-3BE06-Z each
    3. Year: 1998 each
    4. Capacity: 15340 kva each
    5. Voltage: 11000 V each
    6. Amps: 805 A each
    7. Speed: 500 rpm each
    8. Duty type: S1 each
    9. Power factor: 0.8 each
    10. Insulation class: F each
    11. Enclosure: IP 21 each
    12. Cooling: IC 01 each
    13. Excitation voltage: 73 V each
    14. Excitation current: 8.5 A each
  4. Operating History
    1. Engine running hours: 35432 (engine 1), 35914 (engine 2), 35222 (engine 3)
    2. Hours at which last overhaul is done: 27150 each
    3. Number of hours run after last overhaul: 8282 (engine 1), 8764 (engine 2), 8072 (engine 3)
