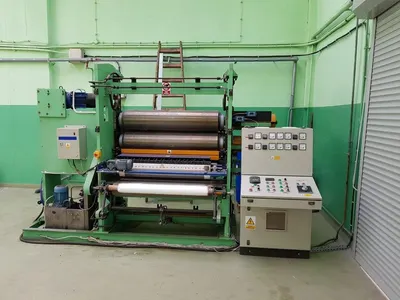

Cenaro, JX9, 2015, 3 Rollers, Working Width 1200mm, Max Temperature 200°C

Cenaro, JX9, 2015, 3 Rollers, Working Width 1200mm, Max Temperature 200°C

Description

  1. Overview
    1. Calender is designed for finishing of nonwovens with a basis weight of 20 g/m² to 300 g/m².

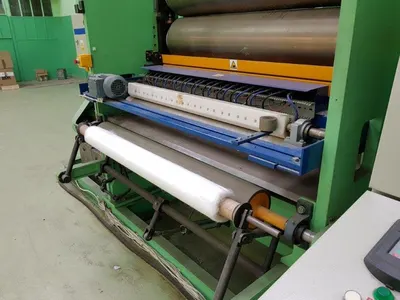

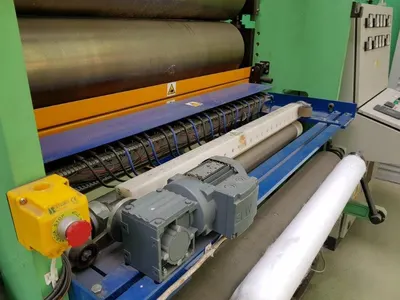

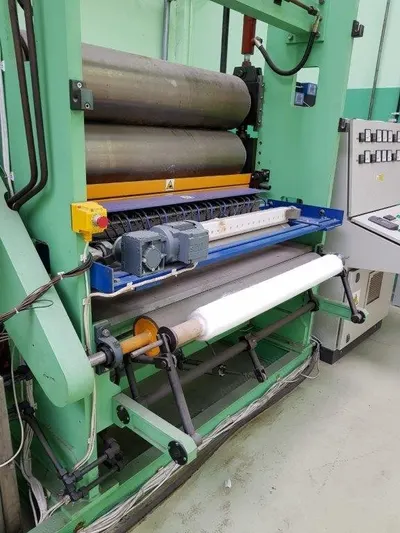

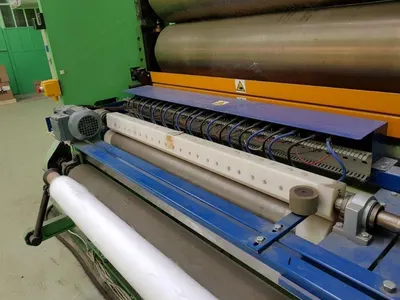

    2. Calender has a winding device equipped with a metering sensor measuring the length of the web in the web.
    3. Largest diameter of the filament is 400 mm.
  2. Specifications
    1. Working width: 1200 mm.

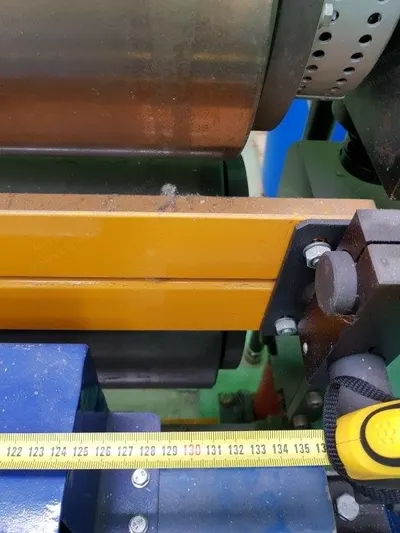

    2. Rollers width: 1300 mm.

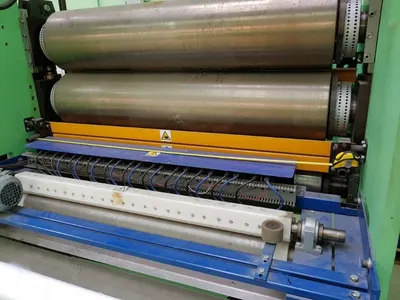

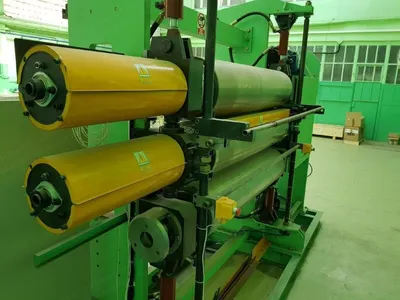

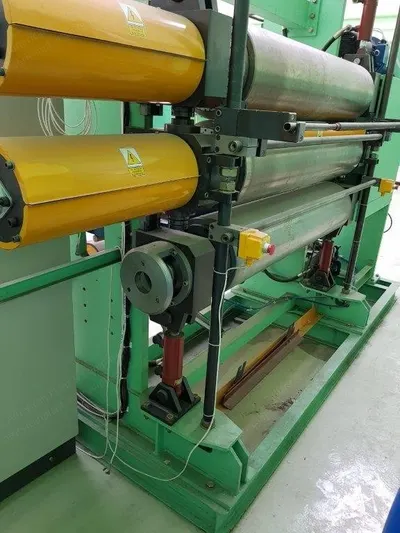

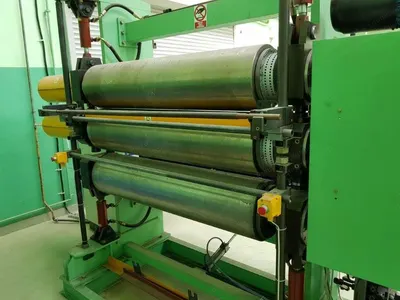

    3. 3 steel rollers with diameter: 300 mm each.
    4. Temperature of rollers: max 200 °C.
    5. Rollers pressure: max 50 kN/m (50 kg/cm).
    6. Speed: 0.8 to 19 m/min.
    7. Total power installed in calender is 21.8 kW.

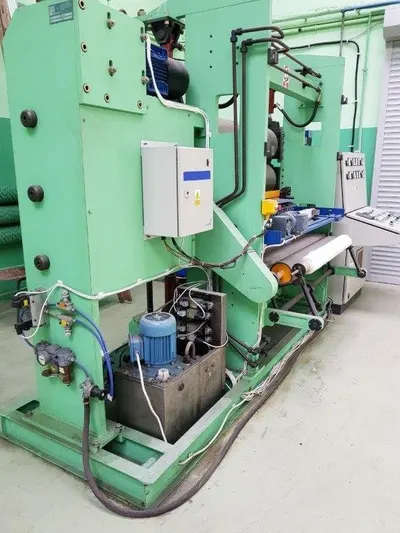

  3. Hydraulic System

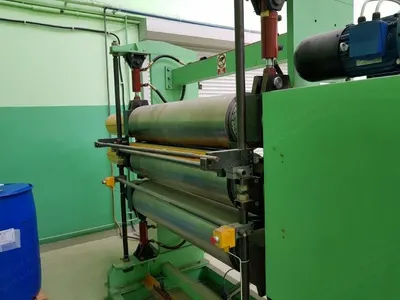

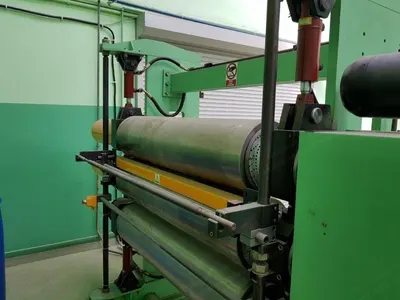

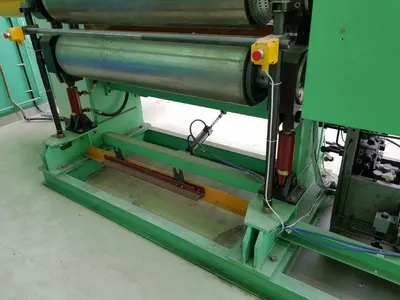

    1. Hydraulic pressure of the rollers using 4 cylinders (two on the upper shaft and the lower shaft, independent control).
    2. Cylinder diameter: 63 mm.
    3. Max. working pressure in hydraulic system: 12 MPa.

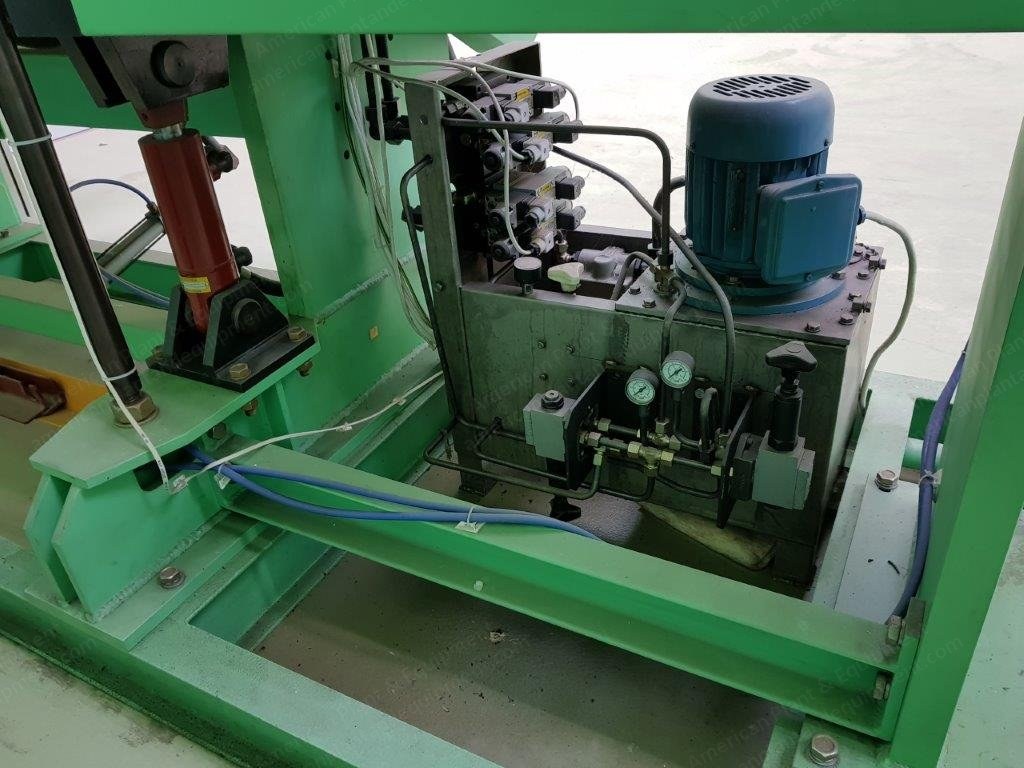

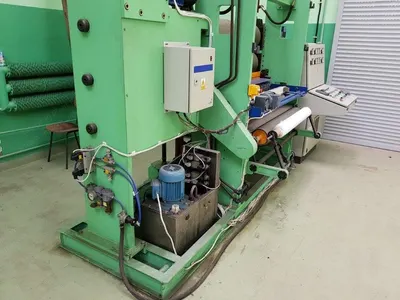

    4. Hydraulic cylinders powered by HL-46 hydraulic power (driven by an electric motor).
  4. Heating System
    1. Heating of shaft I and shaft II is three-zone; the lower shaft is not heated.
    2. Heating power of the shaft main zone: 7.2 kW.
    3. Heating power of each of the two side zones: 1.2 kW.
    4. Total heating power of both shafts: 19.2 kW.
  5. Control and Electrical

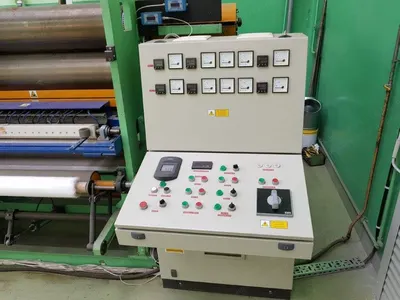

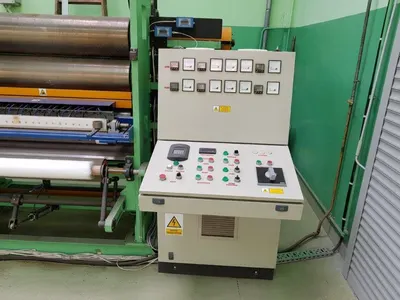

    1. Calender has a control cabinet with operator panel.

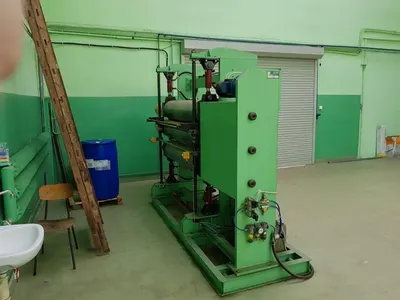

  6. Dimensions
    1. External width: 3335 mm (with 3665 mm control cabinet).
    2. External length: 1340 mm (with control cabinet 1645 mm).
    3. Calender height: 2295 mm.
