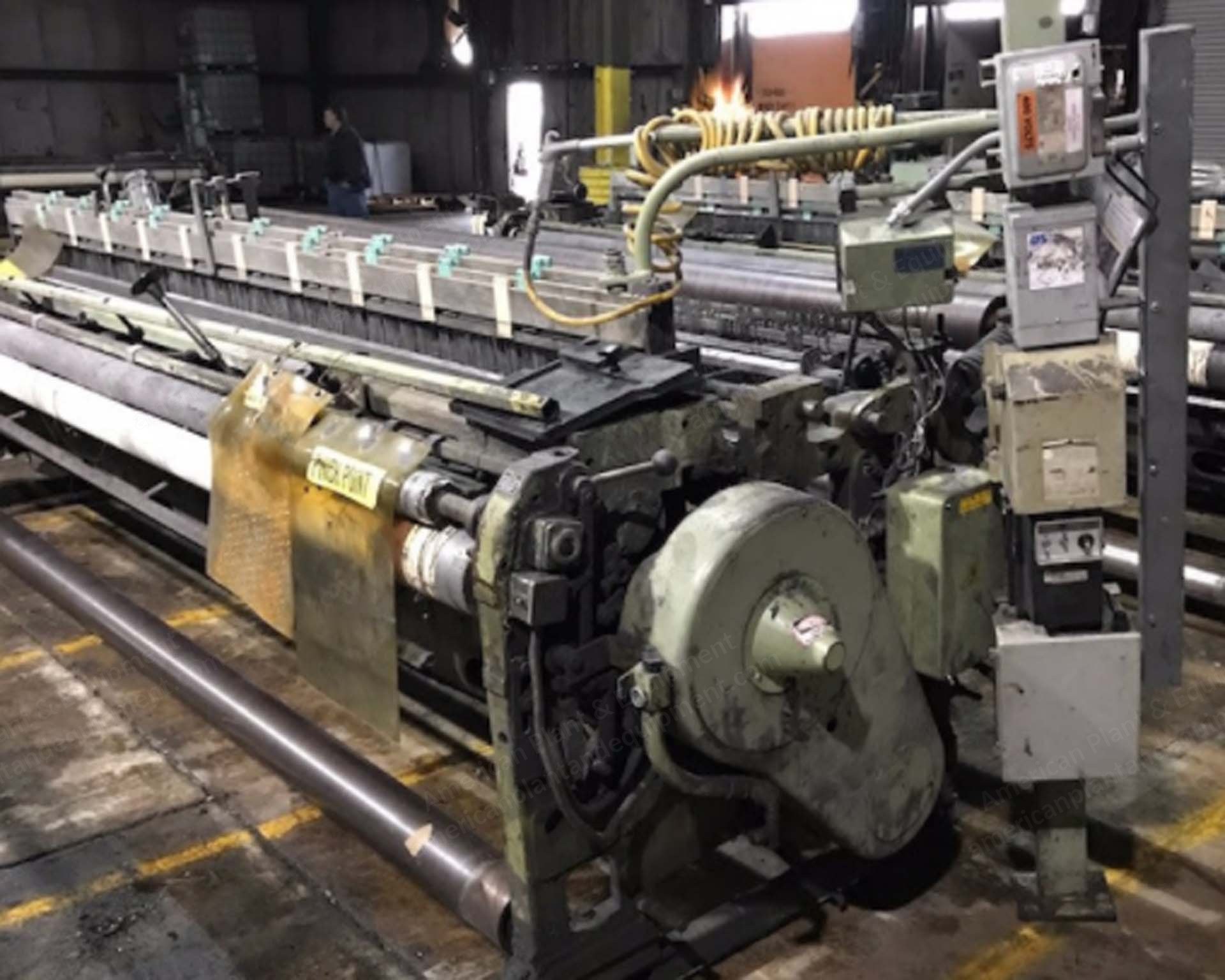

Sulzer, TW11 153 ES105 E10D1, 153" Working Width, Single Color, Cam Motion

Sulzer, TW11 153 ES105 E10D1, 153" Working Width, Single Color, Cam Motion Sold

Description

  1. Overview
    1. Sulzer looms
    2. Model: TW11 153 ES105 E10D1
    3. Weaving pp with P7100 upgrade kit for higher production speeds
    4. Single color weft insertion

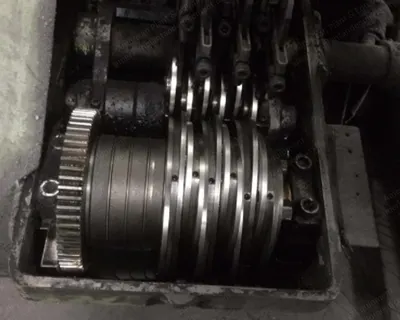

    5. E10 cam box with 6 cams installed
    6. 1 x 1 zero degree
  2. Specifications
    1. 6 harness frames
    2. 13” drawtex C type heddles
    3. 6 bank electric stop motion for warp with 5 drop wire bars installed
    4. Heddles and droppers as fitted
    5. Loepfe electronic weft stop motion
    6. Automatic oiling units
    7. 1 beam with 8” diameter barrel
    8. Steel heads heavy duty 940 mm and 1000 mm diameter
    9. 10” beam barrels available for special request
    10. P7100 braking system
    11. P7100 upgrade kit for higher speeds
    12. 1 gear box driven 2 roll surface wind takes with gear box driven press roll for tight packed rolls
