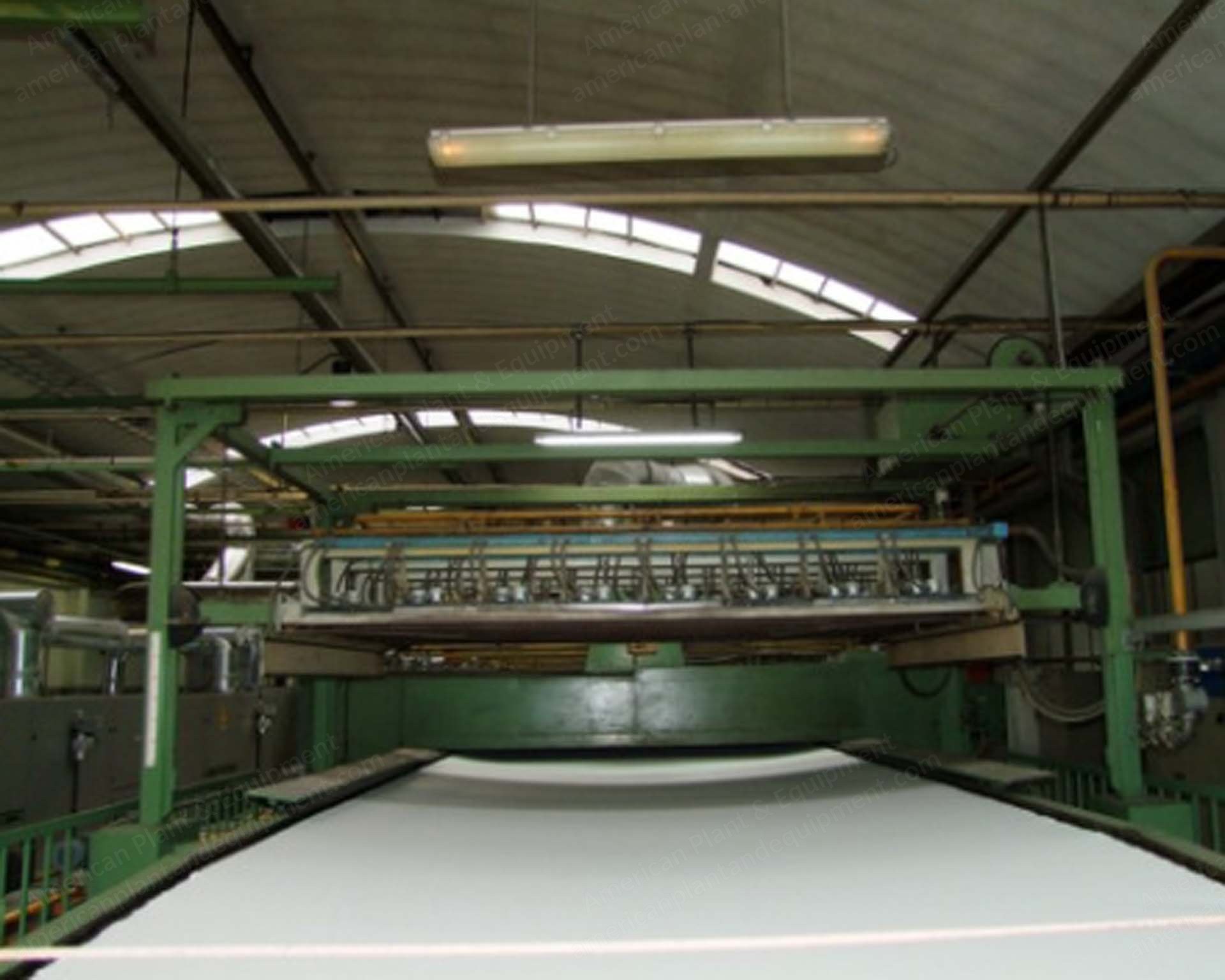

Santa Lucia, Stenter Machine, 1980, 3200mm Working Width, 8 Chambers, Gas Heated

Santa Lucia, Stenter Machine, 1980, 3200mm Working Width, 8 Chambers, Gas Heated

Description

  1. Overview
    1. For woven fabrics
    2. Useful working width: 3200 mm
    3. 8 chambers, gas heated
    4. 16 gas burners
    5. 16 electrofans
    6. Length of the introduction field: about 8 meters
    7. Infrared system, heated by gas, length of 2.50 meters for the whole width of the machine, installed above the introduction field before the entry of the fabric into the oven
  2. Electrical System
    1. Electric plant on the machine, renewed as new in the year 2000
    2. Control of the set temperatures managed by PLC

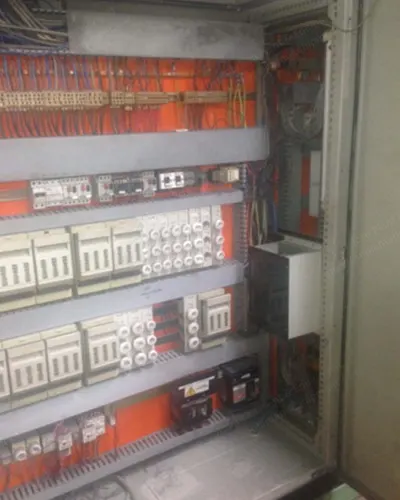

    3. Electric control board on the machine with control panel for the managing of all the operations, positioned on the right of the machine entry
    4. Each machine is equipped with a small electric board to manage the fans, burners, etc.
  3. Exhaust and Suction
    1. 2 exhausters for the fume ejection
    2. 1 suctioning hood installed on the delivery side of the oven complete with electrofan

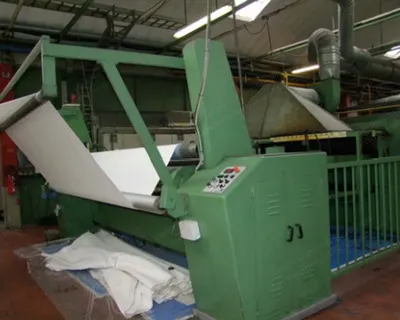

  4. Delivery
    1. Delivery of the fabric with fabric storage with non-stop function complete with rolling unit
