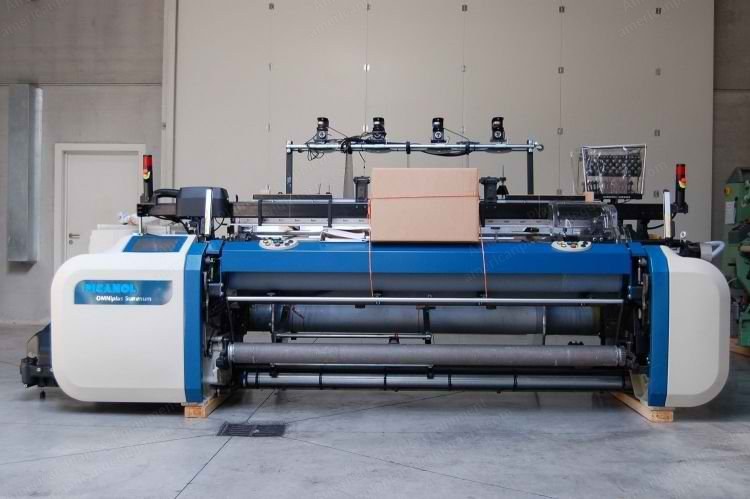

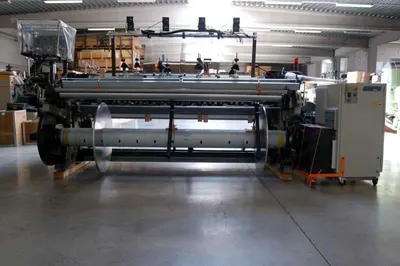

Picanol, Summum-4-P-220, 2016, Air Jet Loom, 2200mm Working Width, 4 Colors, Staubli Cam Motion

Picanol, Summum-4-P-220, 2016, Air Jet Loom, 2200mm Working Width, 4 Colors, Staubli Cam Motion

Description

  1. Overview
    1. Picanol air jet weaving loom
    2. Brand: Picanol
    3. Type: Summum-4-P-220
    4. Year: 2016
    5. Working width: 2200 mm
    6. 4 weft colors
  2. Specifications

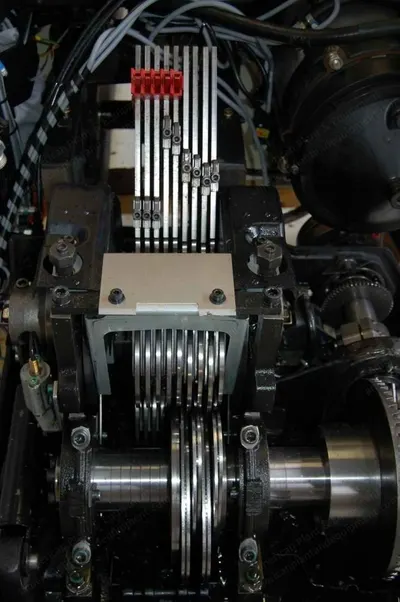

    1. Staubli cam bow type 1781A with 9 levers installed, can be increased to max. 11 levers
    2. 1 beam diameter 800 mm
    3. 1 cloth roller
    4. 2 warp tension rolls
    5. Easing-motion
    6. Sumo motor
    7. 4 weft accumulators Iro Blue 22 Easy Set with balloon breakers and internal PFT
    8. PRA
    9. Creel for 4 bobbins with 4 Iro TFE-8 detections
    10. Weft stand
    11. Blue platform (LDEC)
    12. Groz-Beckert warp detection with 6 warp stop motion bars (R and L detection)
    13. R and L leno-devices (driven by electronic step-motors)
    14. Foreseen for Elsy but without
    15. LED light bar
    16. 4 heald frames DRC30 GTP Hybrid 158 type “13” J
    17. Touchscreen
