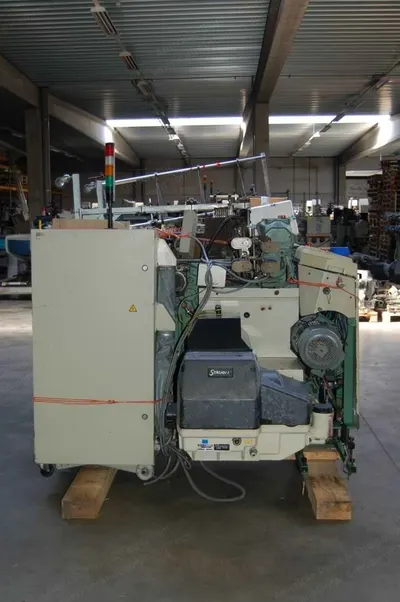

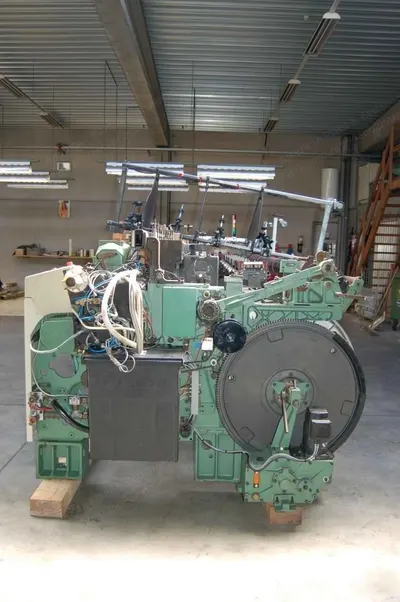

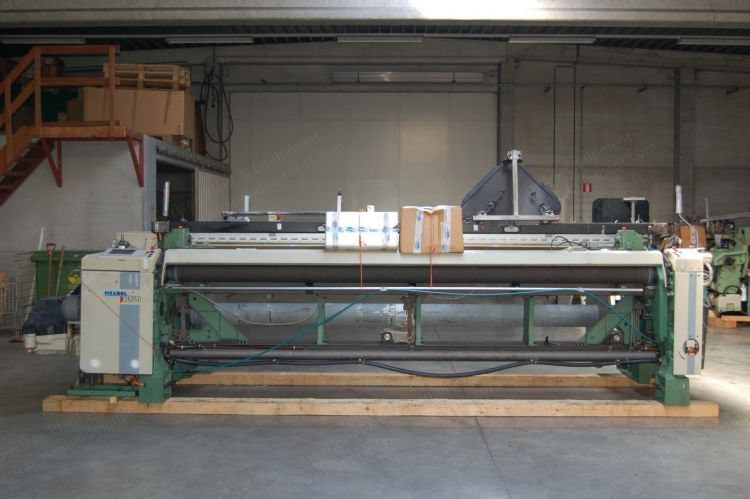

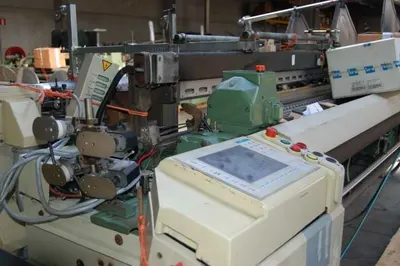

Picanol, Omni-4-R-380, 1997, Air Jet Loom, 3800mm Working Width, 4 Colors, Staubli 2670 Dobby

Picanol, Omni-4-R-380, 1997, Air Jet Loom, 3800mm Working Width, 4 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Picanol air jet looms
    2. Brand: Picanol
    3. Type: Omni-4-R-380
    4. Year: 1997
    5. Working width: 3800 mm
    6. 4 colors
  2. Specifications
    1. Electronic Staubli dobby type 2670 with 16 levers installed
    2. 2 weft accumulators 1131c
    3. 1 warp beam diameter 1000 mm
    4. Pre-equipped for batching motion but without batching motion

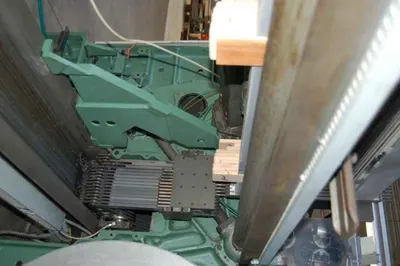

    5. 10 heald frames Grobextra Alfix 11 in J
    6. 5 warp stop motion bars (3400 mm)
    7. Tucking-in left, central and right
