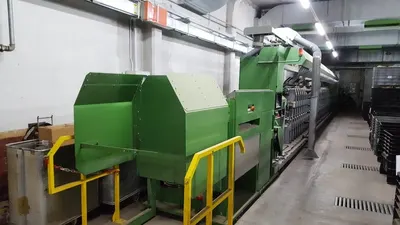

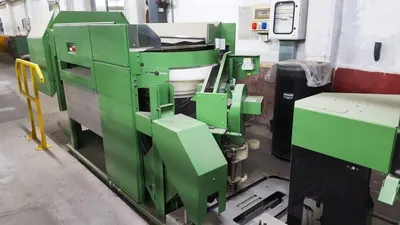

Schlafhorst, Autoconer 338 Type D, 2000, 40 Heads, 153mm Bobbin Length, Loepfe TK 930 H Yarn Clearer

Schlafhorst, Autoconer 338 Type D, 2000, 40 Heads, 153mm Bobbin Length, Loepfe TK 930 H Yarn Clearer

Description

  1. Overview

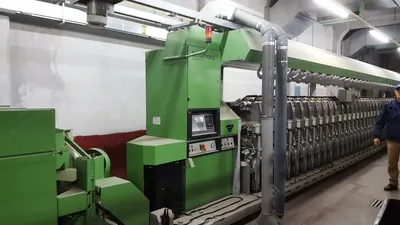

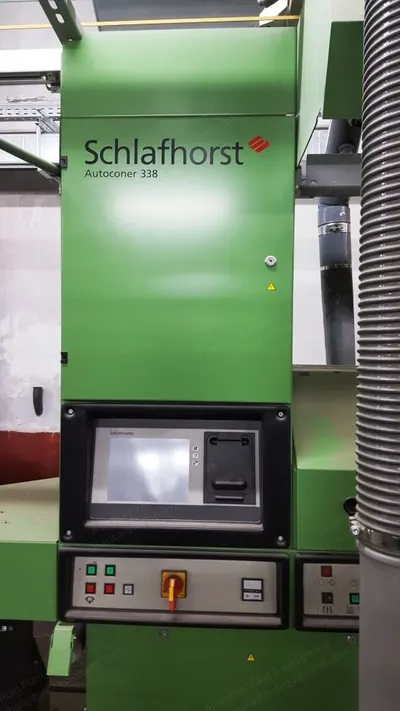

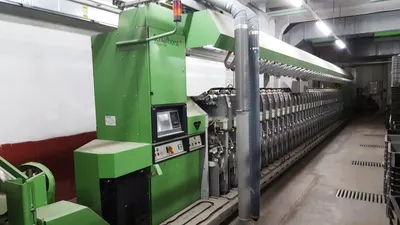

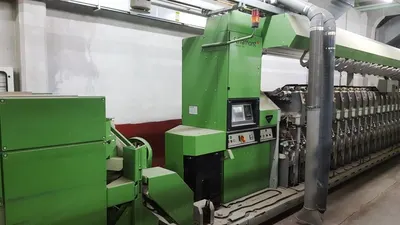

    1. Schlafhorst Autoconer 338 type D winder

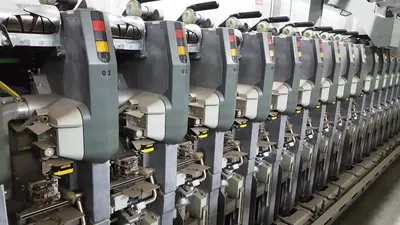

    2. 40 heads
    3. Year: 2000
    4. Machine left D - typ 1XFRF
  2. Specifications
    1. Output truncated cone bobbin length 153 mm (6)

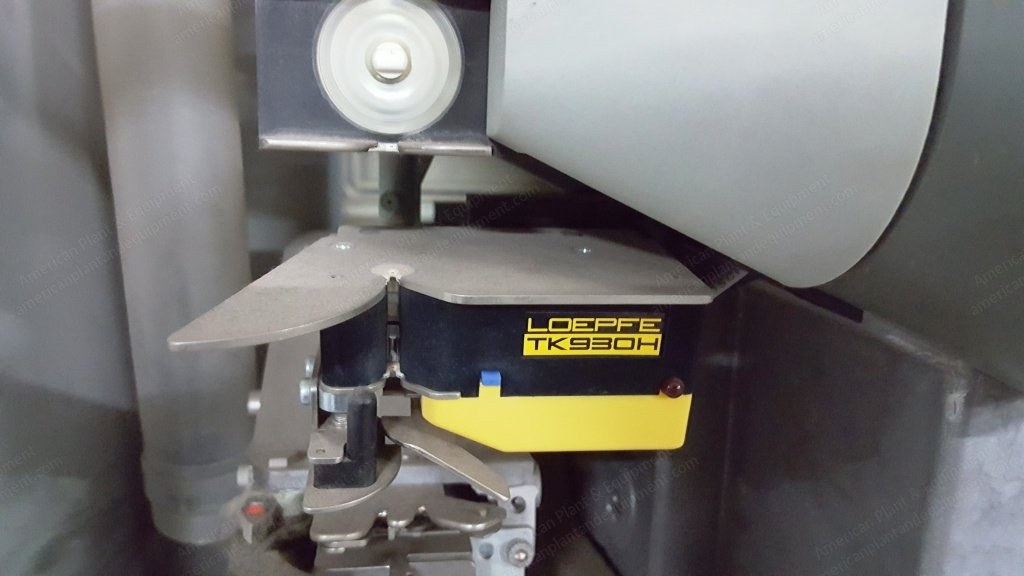

    2. Conical 4°20 yarn clearer type Loepfe Yarn/Master TK 930 H
    3. Knotting device type Twinsplicer motorized positive waxing disk device
    4. Speed from 250 to 2,000 m/min
    5. Possibility bobbins length setting from 500 to 650,000 meters
    6. Correction diameter bobbins from 40 to 326 mm
    7. Speed winding and thread tension adjustment speed
    8. Automatic bobbins change with or without reserve option
    9. Control number of reserve turns
    10. Adapter no. 1
    11. Transport capacity min. 1-30 maximum 55 spindles
    12. Double preparation cops: KVB preparation
    13. RVB not empty cops preparation
