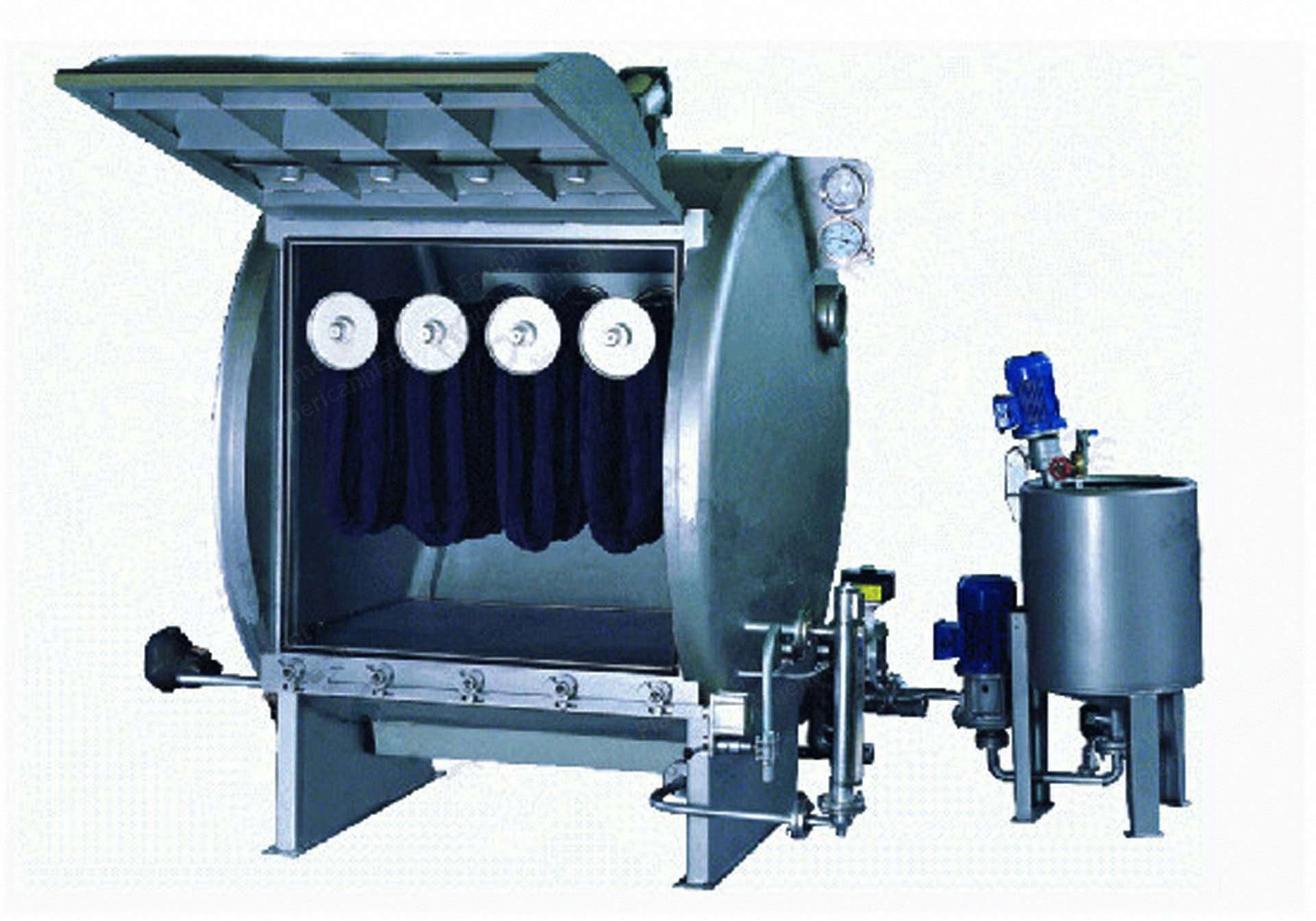

NovaStar, DG505, Hank Spray Machine, 140C Max Temp, 4 to 24 Shafts (New)

NovaStar, DG505, Hank Spray Machine, 140C Max Temp, 4 to 24 Shafts

Description

  1. Overview
    1. Model 24
  2. Specifications
    1. Design temperature: 145 °C
    2. Max working temperature: 140 °C
    3. Design pressure: 0.3 MPa
    4. Max working pressure: 0.28 MPa
    5. Rate of temperature rise: about 3 to 5 °C/min
    6. Rate of temperature down: about 2 to 4 °C/min
    7. Hank yarn working length: 1200 m
    8. Suitable length of hank: 500 mm to 810 mm
