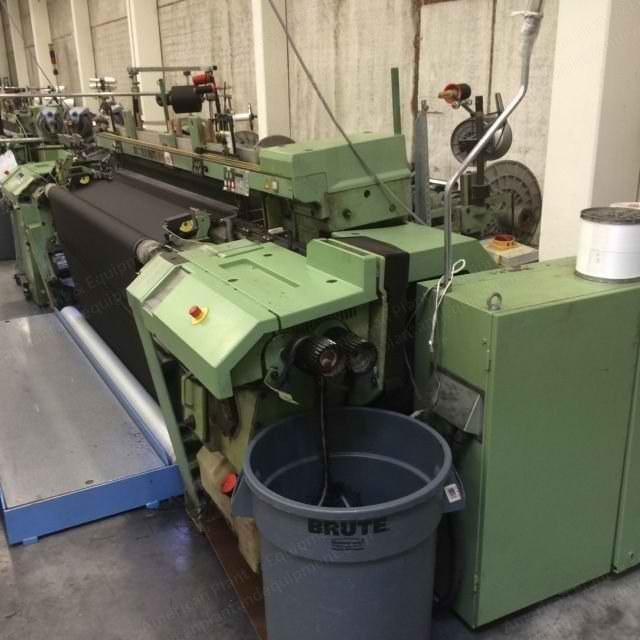

Sulzer Ruti, G6200, 1995, Rapier Looms, Working Width 2200mm, 6 Colors, Staubli Dobby

Sulzer Ruti, G6200, 1995, Rapier Looms, Working Width 2200mm, 6 Colors, Staubli Dobby

Description

  1. Overview
    1. Brand: Sulzer Ruti
    2. Type: G6200
    3. Category: Sulzer Ruti rapier looms
    4. Year: 1995 (one loom from 1996)
    5. Working width: 2200 mm
    6. 6 colors
  2. Specifications
    1. One loom (1996) has electronic Staubli dobby type 2672, capacity 28 heald frames but 16 levers installed
    2. Two looms (1995) have electronic Staubli dobby type 2662 RS, capacity 16 heald frames and 16 levers installed
    3. Each equipped with: ETU, ELO, 4 weft accumulators Roj Quarz HT, Dart, 5 warp stop motion bars
    4. 4000 heddles and droppers
    5. 10 heald frames
    6. 12 connections for the frames
    7. 5 warp beams
    8. 5 cloth rollers
