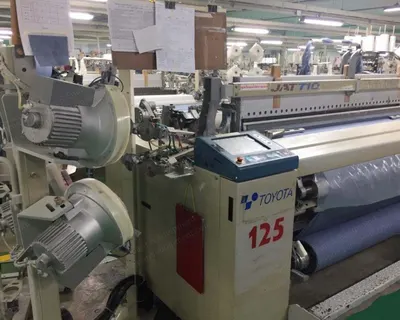

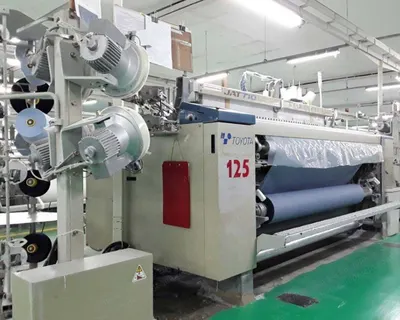

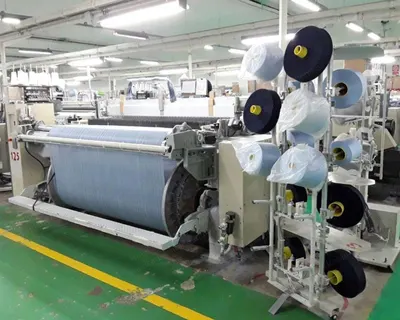

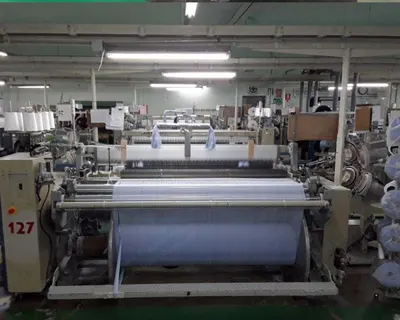

Toyoda, JA4S-190TP-EF-T710, 2006, 1900mm Reed Space, 4 Colors, Staubli Cam 1651

Toyoda, JA4S-190TP-EF-T710, 2006, 1900mm Reed Space, 4 Colors, Staubli Cam 1651

Description

  1. Overview

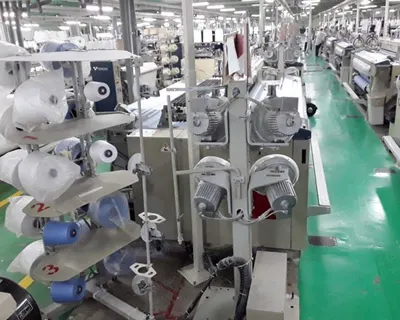

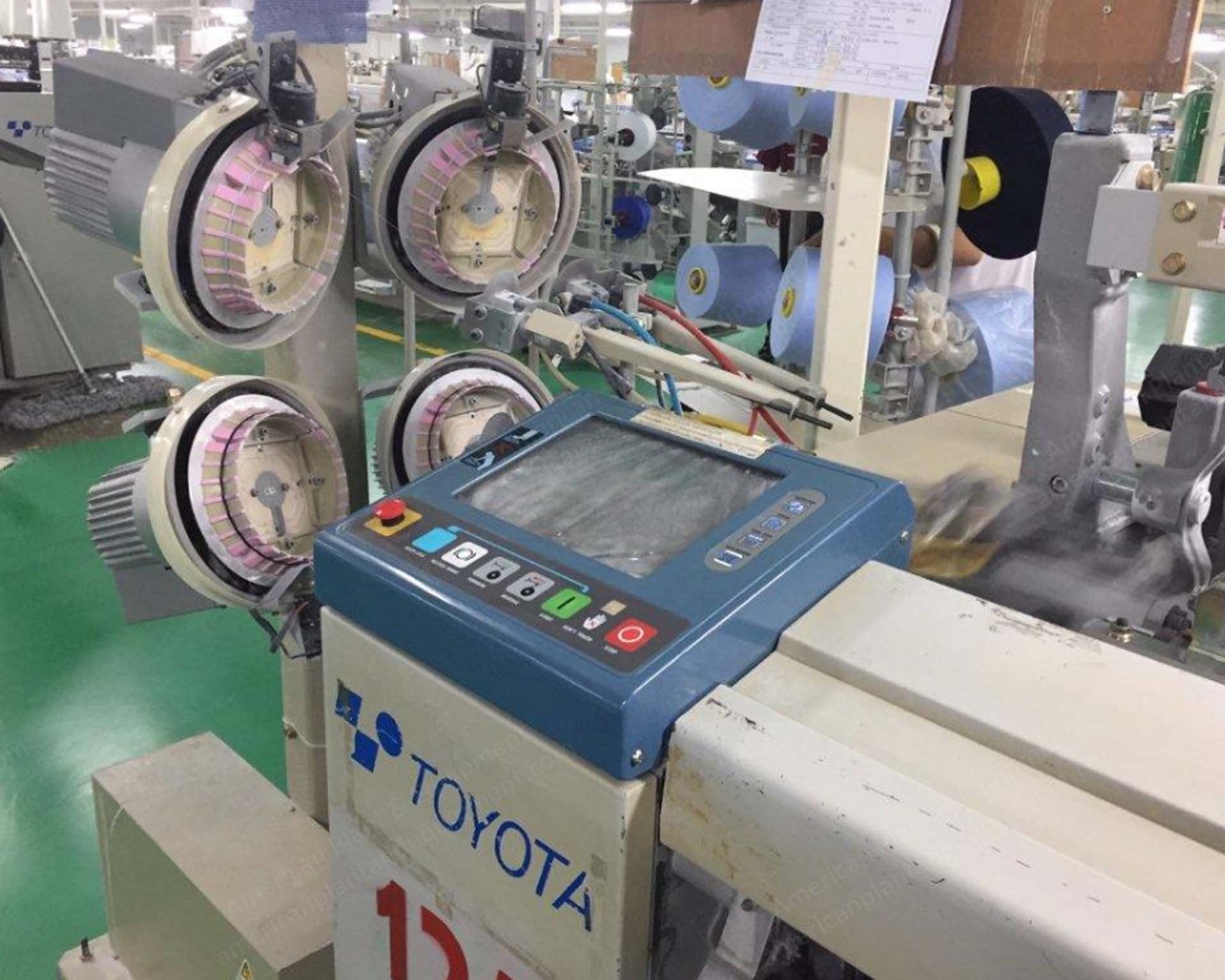

    1. Four electronic drum feeders
    2. Weft insertion 4 colors at-will
    3. With positive Staubli cam 1651 (6 harness drives)
    4. Two machines are with Staubli positive type 1781 cam (6 harness drives)
  2. Main Technical Specifications
    1. Reed space: 1900 mm
    2. Year: 2006
    3. Weft insertion (EDP): 4 colors electronic drum feeders, 4 colors at-will
    4. Tapered sub-nozzle
    5. Lower air pressure and high propulsive main nozzle
    6. New conical tandem nozzle
    7. Cutting blow device
    8. 60 mm short pitch sub-nozzle
    9. Sub-tank with direct connection to solenoid valves
    10. Automatic timing controller (ATC)
    11. Centralized regulator for easy setting
    12. Weaving: for spun weaving
    13. Lower built one piece box type side frames for high-speed operations
    14. Voltage: 380 V / 50 Hz
    15. Drive: super-fast start-up motor, 5.0 kW
    16. Automatic compensation for fixed-position stops
    17. Slow motion by individual inverter on each machine
  3. Take-Up System
    1. Electronic take-up motion
    2. Surface roller rubber x 2 press rollers (felt)
    3. On-loom take-up motion for max. 520 mm cloth diameter
  4. Selvedge Motion
    1. Left-right electric selvedge motion (ES) for high-speed
  5. Beating
    1. Two-sided crank drive with oil bath
  6. Let-Off
    1. Electronic let-off motion, positive easing type, double back rollers
    2. Yarn beam 800 mm flange diameter
  7. Shedding

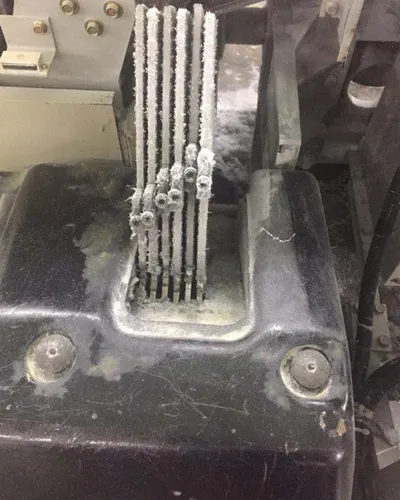

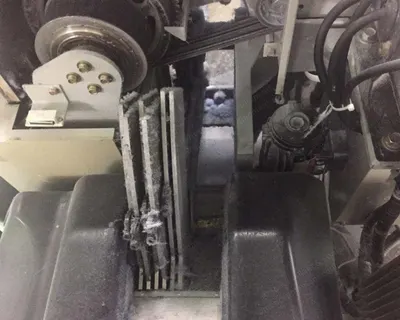

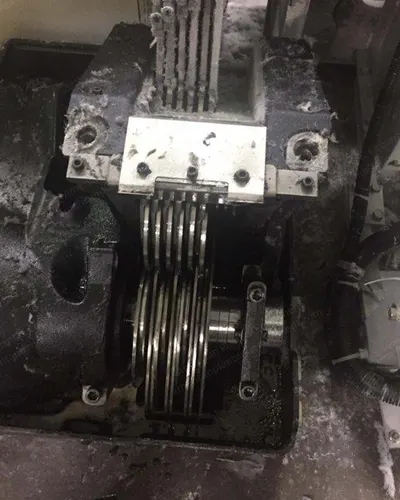

    1. Staubli type 1651 positive cam motion, 6 shafts
  8. Machine Controls
    1. New color function panels
    2. Main control computer with 32-bit / 1.33 MHz CPU
    3. Automatic initial condition setting (ICS)
    4. Intelligent filling controller (IFC)
    5. Special status signal function
    6. Weavers monitor
    7. Memory function and card system
    8. Timing checker with graphic display
    9. 24 hour and weekly efficiency graphic display and downtime cause display
    10. Error message with trouble-shooting, etc.
    11. Automatic pick finder
  9. Lubrication
    1. Oil bath lubrication system for main parts, grease lubrication
  10. Stop Mark Prevention
    1. Multi function for stop mark prevention
    2. Selectable main motor start-up method
    3. Selectable machine stop/start angle
    4. Automatic let-off adjustment
    5. Fell forward device
    6. One shot device
  11. Included Per Loom
    1. Warp beam (800 mm) on 10 sets: 1.5 pcs per loom
    2. Warp beam (930 mm) on 42 sets: 1.5 pcs per loom
    3. Cloth roller: 1.5 pcs per loom
    4. Heald frame: 4 pcs per loom
    5. Droppers and heddles: 7,000 pcs per loom
    6. Reed: 1 pc
