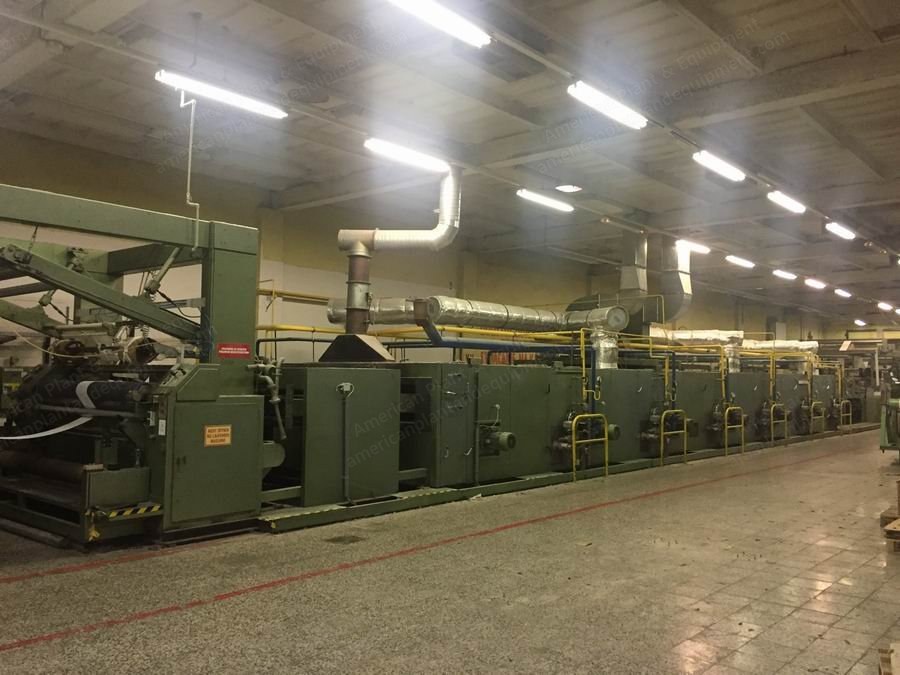

Bruckner, Stenter, 1980, 2200mm Working Width, 6 Chambers, Gas Heated

Bruckner, Stenter, 1980, 2200mm Working Width, 6 Chambers, Gas Heated

Description

  1. Overview
    1. Bruckner stenter for woven and knitting fabrics
    2. Year: 1980
    3. Working width: 2200 mm
  2. Inlet Section
    1. 1 inlet frame of steel profile frame construction
    2. 1 swivel clamp
    3. 1 scaffold with 1 guide roller
    4. 1 pendulum roller
    5. 2 guided tours
    6. 1 guide roller
  3. Foulard and Dye Application
    1. 1 2-reel foulard, factory Kusters
    2. Various guide rollers
    3. 1 stainless steel tank
    4. 1 drive via direct current geared motor
    5. 1 stainless steel mixing bowl with agitator
    6. Including piping
  4. Product Transfer and Straightening
    1. 1 complete product transfer stand with guide rollers, pendulum rollers, etc.
    2. 1 straightening system, Mahlo, year 1998, type RFMC-10P, with control, factory Orthomat

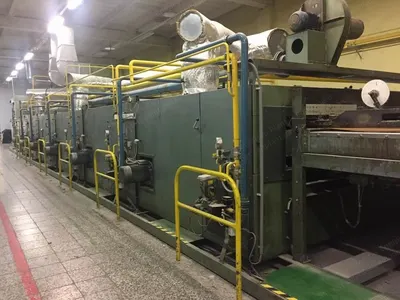

  5. Clamping Frame
    1. 1 clamping frame, Brückner, WOB 2400 mm, max. width of fabric 2200 mm
    2. 1 enema with clip chain, total length approx. 6 m
    3. 6 fields, total length 18 m
    4. In each case 2 gas burners and 2 circulating air fans
    5. 1 complete exhaust pipe for clamping frame with 2 centrifugal fans, 6 suction pads with feed to 2 main channels
    6. 2 exhaust ducts made of galvanized steel sheet, leading over roof
  6. Spout and Extraction
    1. 1 complete spout, with 1 extraction hood and exhaust piping made of folded seam pipe over roof
  7. Outflow and Winding
    1. 1 textometer
    2. Pulling rollers on the outflow clamping frame
    3. 1 goods transfer stand with dancer roller, various guide rollers, rotary tensioner, high scaffold and column winder with 1 arm, pneumatically adjustable
  8. Media Supply and Electrical
    1. Media supply for gas, compressed air, etc.
    2. 1 complete electrical control and control cabinet
    3. Drive technology and cabling, transport, assembly and commissioning
