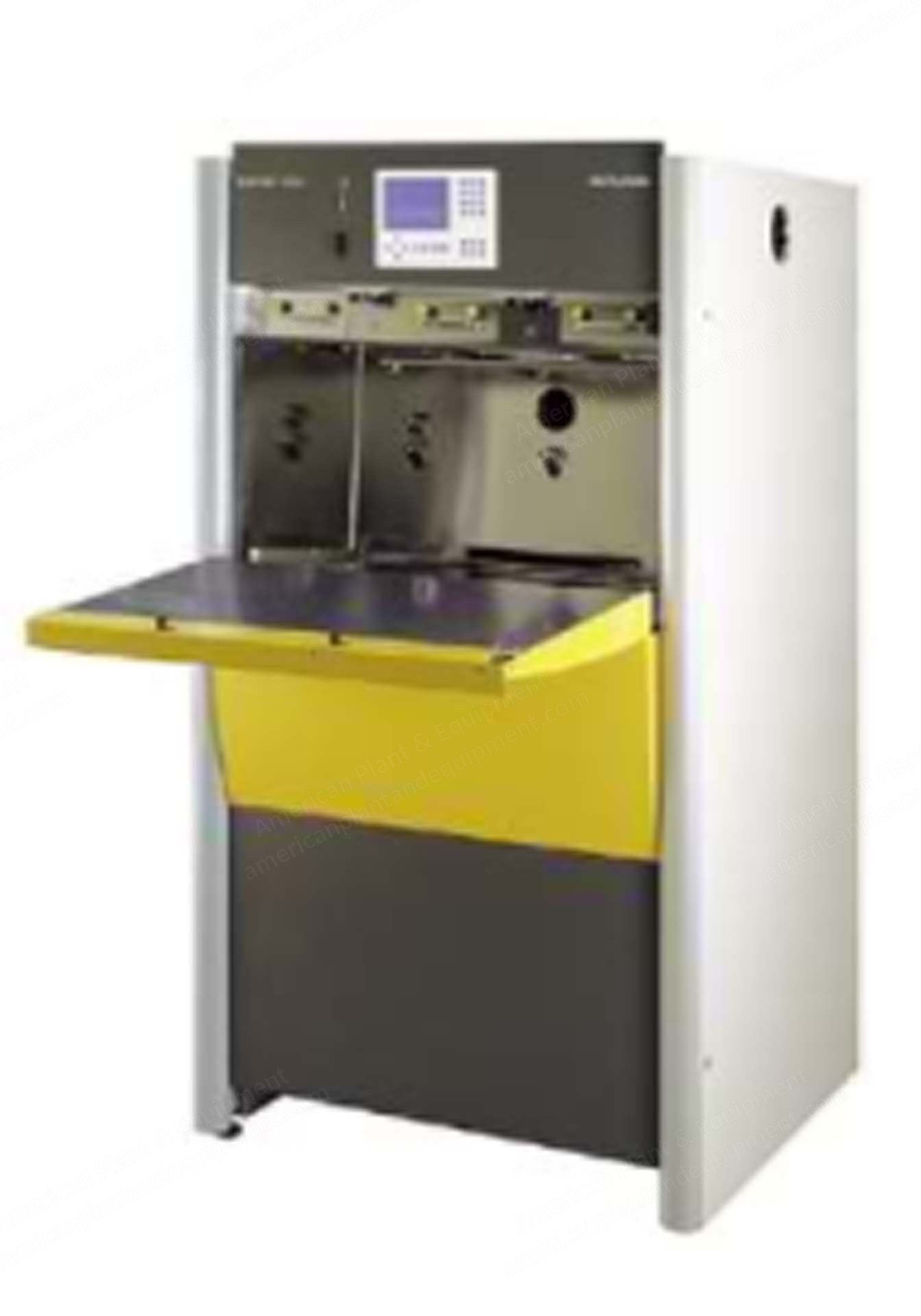

Description Overview Atlas Suntest XXL+ large state-of-the-art xenon flatbed instrument Producer: Atlas Material Testing Solution Year 2011 Specifications 3x 1700 W air-cooled xenon lamps 3000 cm² exposure area Touch screen with colour display to monitor and display test parameters Measurement and control of irradiance 300-400 nm / 340 nm or 420 nm Measurement and control of black standard (BST); black panel optional Measurement and control of chamber temperature Display of diagnostic messages Storage for 10 user-defined test methods Pre-programmed international standard test method Multilingual user interface Control panel tiltable for increased operating comfort Ultrasonic humidification system for humidity control Specimen spray system with integrated 60 L water reservoir Static, horizontal exposure area for flat or 3D specimen Test chamber with 5° slope for optimum spray water drain Access port ca. 3.0 x 2.5 cm for potential use of additional external sensors inside the test chamber Light cassette including non-ageing aluminium reflector, coated quartz filter and slot for additional optical filters Switch-off by radiant exposure, light exposure time or total operating time Advanced auto start functions Data output via memory card or RS 232 Ethernet interface plus Xenotouch add-ons 1, 2, and 3 (remote control, e-mail service, online monitoring) Condition Before commissioning, a service of the device must be carried out and consumables, such as tubes, must be exchanged.
