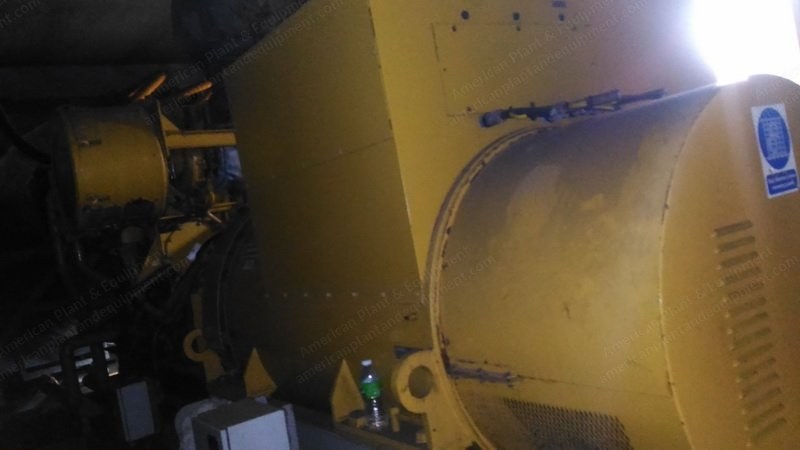

Caterpillar, 3516, 2008, 1603 kW, 60Hz, 1200 RPM, Canopy Type

Caterpillar, 3516, 2008, 1603 kW, 60Hz, 1200 RPM, Canopy Type

Description

  1. Overview
    1. Canopy type unit with 1200 rpm, 60 hz, 450 v.
    2. Running hours are very few, approximately 10 hours as per ship log book because the unit was used on ship as emergency standby.

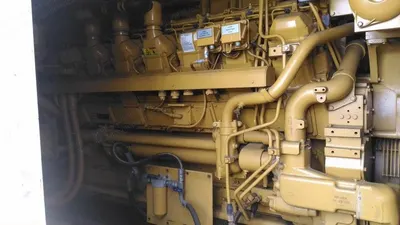

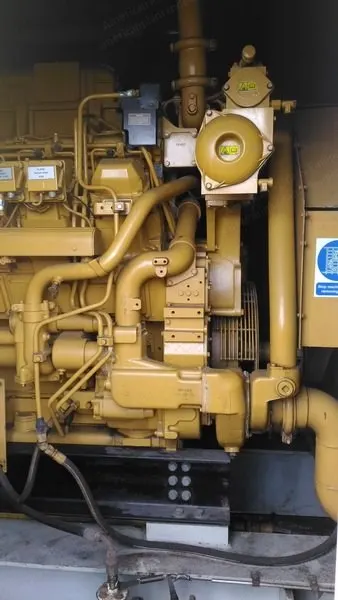

  2. Engine Specifications
    1. Make: Caterpillar
    2. Engine model: 3516
    3. Rotation: ccw
    4. Max altitude: 1400 m
    5. Performance spec: 0k8124
    6. Full load test fuel: 29.1 mm
    7. Fuel timing: 64.34 mm
    8. Power: 1603 kw at 1200 rpm
    9. Bare engine high idle: 1212 rpm
    10. Ecm software: 3142913
    11. Injector: 2693152
    12. Turbo: 3069393

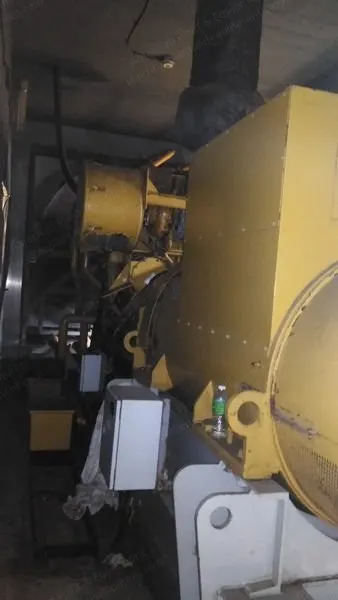

  3. Alternator Specifications
    1. Make: Kato Engineering
    2. Code: 6p6.6-3200hr
    3. Kw: 1833
    4. Kva: 2618.57
    5. Volt: 346 / 600
    6. Amp: 2520
    7. Phase: 3
    8. Pf: 0.7
    9. Wire: six
    10. Hz: 60
    11. Rpm: 1200
    12. Exv: 210
    13. Examp: 7.8
    14. Year: 2008
    15. Rotation: cwfde
    16. Insulation class: f
