STA, Thor FKT, Torrefacto Roasting Machine, 120 to 360 kg/cycle Capacity, 20 min Cycle Time (New)

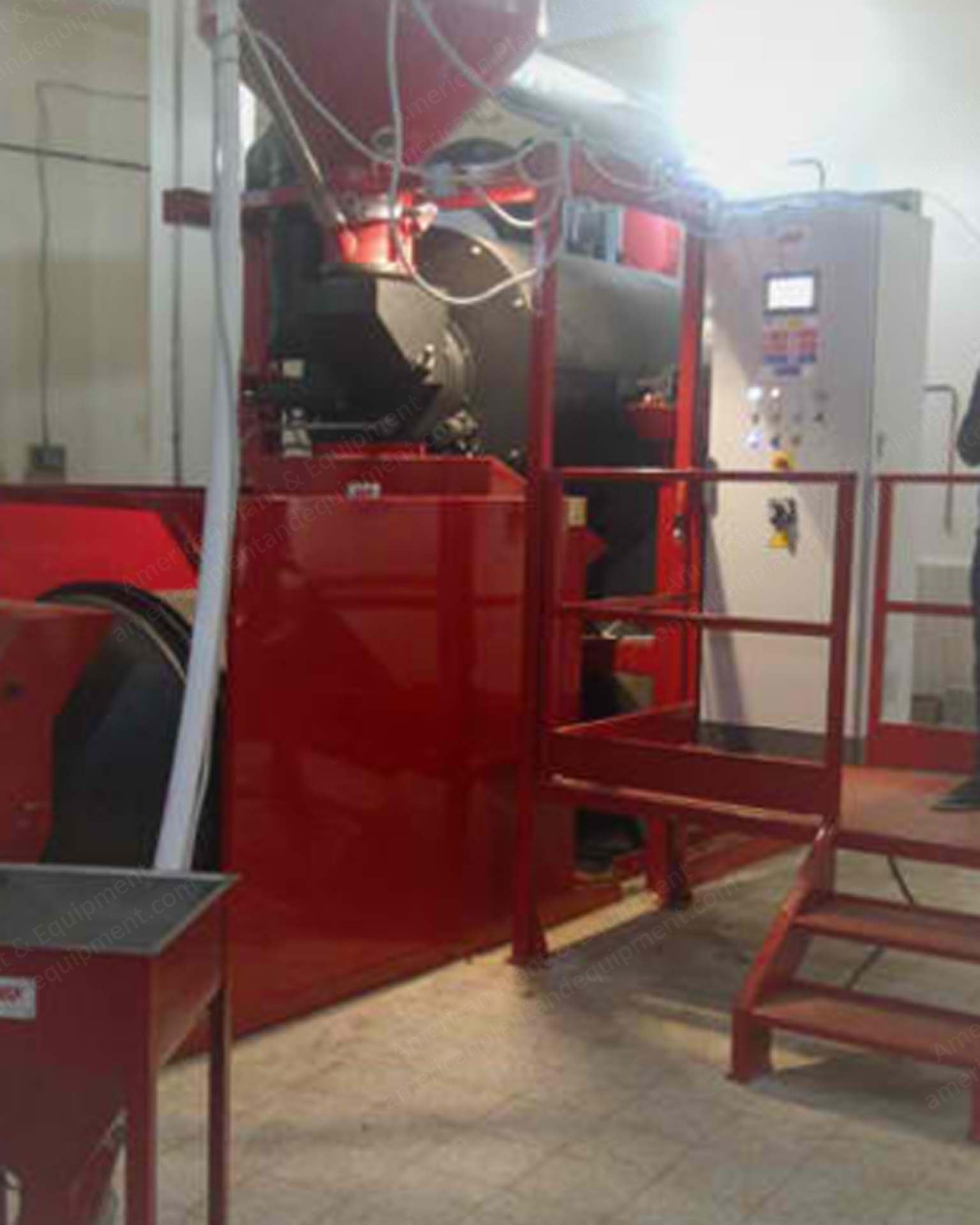

STA, Thor FKT, Torrefacto Roasting Machine, 120 to 360 kg/cycle Capacity, 20 min Cycle Time

Description

  1. Overview

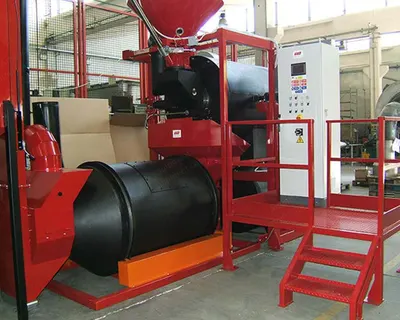

    1. Thor FKT roasting machine for roasted coffee with sugar, designed for high hourly production.
    2. Green coffee achieves homogeneous baking in 20 minutes per cycle.
    3. Operates in automatic or semi-automatic mode.
    4. Equipped with a detached stove built in steel and refractory material.
    5. Burner can be gas (modulating type) or oil with 2/3 flame levels, depending on applications.

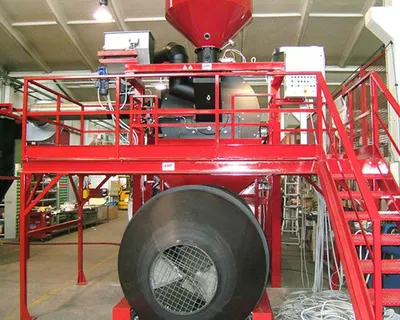

    6. Cooling drum receives product directly from the discharge of the roasting machine.
    7. Internal mixers designed and tested to guarantee optimal cooling of the product.
    8. Product discharge is made by reversing the direction of rotation of the drum.
    9. Cooling drum includes doors for inspection and cleaning.
  2. Additional Functions
    1. Possibility of totally or partially automatic controlling by PLC plus touch screen.
    2. Saving of roasting parameters performed by electromechanical/electropneumatic devices.
    3. PLC with operator interface.
    4. Display to monitor the functions of roasting time and temperature.
    5. Audible and visual alarm on the motor alarm installed and on the burner block.
    6. Color available according to customer specifications.
  3. Optional Components
    1. Electrical connection management system with PC and touch-screen.
    2. Heat recovery unit.
    3. Post-combustor model Kat.
    4. Briquette press.
  4. Specifications
    1. Roaster capacity: 120 kg/cycle (Thor FKT120 MB), 240 kg/cycle (Thor FKT 240 MB), 360 kg/cycle (Thor FKT 360 MB).
    2. Indicative roasting cycle: 20 minutes for all models.
    3. Production per hour (raw coffee): 480 kg/h (Thor FKT120 MB), 720 kg/h (Thor FKT 240 MB), 1080 kg/h (Thor FKT 360 MB).
    4. Power requirement: 12 kW (Thor FKT120 MB), 25 kW (Thor FKT 240 MB), 31 kW (Thor FKT 360 MB).
    5. Length: 4310 mm (Thor FKT120 MB), 5875 mm (Thor FKT 240 MB), 7500 mm (Thor FKT 360 MB).
    6. Width: 1650 mm (Thor FKT120 MB), 2100 mm (Thor FKT 240 MB), 2500 mm (Thor FKT 360 MB).
    7. Height: 3375 mm (Thor FKT120 MB), 4650 mm (Thor FKT 240 MB), 5100 mm (Thor FKT 360 MB).
