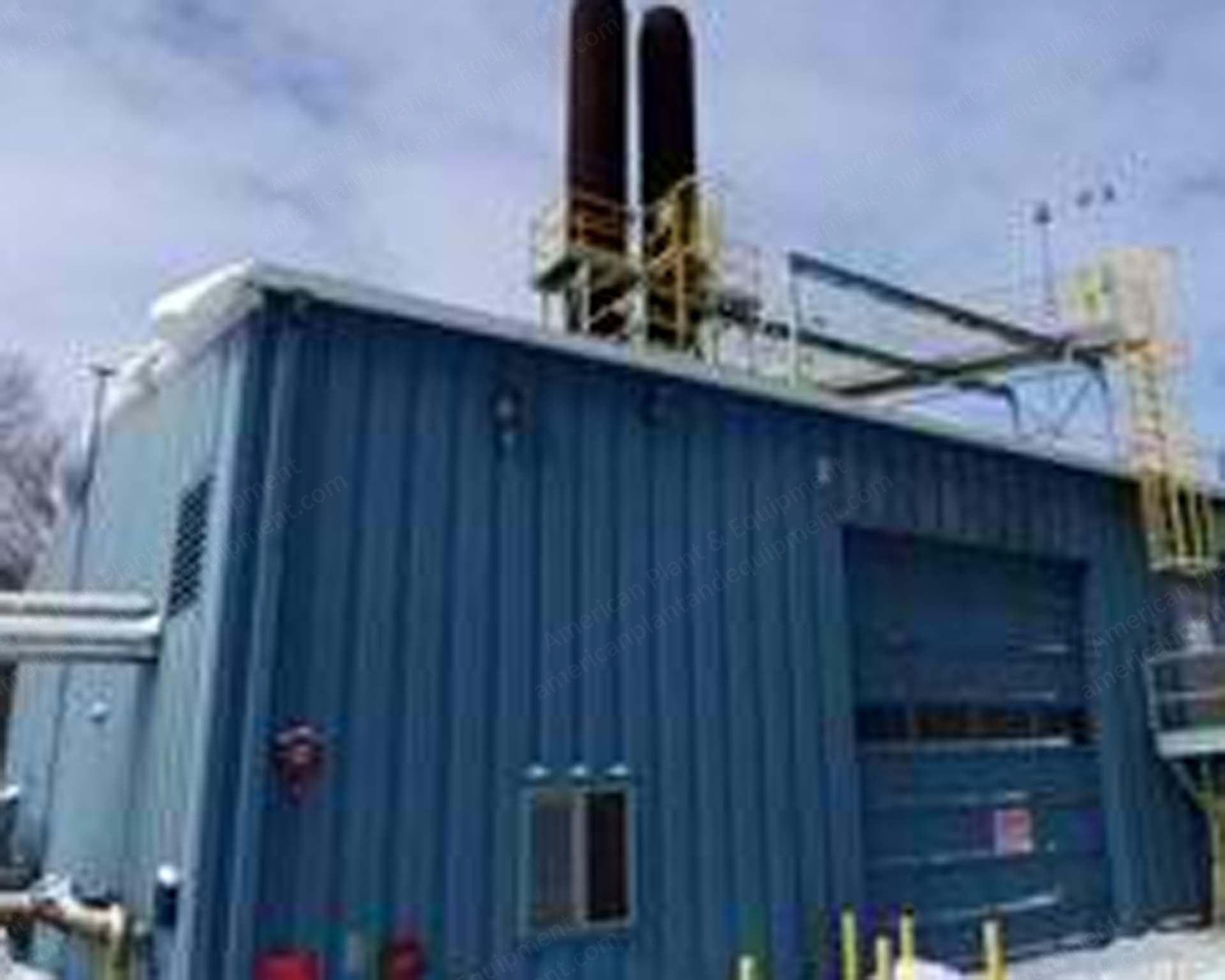

Babcock & Wilcox, Complete Boiler Plant, 100,000 lb/hr, 250 psi, Natural Gas / #6 Oil

Babcock & Wilcox, Complete Boiler Plant, 100,000 lb/hr, 250 psi, Natural Gas / #6 Oil

Description

  1. Overview
    1. Complete steam plant with total capacity of 100,000 lb/hr
    2. Includes two (2) 50,000 pph Babcock & Wilcox package steam boilers
    3. Water tube d-type design
    4. Skid mounted design
  2. Specifications
    1. Fuel type: natural gas / #6 oil
    2. Manufacturer: Babcock & Wilcox
    3. Type: water tube boilers
    4. Design pressure: 250 psig
    5. Capacity: 50,000 pph each
    6. 250 psi @ 406 degrees f temperature
    7. Heat side: 3763 sqft
    8. Water wall: 647 sqft
    9. Boiler has been re-tubed with low hours
  3. Burner System
    1. Upgraded with Coen burners model BMS 2000 20D-12440-1
    2. With flame safety system
    3. #6 oil or natural gas fired with 10% flue gas recirculation
    4. Coen 2000 burner control system
    5. With PLC operators station
    6. Control system standard features include dual flame safe guard
    7. First out annunciator
    8. NEMA 4 rating
    9. U.L. approved components
    10. CSA approved components
    11. Water column relays
    12. Scanner meters
    13. Dual fuel capability with low fire fuel changeover
  4. Condition
    1. One (1) boiler of two (2) available
    2. The entire plant is in good condition
  5. Included Equipment
    1. DA tank
    2. #6 fuel oil heater
    3. Water treatment
    4. Boiler feed pumps
    5. PLC controls and more
