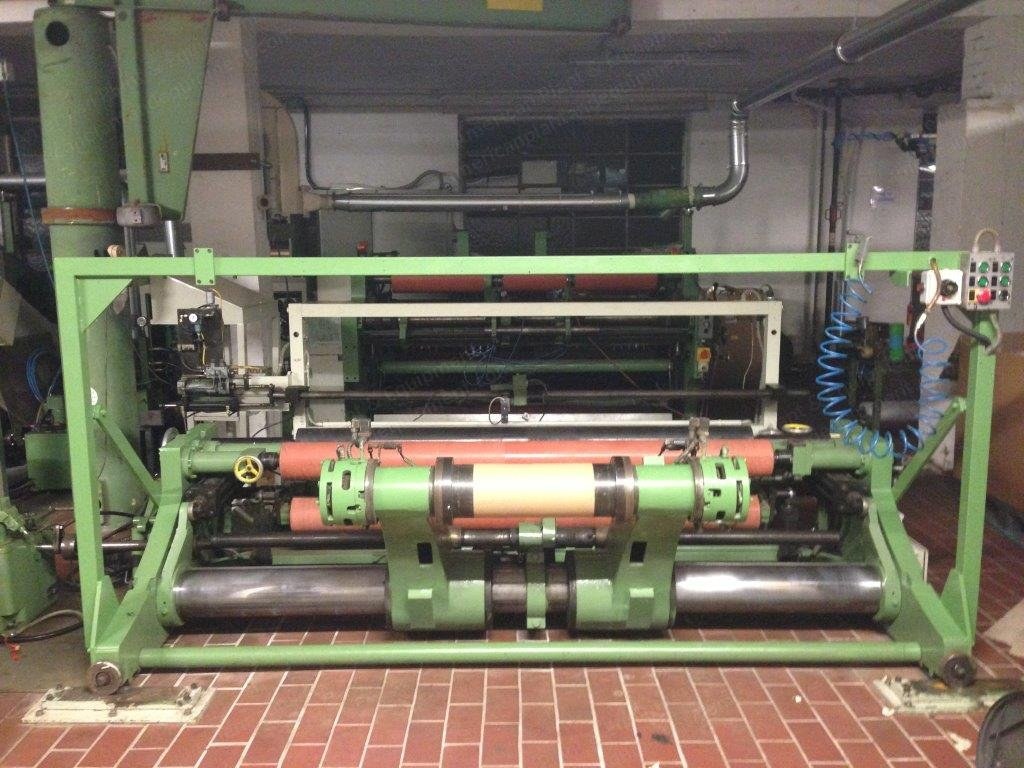

Kampf, Conslit 10/06, 1996, 1050mm Working Width, 550 m/min, Double Shaft

Kampf, Conslit 10/06, 1996, 1050mm Working Width, 550 m/min, Double Shaft

Description

  1. Overview
    1. Kampf slitter rewinder
    2. Year: 1996
    3. Model: Conslit 10/06
    4. Two spindle (double shaft) machine with centre drive
  2. Specifications
    1. Working width: 1050 mm
    2. Top knife diameter: 105 mm
    3. Bottom knife diameter: 105 mm
    4. Unwind roll diameter: 1000 mm max
    5. Rewind roll diameter: 610 mm max
    6. Slitting width: min 30 mm (at rewind shafts with ball frictions)
    7. Slitting width: min 19 mm (at air expanding rewind shafts)
    8. Slitting system: scissor cut
    9. Running speed: 550 m/min depends on material
  3. Equipment and Features
    1. E+L web edge guide
    2. Drello stroboscope 1296/3
    3. Air expanding rewind shaft, various diameters
    4. Shaftless unwind
    5. Finished roll removal stand
  4. Materials to Be Processed
    1. Paper approx 85 g/m²
    2. OPP, PE, BOPP, BOPET 20-60 micron
    3. Waxed paper coated one side
