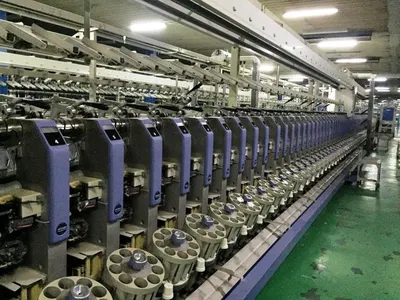

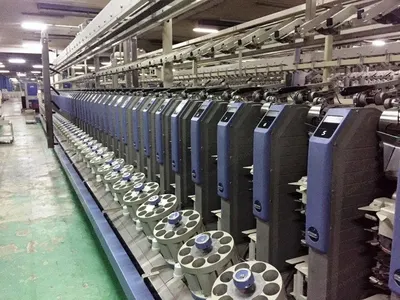

Muratec, 21C, 2008, 60 Spindles, Straight Magazine Type, PAC21 Type-A Winding Drum

Muratec, 21C, 2008, 60 Spindles, Straight Magazine Type, PAC21 Type-A Winding Drum

Description

  1. Overview

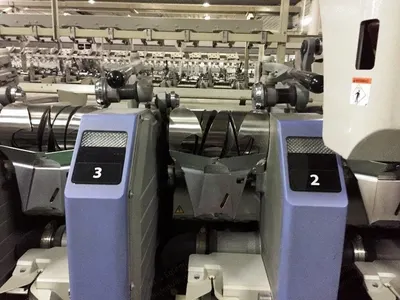

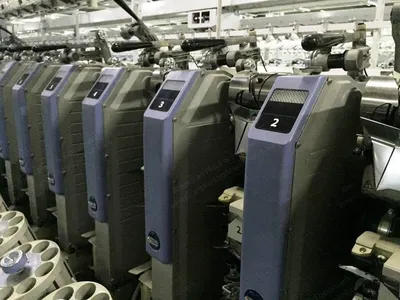

    1. Muratec automatic winder
    2. Straight magazine type (20mm)
    3. L-hand and R-hand

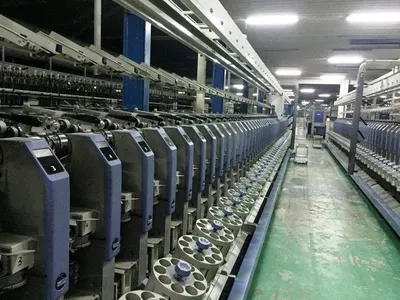

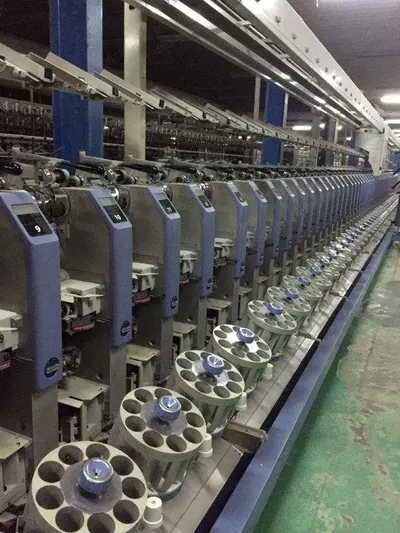

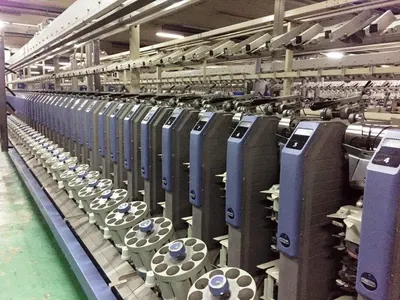

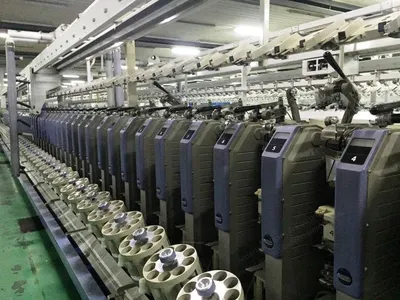

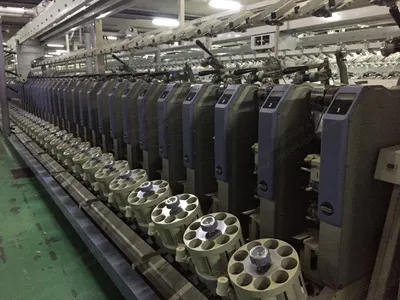

    4. 60 spindles / 5 spans
    5. Year 2008
  2. Yarn Specifications
    1. Yarn: cotton and synthetic blends
    2. Main count Ne 20 - 40
    3. Twist direction: Z twist
    4. Pre-dyed yarn: with
  3. Winding Specifications
    1. Take-up angle: 6 inches, 4 deg 20 min cone
    2. Winding drum: Pac21 type -A (6" x 2W/2.5W)
    3. Winding speed: max. 2,000 m/min
    4. Drum surface: standard, steel
    5. Drum drive: DC servo motor direct drive
    6. Monitoring device: VOS (visual on-demand system)
    7. Yarn detector: photo-electric feeler
    8. Take-up bobbin length: 170-174 mm
    9. Take-up bobbin top: 27 mm
    10. Take-up bobbin bottom: 69 mm
    11. Nose shape: roll nose
    12. Thickness take-up bobbin: 0.8 - 2.0 mm
    13. Air piping for package brake: with P6 pipe + SV
    14. BRG center (R) brake system: type-A (standard)
  4. Supply Bobbin Specifications
    1. Supply bobbin shape: spinning bobbin
    2. Supply bobbin outer diameter: 29 mm
    3. Supply bobbin inner diameter: 22 mm
    4. Supply bobbin length: 257 mm
    5. Supply bobbin top outer diameter: 21.1 - 21.5 mm
    6. Supply bobbin outer diameter: 28.6 - 29.0 mm
    7. Supply bobbin inner diameter: 21.6 - 22.5 mm
    8. Wound diameter of spinning bobbin: 40 - 43 mm

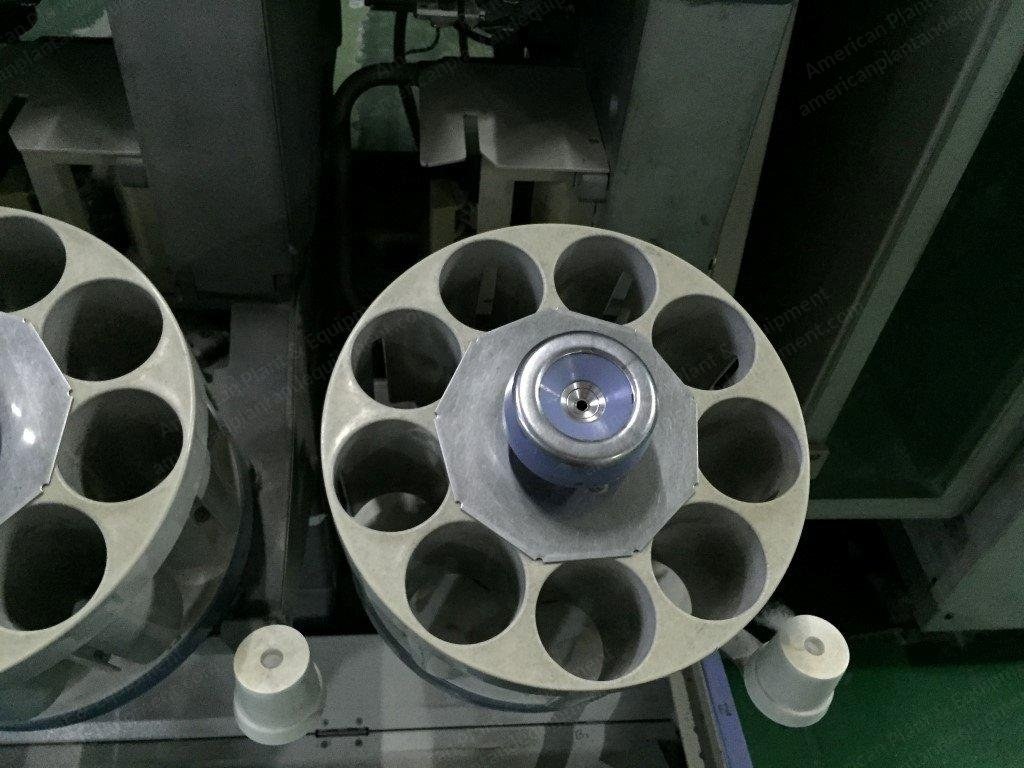

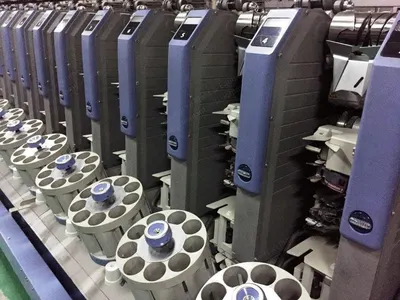

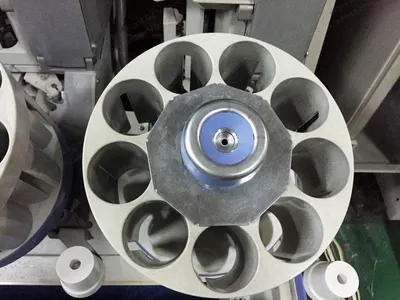

    9. Magazine pockets: 9 pockets (bobbin diameter 50 mm or less)
  5. Winding Unit Details
    1. Tensor: gate tensor
    2. Suction mouth top: double comb
    3. Waxing device: wax 12.7
    4. Balcon breaker: bal-con
    5. Automatic dobber: with
    6. Cutter: ceramic, standard type

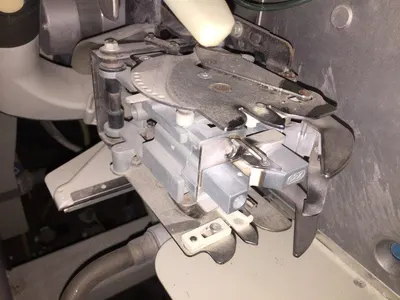

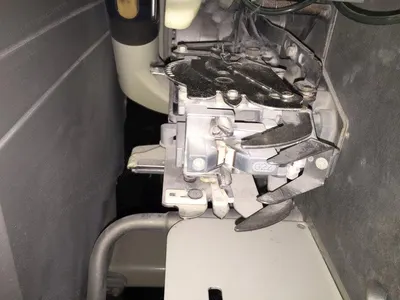

    7. Splicer, splicer nozzle: air splicer, G2Z*
    8. Splicer adjustment yarn: cotton 100%, PE, PV
    9. Front plate: FB1
    10. Yarn holding lever: H
    11. Untwisting nozzle: N0
    12. Winding unit pitch: standard 320 mm
  6. Blower and Conveyor Systems
    1. Blower duct: top
    2. Blow filter box: collect yarn waste and duct separately
    3. Blow cleaner: Muratec
    4. Empty bobbin conveyor: line wide type (251-280 mm) with sorting table
    5. Package conveyor: with (DE - OE)
    6. Package shutter: with (with package conveyor)
    7. Lighting bracket: with
    8. Dust collector: with
  7. Electrical and Control Systems
    1. Electric power voltage: 220 V / 60 Hz

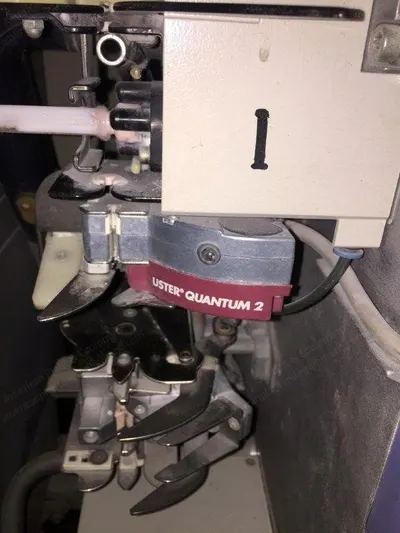

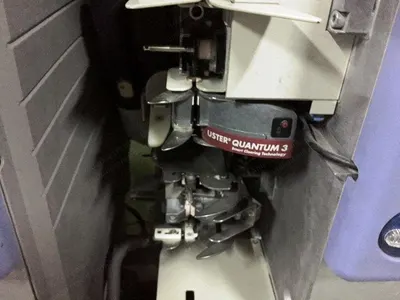

    2. Uster yarn clearer system: UQC2 Quantam-2 on 2008, and Quantum-3 on 2012
    3. Uster head type: MK-C20
    4. Blower motor: 11 kW
  8. Accessory Equipment
    1. Tension manager
    2. Kink preventing system
    3. BQC (bobbin quality check)
    4. BQC alarm automatic reset
    5. Package brake
    6. Cradle lifter
    7. Preclearer
    8. Energy saving inverter for blower (individual blower)
