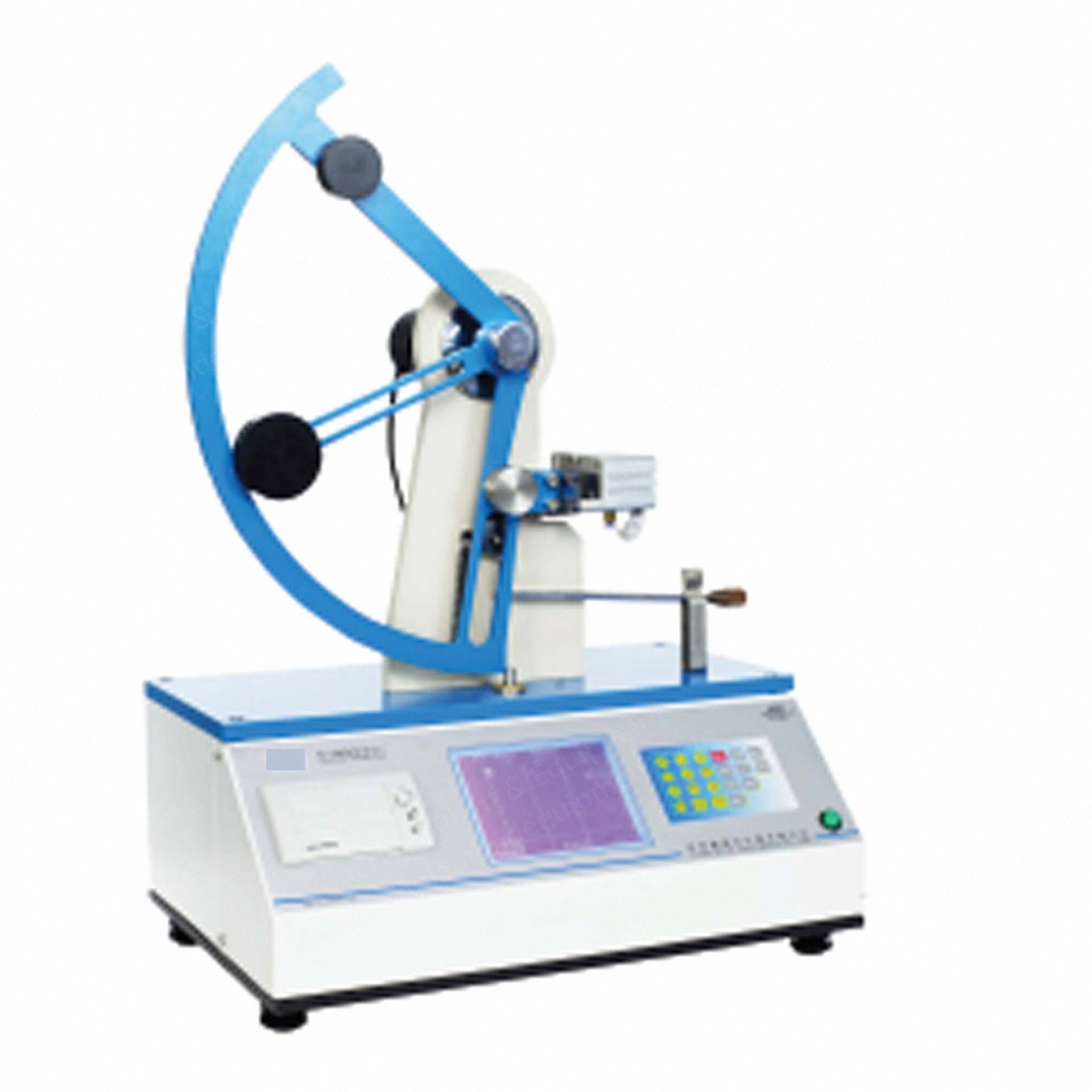

NovaStar, MC220, Film Tearing Tester, 200gf to 6400gf Pendulum Capacities, AC 220V (New)

Description

Overview
1. Film tearing tester for films, sheets, flexible pvc, pvdc, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
2. Applicable in the tearing test of films, sheets, flexible pvc, pvdc, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textile and non-woven, etc.
Product Features
1. Micro computer control
2. Automatic and electronic measurement
3. Pneumatic specimen clamping and pendulum releasing
4. Horizontal adjustment system
5. Multiple capacities of pendulum
6. Professional software support multi-testing units
7. Rs232 interface
Product Application
1. Plastic film, sheet, pet, aluminum polymer, paper, cardboard, woven material, heavy packaging bag, rubber gloves and latex gloves, stretch-wrap film, paper ticket, etc.
Technical Standards
1. Iso 6383-1-1983, iso 6383-2-1983, iso 1974, gb/t16578.2-2009, gb/t455, astm d1922, astm d1424, astm d689, tappi t414
Specifications
1. Pendulum capacities: 200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf
2. Gas inlet: 04 mm polyurethane pipe
3. Dimensions: 460 mm (l) x 320 mm (w) x 500 mm (h)
4. Power: ac 220v 50hz
5. Net weight: 30 kg (200gf configuration)
Included Fixtures
1. Standard: mainframe, one basic pendulum, one augmenting weight, one check weight
2. Optional: basic pendulum (200gf, 1600gf), check weight (200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf)

HS code	9024.80

Capacity	200gf, 400gf, 800gf, 1600gf, 3200gf, 6400gf
Gas Inlet	4 mm polyurethane pipe
