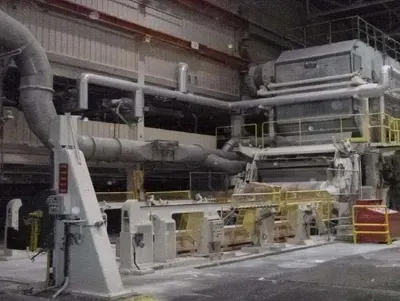

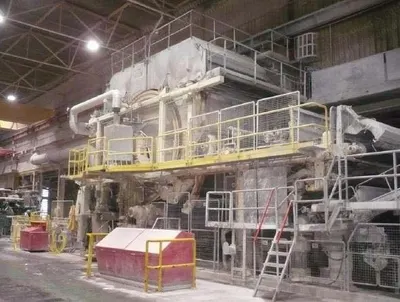

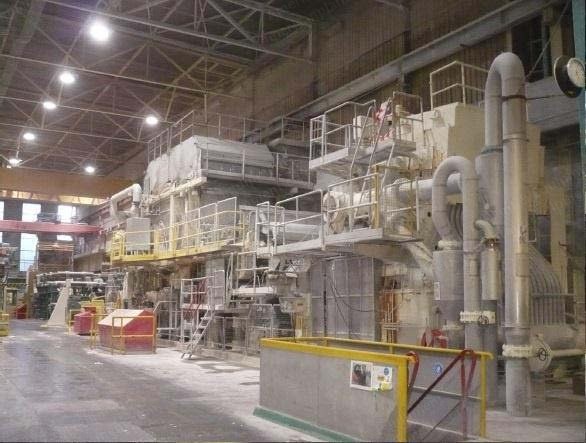

Beloit, Tissue Paper Machine, 1971, 2680mm Trimmed Width, 65 Tons Per Day, 1600 m/min

Beloit, Tissue Paper Machine, 1971, 2680mm Trimmed Width, 65 Tons Per Day, 1600 m/min

Description

  1. Overview
    1. Nominal width: 2720 mm
    2. Trimmed width: 2680 mm
    3. Design speed: 1600 m/min
    4. Production speed: up to 1550 m/min
    5. Grammage: 14 to 23 gsm
    6. Production: 55 to 65 ton/day
    7. Raw material: virgin pulp
    8. Drive voltage: 400 V, 50 Hz
    9. Machine drive type: ABB (DC-440 V)
    10. Hood drive type: Siemens DC
    11. DCS: ABB
    12. Major rebuilds: 1984 drying system and 2004 Yankee cylinder
    13. Key products: all type hankies, napkins, facials, toipa, and kitchen towel
  2. Scope Of Supply – Stock Preparation
    1. 2 refiners, cleaners, fan pump
  3. Headbox
    1. Pond side width: 2743 mm
    2. Layers: 1
  4. Forming
    1. Pickup: shoe
    2. Felt vacuum boxes: 2
  5. Wet Section / Pressing
    1. Wet press: no
    2. Suction press: 78 kN/m
    3. Blind press: 80 kN/m
    4. Steam box: no
  6. Yankee Cylinder
    1. New installed in year 2004 by Valmet
    2. Diameter: 4580 mm
    3. Drying hoods: rebuilt in 1984
    4. Energy: gas / max temp 430 °C
    5. Profiling: yes
  7. Creping
    1. Type: steel / ceramic (15-25°) conformatic
  8. Pop Reller
    1. Maxi roll diameter: 2000 mm
    2. Maxi width: 2680 mm
    3. Extractor: with roll up-ender
  9. Accessories – Tissue Machine
    1. Dust extraction: yes
    2. Scanner: ABB type 1190 / SP700
    3. Spare parts: yes (mechanical and electrical)
    4. Consumables: 2 felts and 2 wires
    5. Hydraulic power station: yes
    6. Lubrication system: yes
    7. Drawings and technical files: available

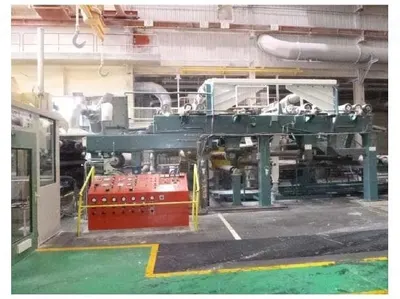

  10. Tissue Rewinder
    1. Manufacturer: Beloit
    2. Year of construction: 1971
    3. Rewinder: rebuild by Voith in year 1999
    4. Maxi width: 2700 mm
    5. Maxi reel diameter: 2200 mm
    6. Production speed: up to 1200 m/min
    7. Basic weight range: 14 to 30 gsm
    8. Max plies: 4
    9. Drive voltage: 400 V DC
    10. Drive type: ABB DC – 440 V
  11. Scope Of Supply – Rewinder
    1. Unwind station: 4 stands
    2. Max parent reel diameter: 1800 mm
    3. Calender crown: variable (with hydraulic power station)
    4. Slitting devices: 16 devices (19 available)
    5. Rewinder: rebuilt by Voith in 1999
    6. Type: DM 55 ML 260
    7. Maxi reel diameter: 2200 mm
    8. Maxi width: 2700 mm
    9. Production speed: up to 1200 m/min
    10. Basic weight range: 14 to 30 gsm
    11. Max plies: 4
  12. Core Extractor
    1. For cardboard and plastic cores
    2. Shaft diameter: 3" and 6"

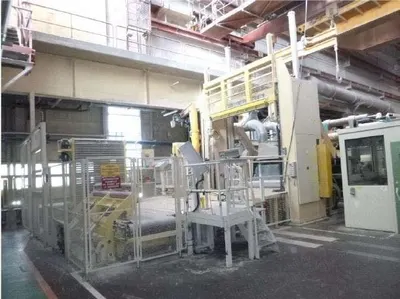

  13. Roll Evacuation
    1. Up-ender and transfer shuttle
    2. With integrated weight cell
    3. Maxi load: 3000 kg
    4. Roll diameter: mini 800 / maxi 2200 mm
    5. Maxi width: 2700 mm
  14. Electrical Equipment
    1. Main operator panel in soundproof cabin
    2. PLC Siemens (S5-135U)
    3. Drives: Siemens
  15. Accessories – Rewinder
    1. Dust extraction: yes
    2. Spare parts: yes (mechanical and electrical)
    3. Hydraulic power station: yes
    4. Drawings and technical files: available
