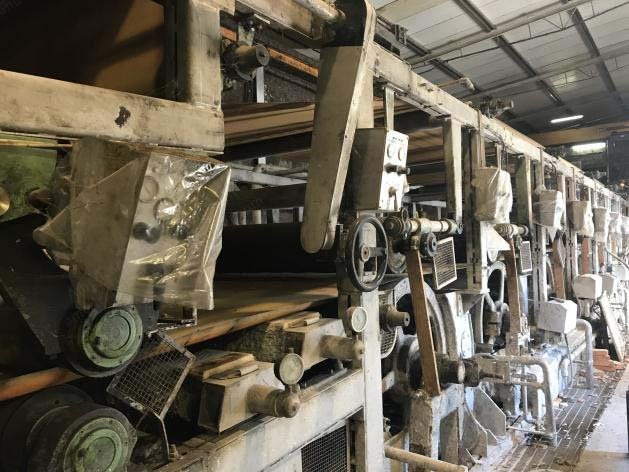

Duplex Board Machine, 75 TPD, 2900mm Width, 7 Forming Cylinders, 26 Dryer Cylinders

Duplex Board Machine, 75 TPD, 2900mm Width, 7 Forming Cylinders, 26 Dryer Cylinders

Description

  1. Overview
    1. Mc2 duplex board machine
    2. Maximum width at pope: 2900 mm
    3. Capacity: 75 tpd
    4. Speed: 17 to 45 m/min
    5. Grammage: 400 to 1000 gsm
    6. Product: white/white, grey/grey, brown/grey, white/grey
  2. Forming Section
    1. 7 forming cylinders, diameter: 1250 mm
  3. Press Section
    1. 3 plain felted presses, diameter: 550 mm
    2. Press work: 3 to 5 bar

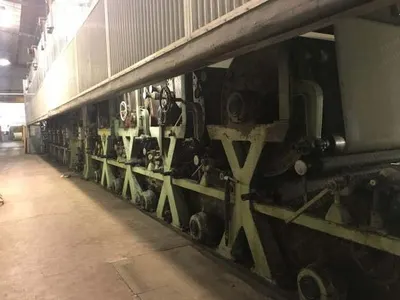

  4. Dryer Section
    1. 26 dryer cylinders, diameter: 1500 mm
    2. Mg cylinder, diameter: 3500 mm

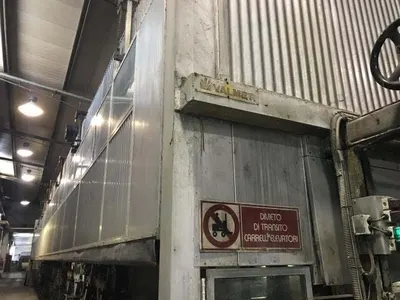

    3. Hood by Valmet
  5. Coating Section
    1. 2 x metering bar coaters BMB, unused because there is no coating color preparation
    2. Installed in 1991
    3. 4 dryer cylinders after coater
  6. Reel and Winding
    1. Conventional pope reel, 5/6 pope spools
    2. Machine can work with pope winder or bypass the pope and cut directly sheets on a Pizzolato sheet cutter duplex, 6 slitters
  7. Quality Control System
    1. First scanner before dryer section with Sr90 head for grammage and moisture
    2. Second scanner before pope, kripton head
