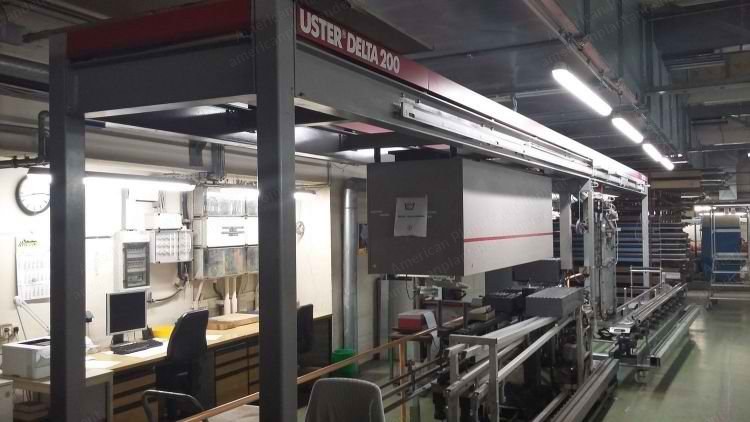

Uster Zellweger, Delta 200, 1992, 1900mm to 4000mm Working Width, 16 Heald Frames, 6 Dropper Bars

Uster Zellweger, Delta 200, 1992, 1900mm to 4000mm Working Width, 16 Heald Frames, 6 Dropper Bars Sold

Description

  1. Overview
    1. Uster Zellweger type delta 200
    2. Year of construction 1992
    3. Up to 16 heald frames
    4. 6 dropper bars
    5. Working width 1900 mm to 4000 mm
    6. Complete with trolleys and all accessories
    7. In 2004 an optical module was mounted on the installation
  2. Specifications
    1. Suitable for healds 11” and 13” c and j type
    2. Yarn type 11 to 2500 dtex
    3. 3 x 400 V / I 10 A
    4. Max. speed 200 /min
    5. Optimal speed 80 to 100 /min
    6. 11 and 13 °c and j possible
    7. Reed up to 50 teeth /cm
    8. Yarns 11 – 2500 dtex

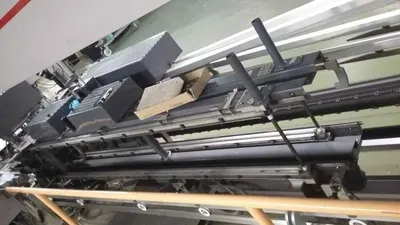

  3. Included Trolleys and Lifter
    1. 1 x trolley 400, year of construction 2004, for 1 warp beam
    2. 1 x trolley 280, year of construction 1992, for 2 warp beams
    3. 1 x trolley 280, year of construction 1992, for 1 warp beam
    4. 1 x lifter for frames, year of construction 2004
