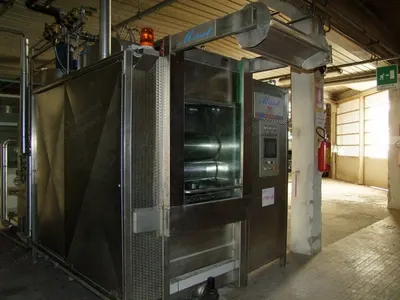

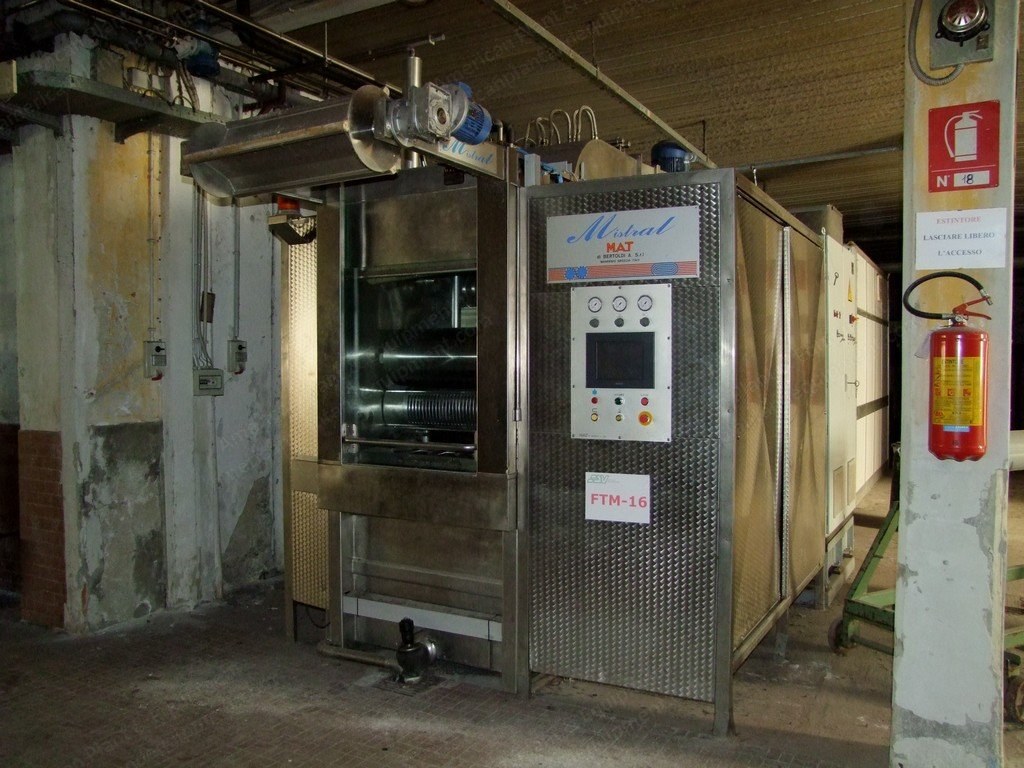

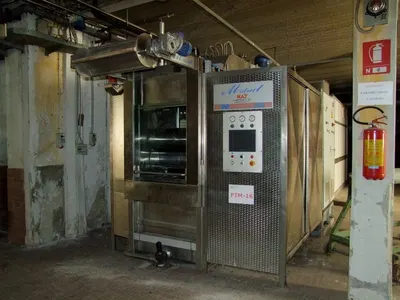

Machine for special treatment in rope on fabrics composed of all kinds of fiber
For wet dry finishing of all fibres
Fabrics are driven thanks to our conveyor belt system on which fabric adherence is assured by the compressed air action, facing fabric direction
An automatic device keeps the pressure on the fabric to a minimum value in order to assure the adherence; it changes according to the type and fabric weight
Mistral is then a very economic machine even in its usage integrity for all modern finishing types both on fabric and on knitted goods
Production Features
Rapid scouring of all fibres
Enzymatic treatments on natural and artificial fibres
Fabric dry softening with mechanical effect at high speed
Drying of pre-treated fabrics with chemical softeners
Soft treatment on knitted goods with shrinkage and dimensional steadiness
Double Filtering System
Automatic for fine dust
Pull-out drawer for big fibres
Technical Data
Max loading capacity: 120 / 150 kg
3 to 4 ropes light fabrics of 100/150 mt
2 to 3 ropes middleweight fabrics of 100/150 mt
1 rope heavy fabrics over 1 kg/linear metre
Installed Power
30 kW; the power input changes according to fabric weight and to dry or wet treatment
Working Speed
Dry condition: 800 mt/min
Wet condition: 600 mt/min
Thermal Power
200,000 kcal/hour
Treatment Temperature
Between 120/130 °C
Overall Dimensions
Width: 2542 mm
Length: 6100 mm
Height: 3544 mm
