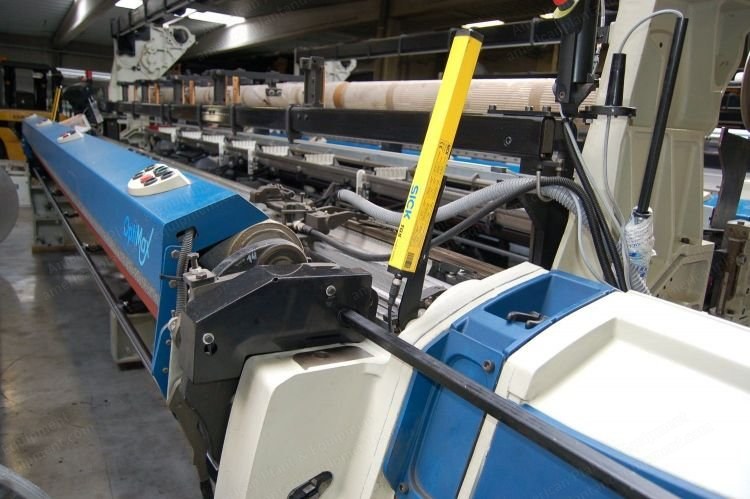

Picanol, Optimax-4-P-540, 2013, 5400mm Working Width, 4 Colors, Staubli 1671 Cam Box

Picanol, Optimax-4-P-540, 2013, 5400mm Working Width, 4 Colors, Staubli 1671 Cam Box

Description

  1. Overview
    1. Category: Picanol rapier looms
    2. Brand: Picanol
    3. Type: Optimax-4-P-540
    4. Year: 2013
    5. Working width: 5400 mm
    6. 4 colors
  2. Specifications
    1. Cam box Staubli type 1671 with 6 hooks and 6 extra reinforced shafts
    2. Positive rapier system GPG
    3. 4 prewinders LGL type Sirio Tecnico PPL (for tape weaving)
    4. Interactive color display
    5. Suspension system DRC30
    6. 6 warp stop motion bars Grob KFW5600
    7. Warp beam position Ø 1100 mm
    8. Top beam let off Ø 1000 mm
    9. Direct warp control type backrest
    10. Mechanical tuckers L & R – mechanical clamp
    11. Elsy L & R
    12. Max. mechanical speed 280 rpm
    13. Optispeed
    14. Light curtain
    15. 3 beams Ø 1000 mm - Q4
    16. A conversion kit towards Optileno, LED illumination above the fabric and below top beam (back side)
