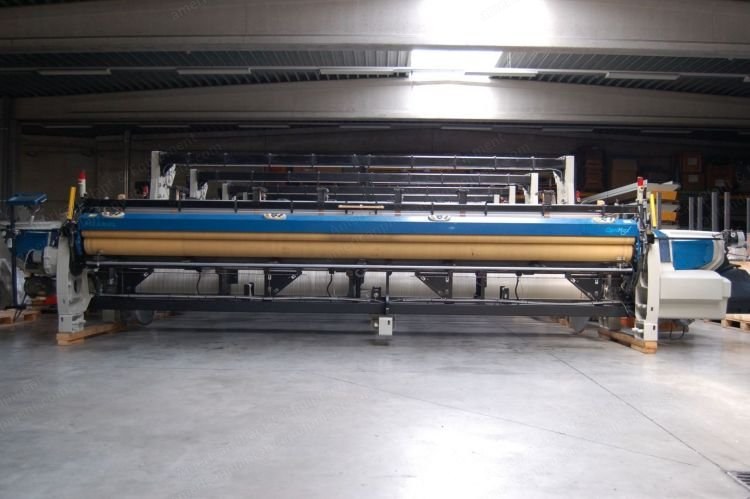

Picanol, Optimax-4-P-540, 2011, 5400mm Working Width, 4 Colors, Staubli 1671 Cam Motion

Picanol, Optimax-4-P-540, 2011, 5400mm Working Width, 4 Colors, Staubli 1671 Cam Motion

Description

  1. Overview
    1. Category: Picanol rapier loom
    2. Brand: Picanol
    3. Type: Optimax-4-P-540
    4. Year: 2011
  2. Specifications
    1. Working width: 5400 mm
    2. 4 colors
    3. Cam box Staubli type 1671 with 6 hooks and 6 extra reinforced shafts (possibility to increase to 9 levers)
    4. Positive rapier system GPG
    5. 4 prewinders LGL type Sirio Tecnico PPL (for tape weaving)
    6. Interactive color display
    7. Suspension system DRC30
    8. 6 warp stop motion bars Grob KFW5600
    9. Warp beam position Ø 1100 mm
    10. Direct warp control type backrest
    11. Elsy L and R
    12. Mechanical clamp
    13. Max. mechanical speed 280 rpm
    14. Optispeed
    15. Light curtain
    16. 1 beam Ø 1000 mm - Q4
    17. 6 heald frames steel heddle XLF Xtra Light 152 “11” type “C”
    18. LED illumination above the fabric and below top beam (back side)
