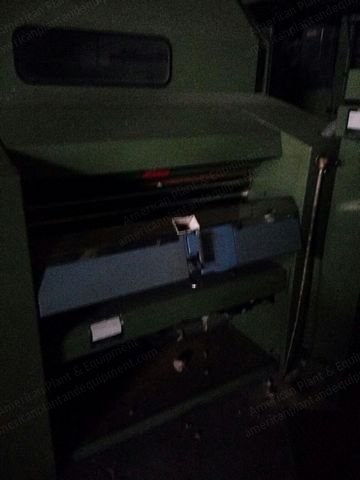

Truetzschler, Rieter, Complete Open End Spinning Plant, 1989 to 2006, Blendomat BDT, DK 760 Cards, Autocoro ACO 288/240

Truetzschler, Rieter, Complete Open End Spinning Plant, 1989 to 2006, Blendomat BDT, DK 760 Cards, Autocoro ACO 288/240

Description

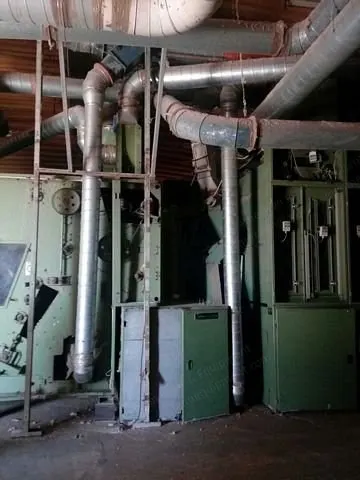

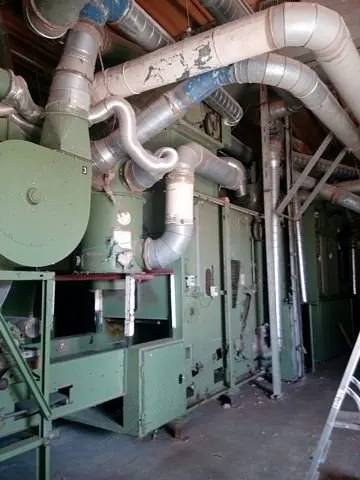

  1. Blowroom Line

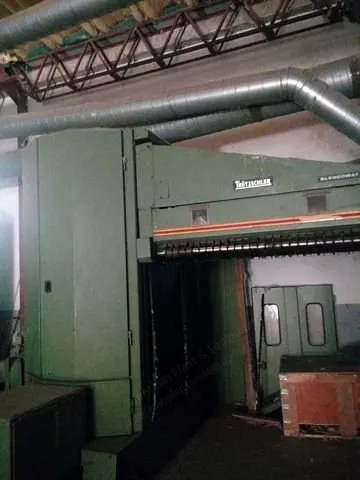

    1. Trutzschler Blendomat BDT, year 1990, arm of 1700 mm, lattice of 11,500, permanent magnet in exit.

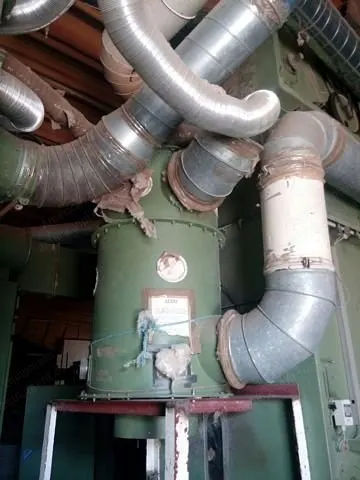

    2. Trutzschler cage condenser LVSA, year 1990, working width 1000 mm.

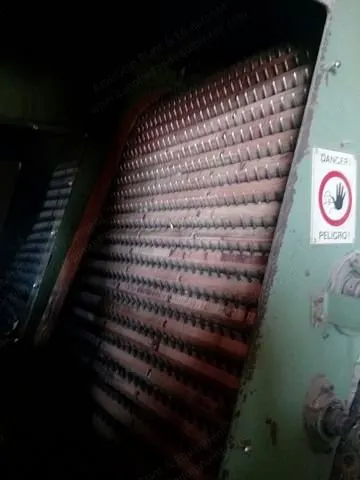

    3. Trutzschler blending feeder GBRA1000, year 1990, working width 1200 mm, feeding lattice 2000 mm, porcupine beater, predisposed for automatic feeding.
    4. Rieter cage condenser A2/1, year 1990, working width 1000 mm.
    5. Trutzschler horizontal opener RN, year 1990, porcupine beater, working width 1200 mm.
    6. Trutzschler cage condenser LVSA, year 1990, working width 1000 mm.

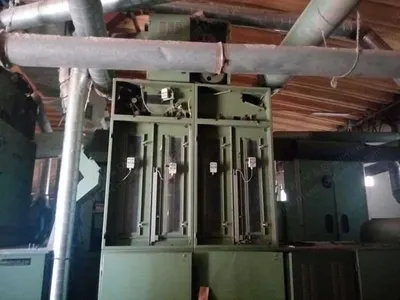

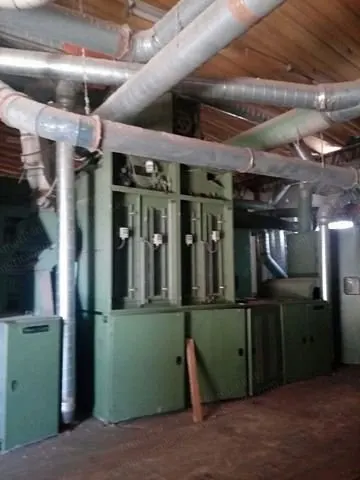

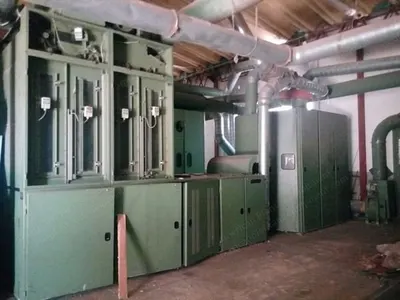

    7. Trutzschler mixer MCM4, year 1990, working width 1200 mm, 4 blending cells.
    8. Trutzschler horizontal opener RSK, year 1990, saw beater, with grids regulation.
    9. Trutzschler micro dust removal DX385, complete with MTV 425, with 5.5 kW.
  2. Cards
    1. Marzoli cards C601, year 2006, feeding by 139 Marzoli chute feed, working width 1000 mm, fix flat in entry and exit, autoleveller, cans in exit 40” x 42”, automatic cans change, centralized waste collection. Quantity: 2.
    2. Trutzschler cards DK 760, year 1999, feeding by 533 Trutzschler chute feed, working width 1000 mm, fix flat in entry and exit, autoleveller, cans in exit 30” x 42”, automatic cans change, centralized waste collection. Quantity: 2.
  3. Drawing Frames
    1. Rieter drawing frame RSB851, year 1995, feeding creel for cans 30” x 42”, single delivery, autoleveller, exit cans 18” x 42” (450 mm x 1020 mm).
    2. Rieter drawing frame RSB851, year 1989, feeding creel for cans 30” x 42”, single delivery, autoleveller, exit cans 18” x 42” (450 mm x 1020 mm).
  4. Open End Spinning

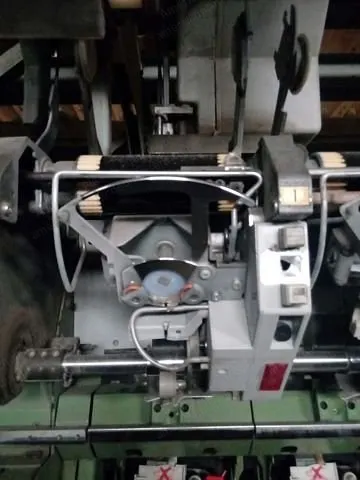

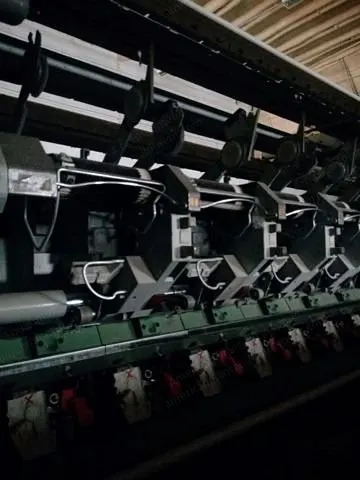

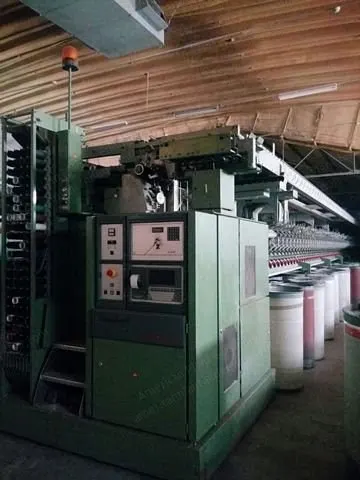

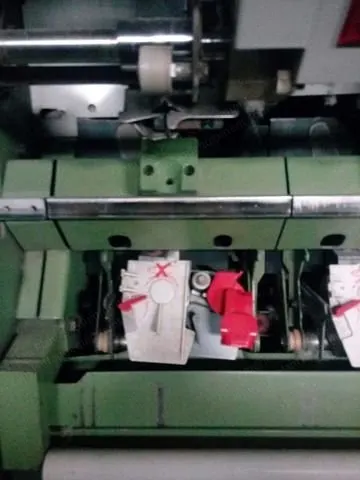

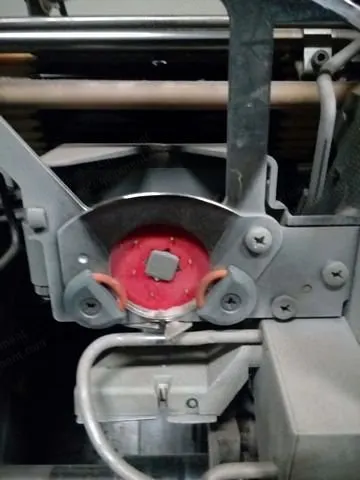

    1. Autocoro ACO 288 open end spinning, year 1996, 288 rotors, feeding cans 18” x 42”, B174 DN beaters, yarn presence electronic, corolab clearers, 2 ASW piecers, air to the top, Ø 36, waxing device, 2 ASW.
    2. Autocoro ACO 240 open end spinning, year 1993, 216 rotors, feeding cans 18” x 42”, B174 DB beaters, yarn presence electronic, corolab clearers, 2 ASW piecers, air to the top.
  5. Material Handling
    1. Nissan 25 fork lift, year 1999, fork, gas and gasoline.
    2. Peg for lift, 1500 kg, electric, 380.3.50 Hz, complete with battery charger.
  6. Accessories Included
    1. 3 fans extraction for the cards.
    2. 2 FKKA LTG compactors complete with tubes.
    3. 1 bale press with 2 trunks.
    4. 1 EGS Trutzschler control panel for blowing room.
    5. 1 Atlas Copco compressor with tank.

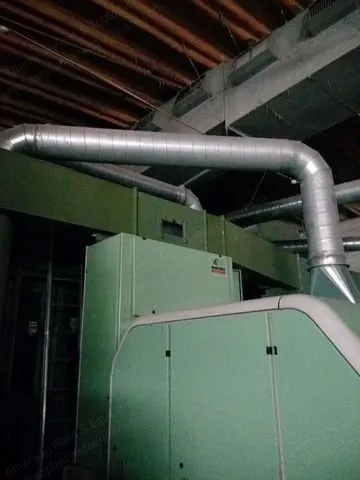

    6. Connection tube for air exhaust.
    7. Connection tube for material transport.
    8. 400 cans for open end.
    9. 24 cans for drawing.
    10. 16 cans for cards.
    11. Spare parts catalogue.
    12. Instruction manuals.
    13. Electrical diagrams.
    14. Spare parts new and used for all the machines.
    15. SF Trutzschler filter complete.

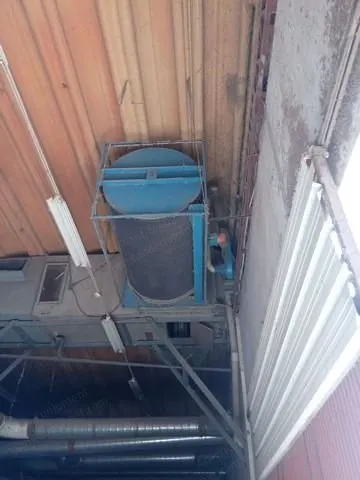

    16. LTG rotative filter with fan.
    17. 2 environment humidification (30,000 m3/h).
    18. Electrical cables for machine connections and auxiliaries.
    19. Bale steel, tape, plus various scraps, available around the mill.
