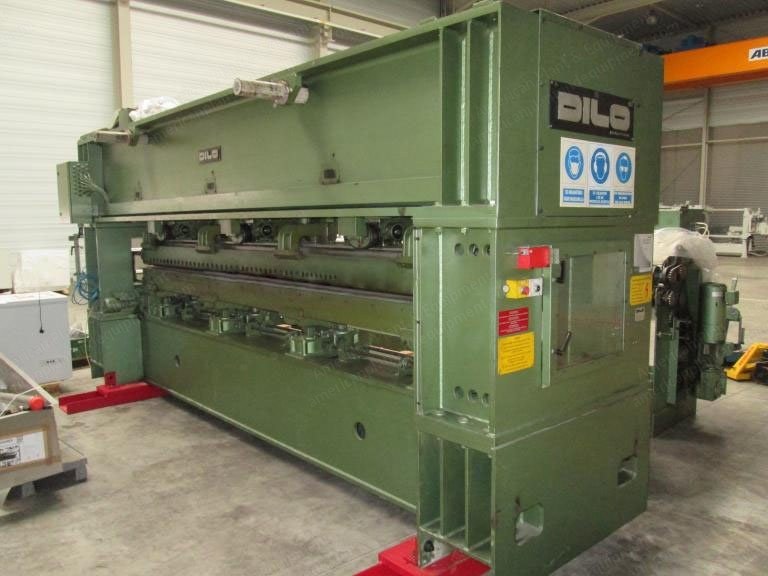

Dilo, Di-Loom OD-II 40, 1989, Bed Plate Width 200mm, 1200 rpm, 47 kW

Dilo, Di-Loom OD-II 40, 1989, Bed Plate Width 200mm, 1200 rpm, 47 kW Sold

Description

  1. Overview
    1. Brand: Dilo
    2. Model: Di-Loom Od-II 40
    3. Year: 1989
    4. Status: Available
  2. System Configuration
    1. Needling from the top, for 2 bed needles
    2. 1 unit equals 2 needle bed in needle, 1 additional set equals 2 additional needle bed
  3. Specifications
    1. Width of bed plate: 200 mm
    2. Needle number: 2 x 4417 / m working width
    3. Needle: 2w24-200-106-8834
    4. Needle travel: 60 mm (stroke)
    5. Maximum frequency: 1200 min-1
    6. Voltage: 3 x 380 V (6 +/-10%) / 50 Hz
  4. Electrical Drive
    1. 1 DC main drive motor, 47 kW
    2. Includes a control cabinet with an inverter and control panel
  5. Material Transport
    1. Transport of materials by a pair of conveyor rollers with drive
  6. Lubrication
    1. Automatic central lubrication system for main and eccentric bearings
