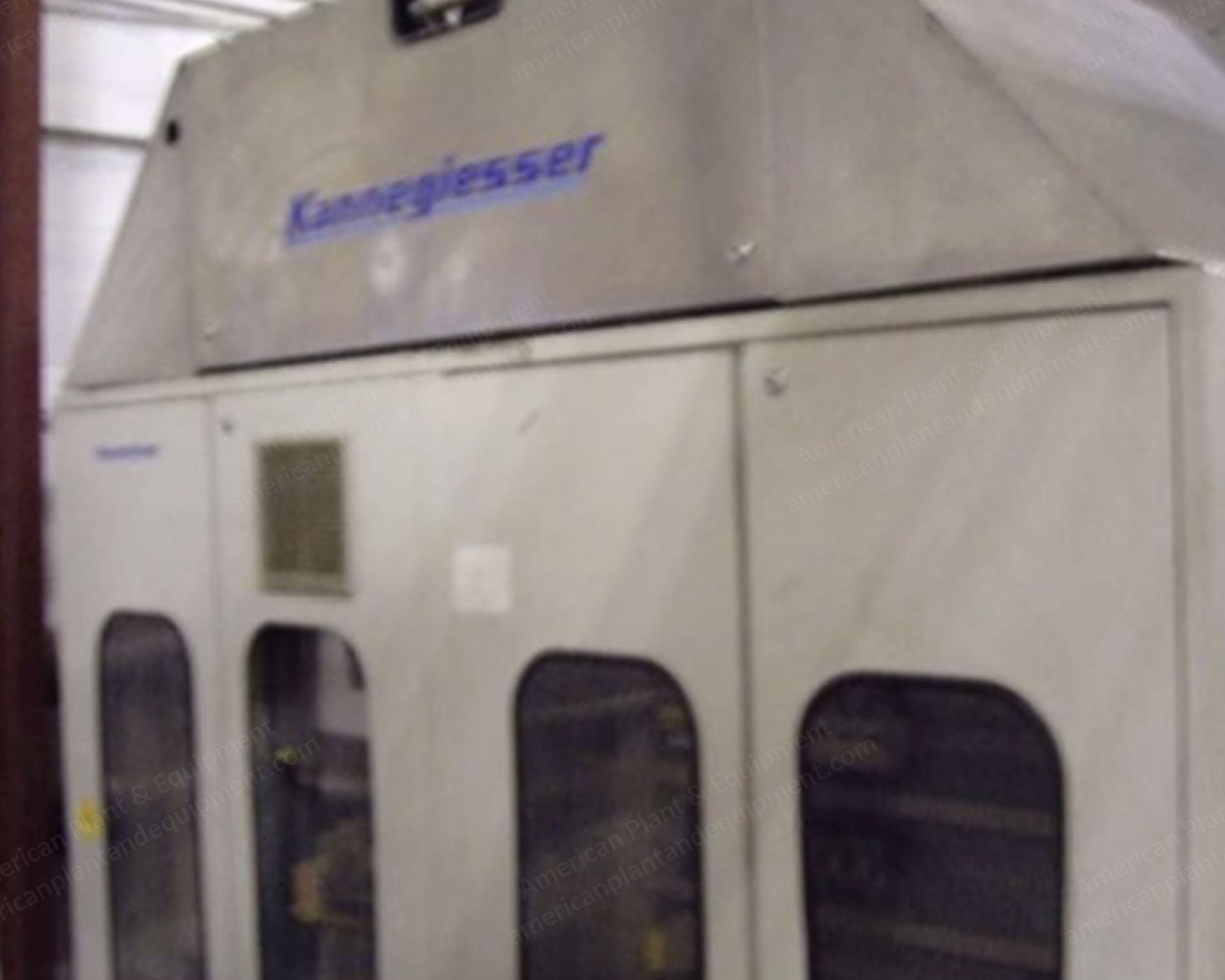

Kannegiesser, PowerTrans, 2009, 110 lb (50kg) Batch Capacity, 12 Modules

Kannegiesser, PowerTrans, 2009, 110 lb (50kg) Batch Capacity, 12 Modules

Description

  1. Overview
    1. 110 lb (50 kg) batch capacity automated washing system
    2. Year 2009
    3. 480 V / 60 Hz / 3-phase electrics
    4. All equipment is still affixed to original manufacturer shipping crates
    5. Most pieces still have original clear protective covering
    6. None of the equipment has been final assembled; remains in original condition from factory
    7. Various equipment pieces have multiple component sections requiring assembly and interconnecting wiring
  2. Condition
    1. Equipment is in a stored condition with accumulation of normal dust and debris from many years of idle placement
    2. General cleaning will restore the like-new appearance
    3. In very few exceptions, there is slight accumulation of metal oxidation (rust) on certain surfaces
    4. Two pieces of equipment were damaged due to proximity to a fire inside the storage facility in early 2016
    5. Damaged items are limited to the dryer basket housing assembly (one component out of three required for a complete dryer) and the rear cabinet panels for the SPS control cabinet

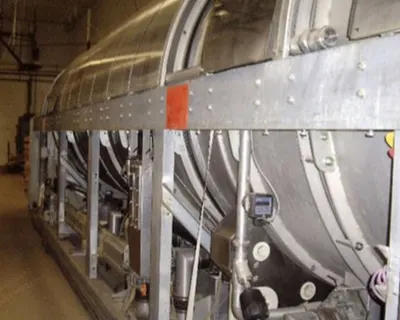

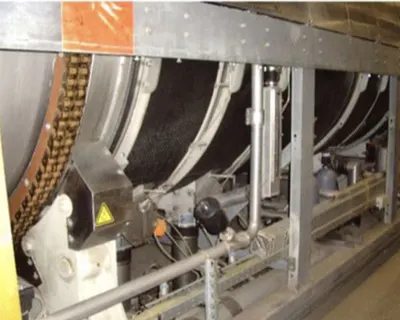

  3. Item 001: Powertrans Batch Tunnel Washer
    1. Model PT 12-50
    2. 12 modules, combination single and double drum design
    3. In general, the Powertrans is in good shape

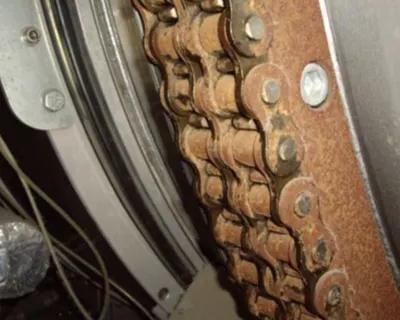

    4. Considerable oxidation evident on the drive chain and sprocket; will most likely require replacement prior to commissioning
    5. Sprocket on the motor shaft will need replacement as well
    6. Washer support wheels (4 total) did not show any visual damage upon inspection, but will require further investigation at commissioning
    7. Dust and dirt on the stainless steel discharge scoop is surface matter only; removable with water and rubbing
    8. Multiple rubber seals between modules will likely require replacement due to length of idle time without water in modules
    9. Electronics need to be verified; system computer boards are equipped with a back-up battery that may be exhausted
  4. Item 002: Powerpress Extractor
    1. Model PP 10-50-40
    2. 40 bar, multiple programs, right side discharge
    3. Appears to be in good condition upon visual inspection
    4. Storage residue on the discharge belt; recommended to install a new one at commissioning
    5. Verification of computer boards must be made
    6. Requires hydraulic oil to operate; oil is used to lubricate the main hydraulic cylinder
    7. Necessary to inspect seals within the tank and the cylinder prior to normal operation
  5. Item 003: Pocket Loading Conveyor
    1. Model PB 4-50
    2. Inclined, 4-pocket, with weighing scale
    3. Shows no sign of damage during storage
    4. Shipping covers (visqueen) were pulled back to allow inspection
    5. Conveyor remains on original shipping crates
  6. Item 004: Powerdry System Dryers
    1. Model D-120 GW-U
    2. Gas heated dryers (2 total), dual batch design

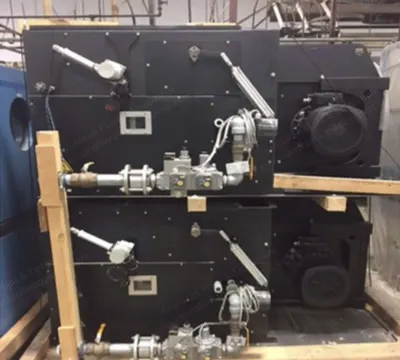

    3. Consist of three distinct components: basket housing assembly, burner assembly, and pedestal assembly
    4. All Powerdry pedestal assemblies (3 total), basket housing assemblies (2 of 3), and burner assemblies (3 total) have been stored on original crates and covered in shipping visqueen
    5. No damage to any based on visual inspection
    6. Each dryer basket assembly housing has a control panel with operating controls; necessary to inspect control boards for functionality prior to commissioning
  7. Item 005: Powerdry Basket Housing Assembly (Fire Damaged)
    1. Model D-120 GW-U
    2. One dryer basket housing assembly damaged by heat from a fire in 2016
    3. Fire never reached the piece directly, but heat was enough to cause damage to exposed panels

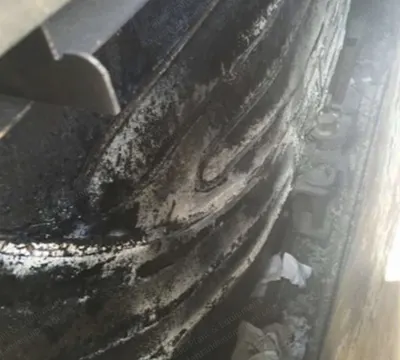

    4. Damage includes fire damage from burning crate to bottom panel
  8. Included Components

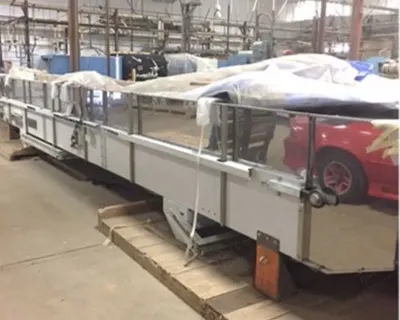

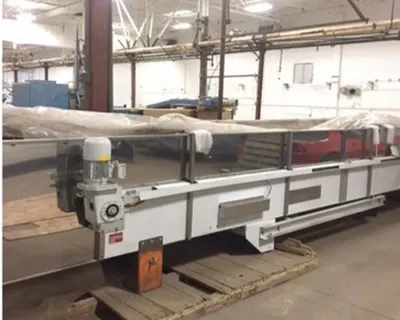

    1. Intermediate transfer and storage belts with Northwest Conveyor and Hytrol components
    2. Dryer loading shuttle conveyor, dual belt, lifting and translating design
    3. System control panel with rear panel damaged but controls intact
    4. One Powerdry gas heated dryer damaged in local fire
    1. All equipment is still affixed to original manufacturer shipping crates
