High capacity and individual lobe pump system depositor
Suitable for brownies, flapjacks, cake batter, etc.
The versatile machine Dlv depositor is capable of accurately depositing a wide range of batters, fluids, dense and aerated mixes, and even batters containing small particulates such as nuts, chocolate, candied fruit, etc.
All the machine functions are plc-controlled and the working parameters relating to each product are easily programmable and storable for re-use by the operator through a simple interface panel
Specifications
Model Dlv
Type 450
Used for standard 450mm wide trays
This machine is with a sheet depositor head
Deposits products such as brownies by volume into tray
Rated at up to around 350kgs per hour (depending on product)
Stainless steel product feed hopper sits above machine; this has a moving arm that forces product down into the machine
This has its own Comas control panel
Trays are driven through machine with lugs
Photocell registers tray to then fill (no tray, no fill)
Contra-rotating cylinders pushes product into tray
With Siemens Simatic Op7 plc control
415 volts
50 Hz
3 phase
Condition And Usage
Last used for brownies/flapjacks
Included Items

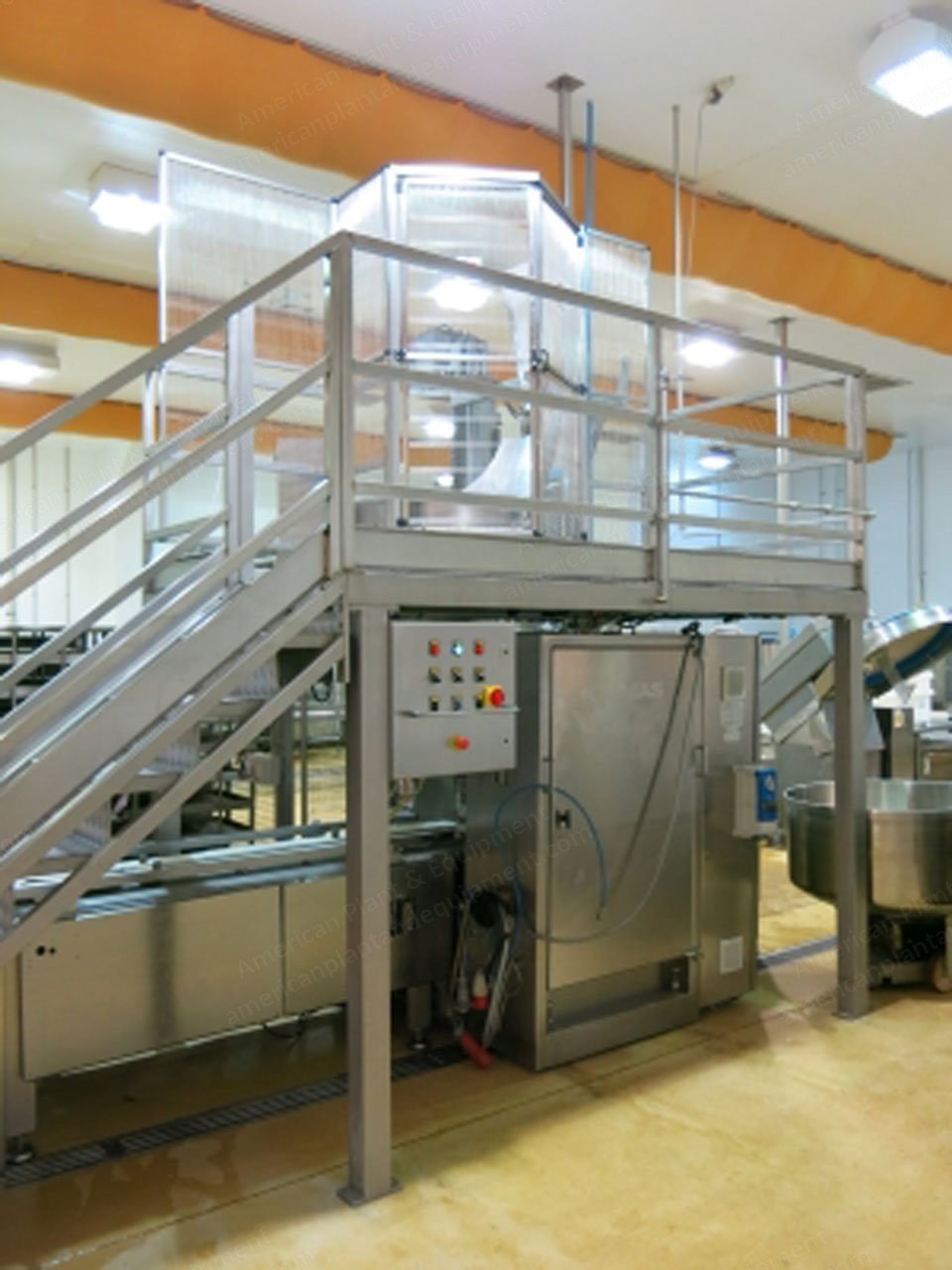

Also including stainless steel gantry and steps (where hopper sits above machine)
Location And Dimensions
Approximate floorspace required of 6 metres long x 2 metres wide (including gantry and steps)
