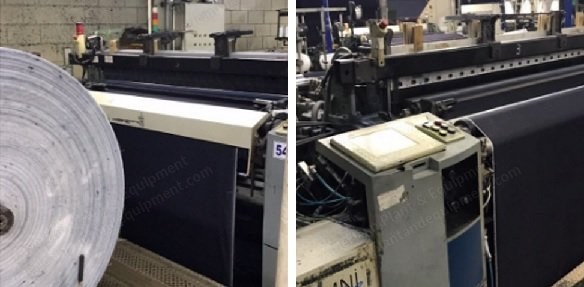

Picanol, Omni Plus, 2001, 1900mm, Staubli 1661 Cam, 4 Colors

Picanol, Omni Plus, 2001, 1900mm, Staubli 1661 Cam, 4 Colors

Description

  1. Overview
    1. Picanol Omni Plus machines
    2. Width 1900 mm
    3. Year 2001
    4. Speed 750 rpm
  2. Shedding
    1. Staubli 1661 cam box
    2. 8 cams capacity with 6 installed cams 3/1
    3. 4 frames
  3. Weft Insertion
    1. 4 colors, only 2 mounted
    2. 2 Picanol feeders 2232 plus
  4. Electrical
    1. Elsy electrical
    2. Let of electrical
    3. Sumo motor
  5. Take-Up and Beam
    1. Off loom take up
    2. 1.5 beam with flange 1100
  6. Warp Stop Motion and Accessories
    1. Warp stop motion 6/4
    2. Droppers/heddles 4000
