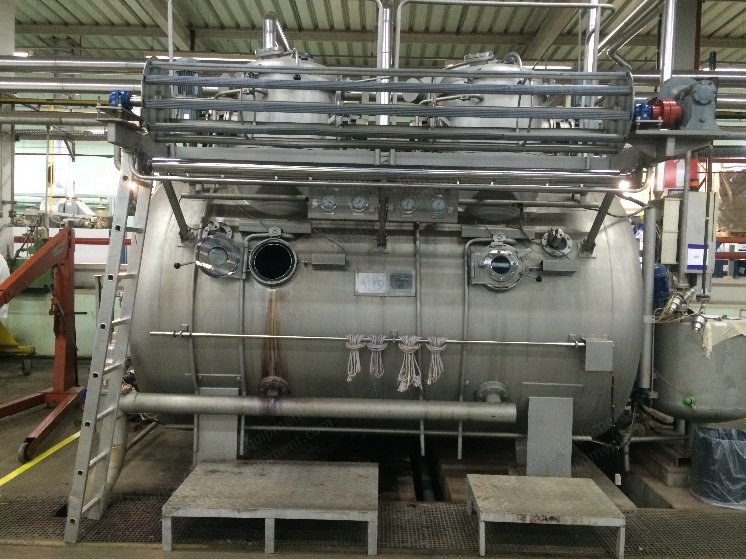

Atyc, Techno Dye HT-4, 2010, High Temperature Jet Dyeing Machine, 800 kg Capacity, 3.5 Bar, 380V

Atyc, Techno Dye HT-4, 2010, High Temperature Jet Dyeing Machine, 800 kg Capacity, 3.5 Bar, 380V

Description

  1. Overview

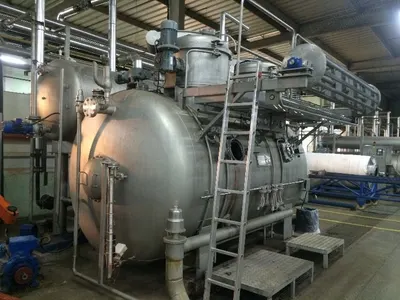

    1. Atcy Techno Dye HT-4 high temperature jets and overflow
    2. Year: 2010
    3. Model: Techno Dye HT-4
  2. Specifications
    1. Max capacity: 800 kg
    2. Pressure: 3.5 bar
    3. Max temperature: 135 °C
    4. Volume: 14,640 L
    5. Nozzle diameter: 110 mm, can be changed to 70 or 150 mm
    6. Power supply: 380 V
  3. Dimensions
    1. Width of the machine: 4.90 m
    2. Length of the machine: 4.94 m
    3. Height: 3.026 m
