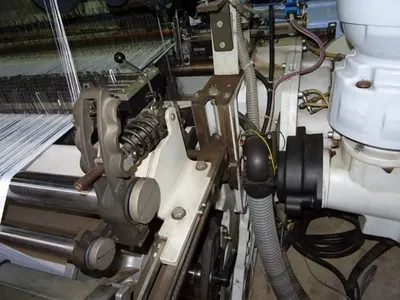

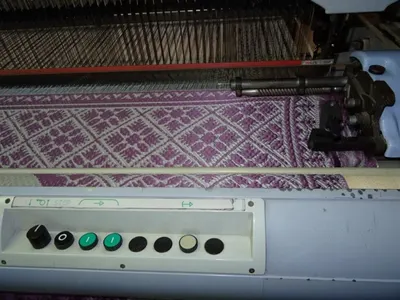

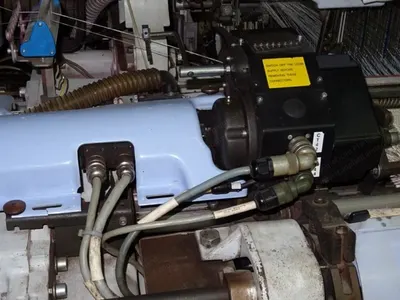

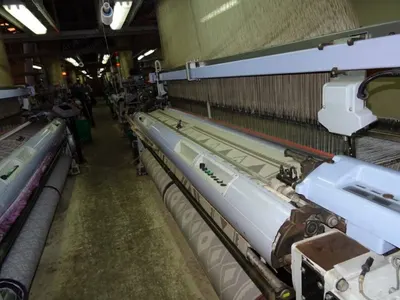

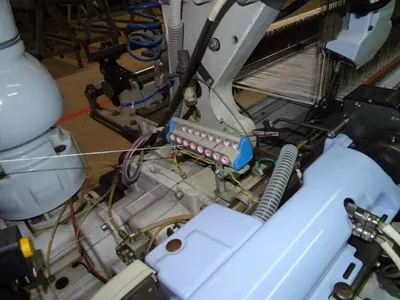

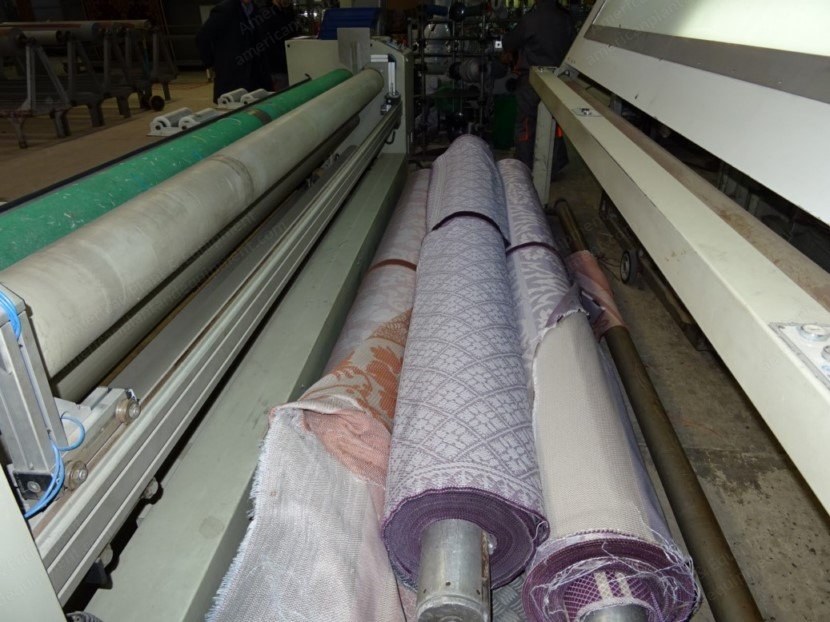

Schonherr, Alpha300, 2002, 4000mm Width, Reed Density 500, 130 Picks/Min, 2x Staubli LX2490 Jacquard

Schonherr, Alpha300, 2002, 4000mm Width, Reed Density 500, 130 Picks/Min, 2x Staubli LX2490 Jacquard

Description

  1. Overview
    1. Schonherr machine
    2. Type: Alpha300
    3. Year: 2002
  2. Specifications
    1. Width: 4000 mm
    2. Reed density: 500 d/meter
    3. Speed: 130 picks/min
    4. Voltage: 380 volts - 50 Hz
  3. Configuration

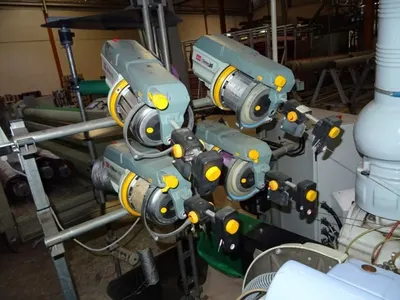

    1. Pre winder: 2 x Roj
    2. Beam stand: 8 beams - high beam stand

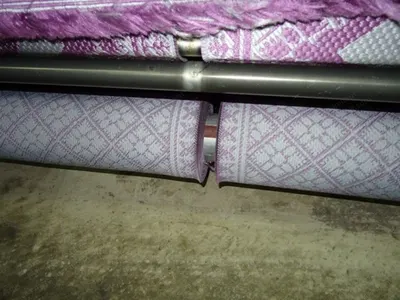

    3. Take-up rollers: 2 rollers
    4. Shaft motion: electronic dobby for 12 shafts

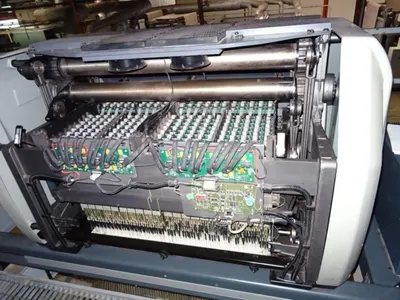

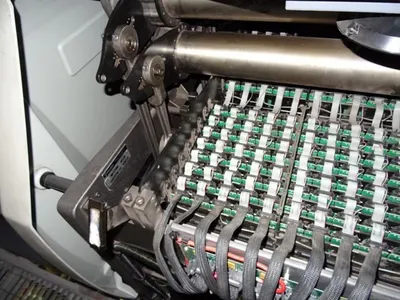

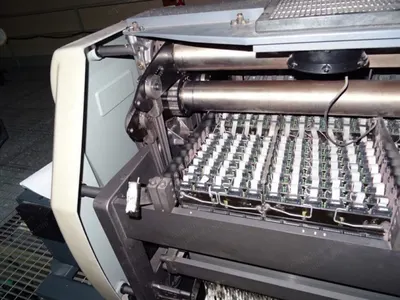

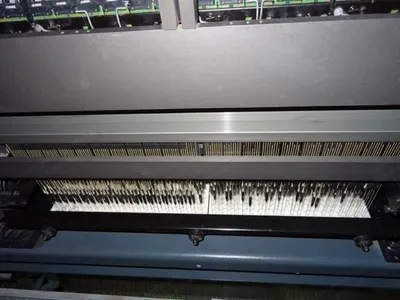

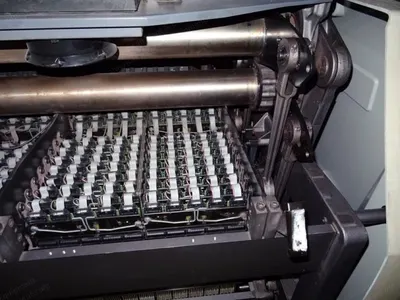

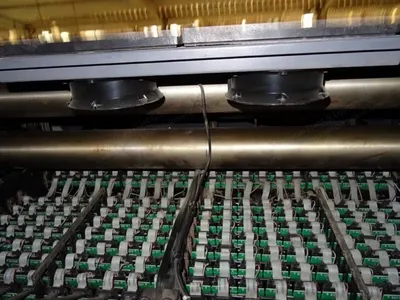

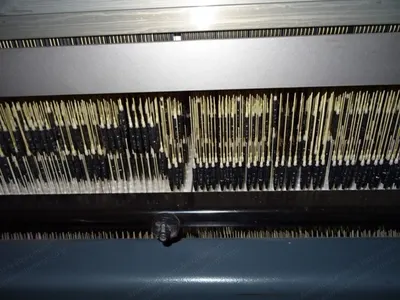

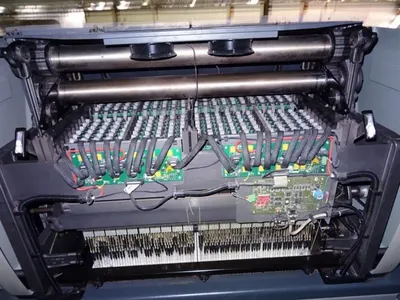

    5. Jacquard type: 2 Staubli jacquard model LX2490 (8064 hooks x 2)
    6. Harness (number of cords): for 8 colors
    7. Creel: 9 doors
    8. Warp stop motion: ground and pile stop motion
