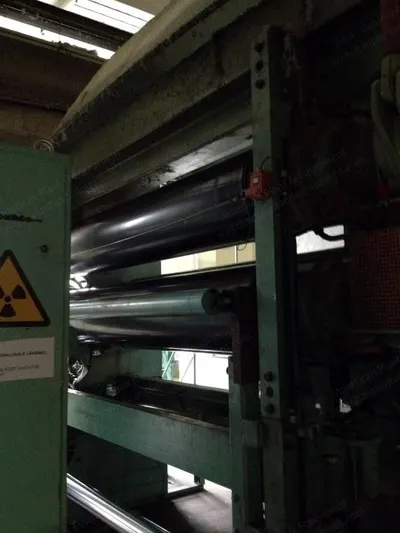

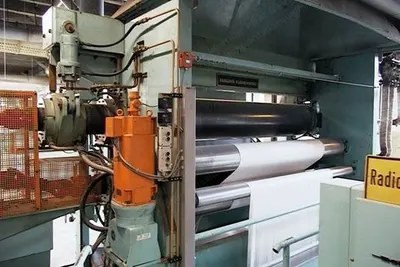

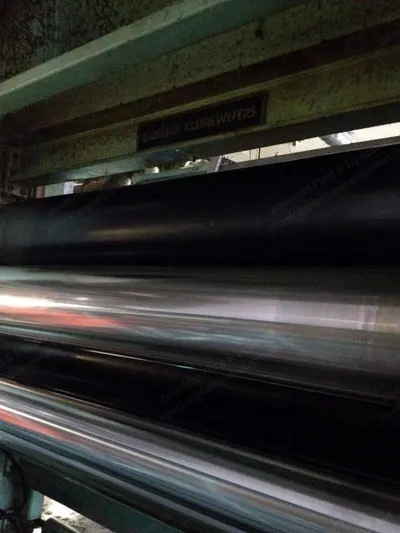

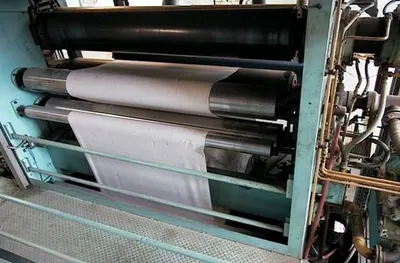

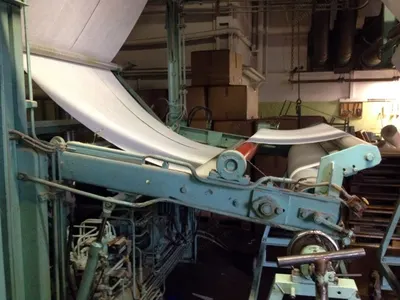

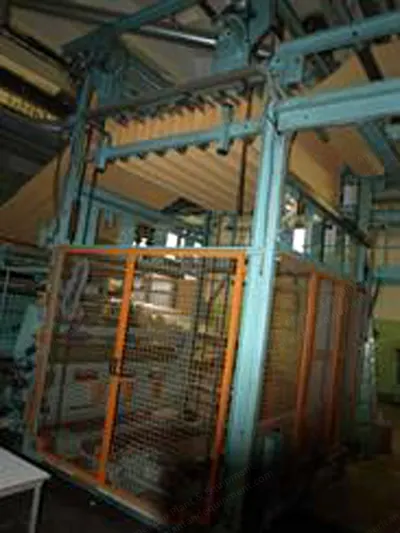

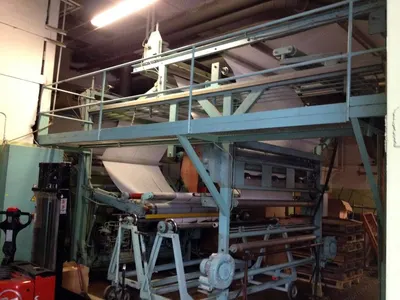

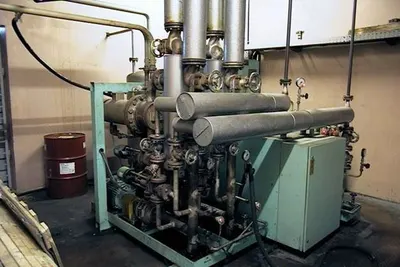

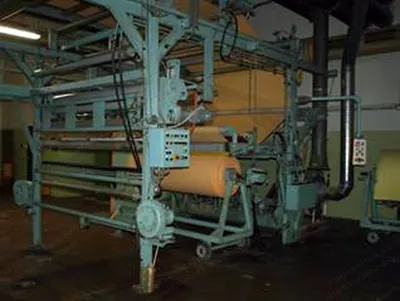

Description Overview Smooth rollers width: 2500 mm Working width at work with smooth roll and smooth roll: 2400 mm Working width at work with smooth roll and engraved roll: 2300 mm to 2400 mm Working speed up to 100 m/min Working Rolls 2 pieces of steel working rolls with diameter 460 mm One of them (upper) installed on calender stationary, with smooth surface Another roll (lower) is possible to exchange for: Smooth surface roll - 100% bind Engraved roll NW5 Casaretto - pattern 0.5 x 0.5 mm square, distance between centre 1.35 mm, height 0.3 + 0.3 mm, 13.72% area bind, 54.9 points/sqm Engraved roll NW22 Casaretto - pattern 0.9 x 0.9 mm square, distance between centre 1.65 mm, height 0.2 + 0.3 mm, 29.75% area bind, 36.7 points/sqm Roll bending system, pressure of the working rolls up to 150 bar - 63 tons (260 N/mm) Cooling Rolls 2 pieces of water cooled cooling rolls with cr-nickel coat and diameter 250 mm Included Equipment 1 x oil heating station, brand Aura, Germany, oil temperature up to 300 degree C, electrical heating, automatically handling 1 x cloth accumulator and dancer, brand: Bastian, working width 2200 mm 1 x cutting machine, brand: Bastian, working width 2200 mm 1 x winder, brand: Bastian, working width 2200 mm
