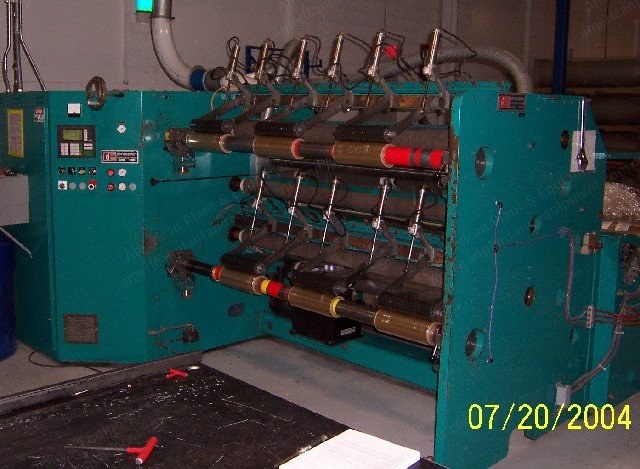

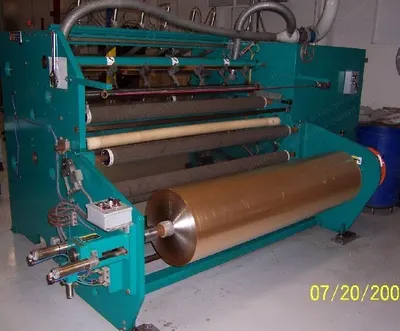

Description Overview Dusenbery model 835 Year: 1997 Designed to run materials such as.0005 pvdc through 25 mil ridge films and paper This machine was slitting.0005” pvdc Specifications 1500 fpm 24” rewind diameter with top riding rolls 6 pair of pneumatic top riding roll arm assemblies Razor in the groove slitting (can be easily changed to shear cut or razor in air) with 24 razor holders Two motor drive: 10 hp main and 20 hp rewind (dc) Power requirements: 480-3-60 Two trim nozzles Reversing rewind Integral unwind, shaft type with special auto chucking of the unwind shaft Closed loop unwind tension control using a load cell 40” unwind diameter Maximum unwind roll weight of 2750 lbs +/- 1.5” side register 3” unwind shaft Components 2 ¾” aluminum rewind shafts used With 2 3/4” x 3” core adaptors Cork covered pull rolls and idlers Mitsubishi plc operator interface through a model mta-g1 touch key pad and lcd display Fife p-50 edge guide Driven bowed roll Two web tail clamps for holding slit tails during unloading Remote speed control at the unwind Remote fine adjustment edge guide control at the front of the machine and rear of machine Condition In great condition Included All of the original documentation is included Electrical prints Mechanical prints Operator instruction manual and spare parts list
