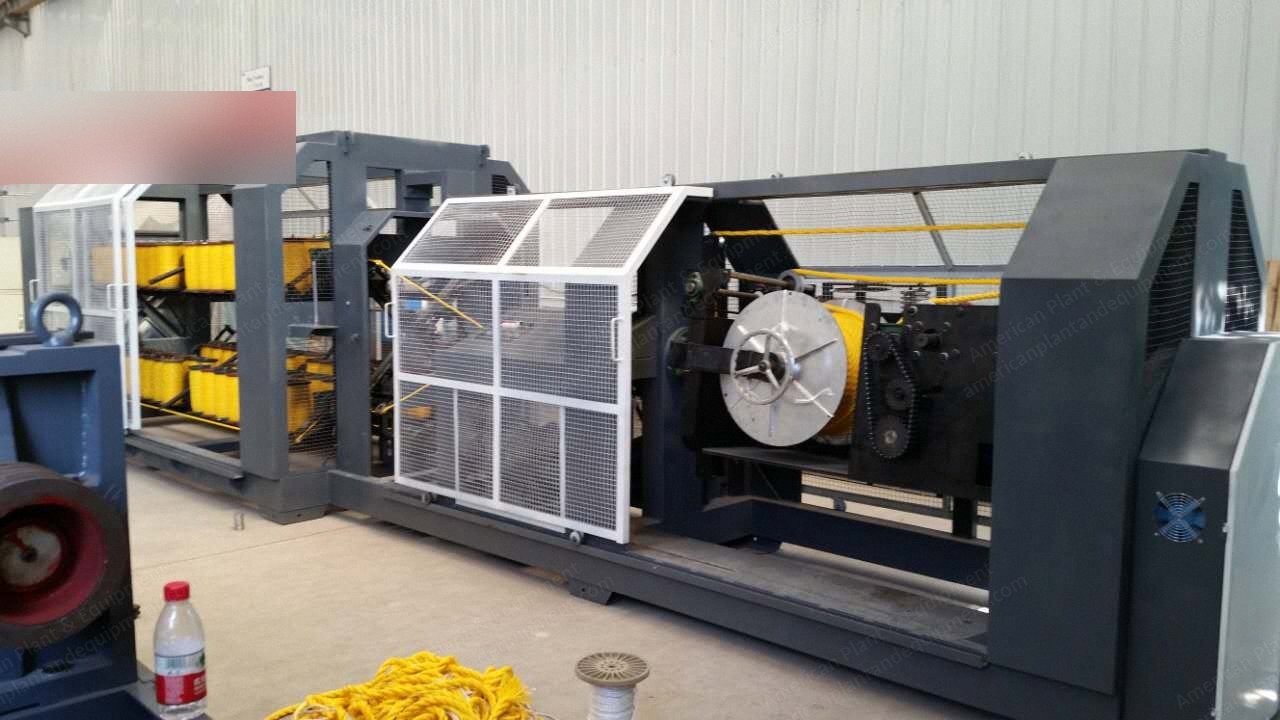

NovaStar, WN296, Twisted Rope Making Machine, Rope Range 12 to 20mm, 11kW, 3 or 4 Strand (New)

Description

Overview
1. Twisted rope machine
2. Model: WN296
3. High productivity
4. Low noise level
5. Low maintenance
6. Easy operation system
7. Rigid construction
8. Power transmission by timing belts
9. Auto stop after yarn breakage to control wastage
10. Digital length counter meter
11. Door sensor
12. A/C drive
13. Direct coiling head winding
Specifications
1. Rope range: 12 to 20 mm
2. Lay range: 32 to 78 mm
3. Power: 11 kW
4. Take-up capacity: Φ130 x Φ660 x Φ400 mm
5. Output kg/24h: 12/14
6. 18/1600
7. 1840/3000
8. Size of pay off bobbin: 175 x 430 mm (8”)
9. Quantity of 8” bobbin: 32 x 4 or 32 x 3
10. Machine size: 9000 x 2200 x 2300 mm

Capacity	Output: 12/14 to 18/1600 kg/24h
Features	['High productivity', 'Low noise level', 'Timing belts power transmission', 'Auto stop after yarn breakage', 'Digital length counter meter', 'Door sensor', 'A/C drive', 'Direct coiling head winding']
Pay-off Bobbin Size	175x430mm

Motor power	11 kW
