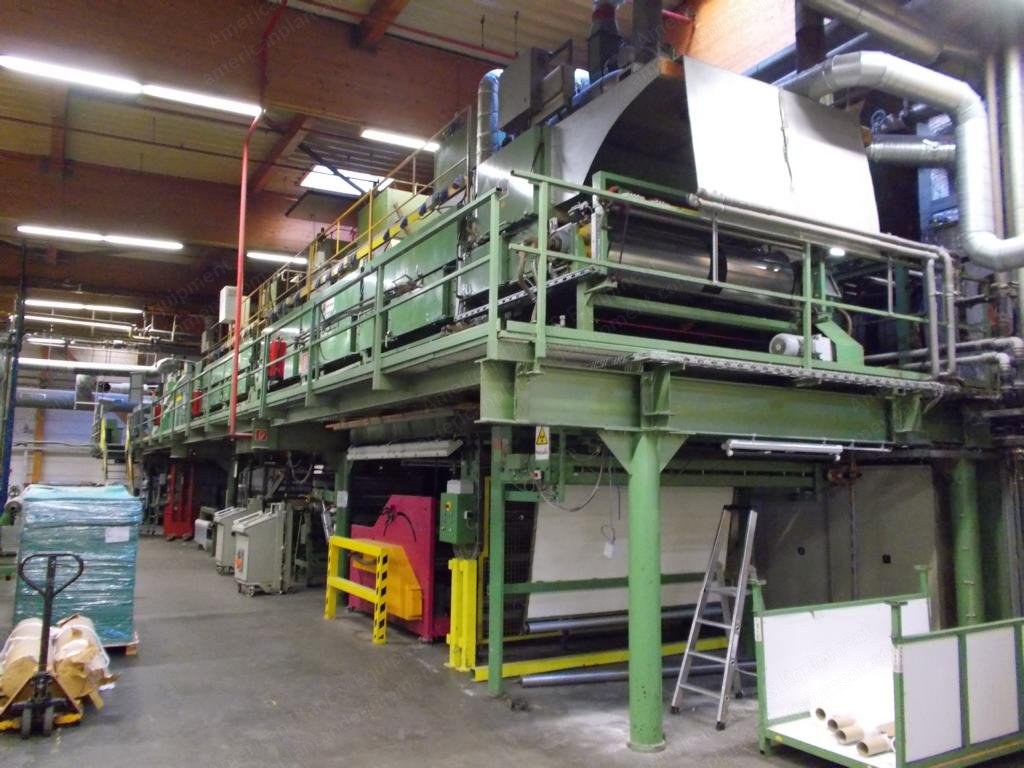

Caratsch-Zimmer, Magnoroll, 1990, Double Dot Coating Unit, 2000mm Fabric Width, Gas Heated

Caratsch-Zimmer, Magnoroll, 1990, Double Dot Coating Unit, 2000mm Fabric Width, Gas Heated

Description

  1. Overview
    1. Double dot coating unit
    2. Caratsch-Zimmer-Magnoroll with magnet squeegee
    3. Year: 1990 – last modernisation: 2010
  2. Composition
    1. Centre winder
    2. Feeding
    3. Area weight measurement Betacontrol
    4. Paste dot coating unit Zimmer
    5. Magnet squeegee system Magnoroll from 1990
    6. 2 centre winders
    7. Cooling Schaetti
    8. Sample punch unit Mahlo type Samplecut FSC-12
    9. Viscose measuring Prorheo from 2012
  3. Specifications
    1. Oven temperature max. 200 °C
    2. Oven length 1500 mm
    3. Fresh air
    4. Heating system gas
    5. Infrared heating
    6. Mechanical speed 6-80 m/min
    7. Fabric width 2000 mm guiding Gefiss
    8. Max. speed: 85 m/min
