Schlumberger, CPS-679, Offshore Cementing Pumper Skid with Remote Radiator, 15,000 psi, CUS-122 Surge Tank, with CBS-965 Twin 50 bbl Electric Batch Mixer Skid

Description

Overview
1. Brand: Schlumberger

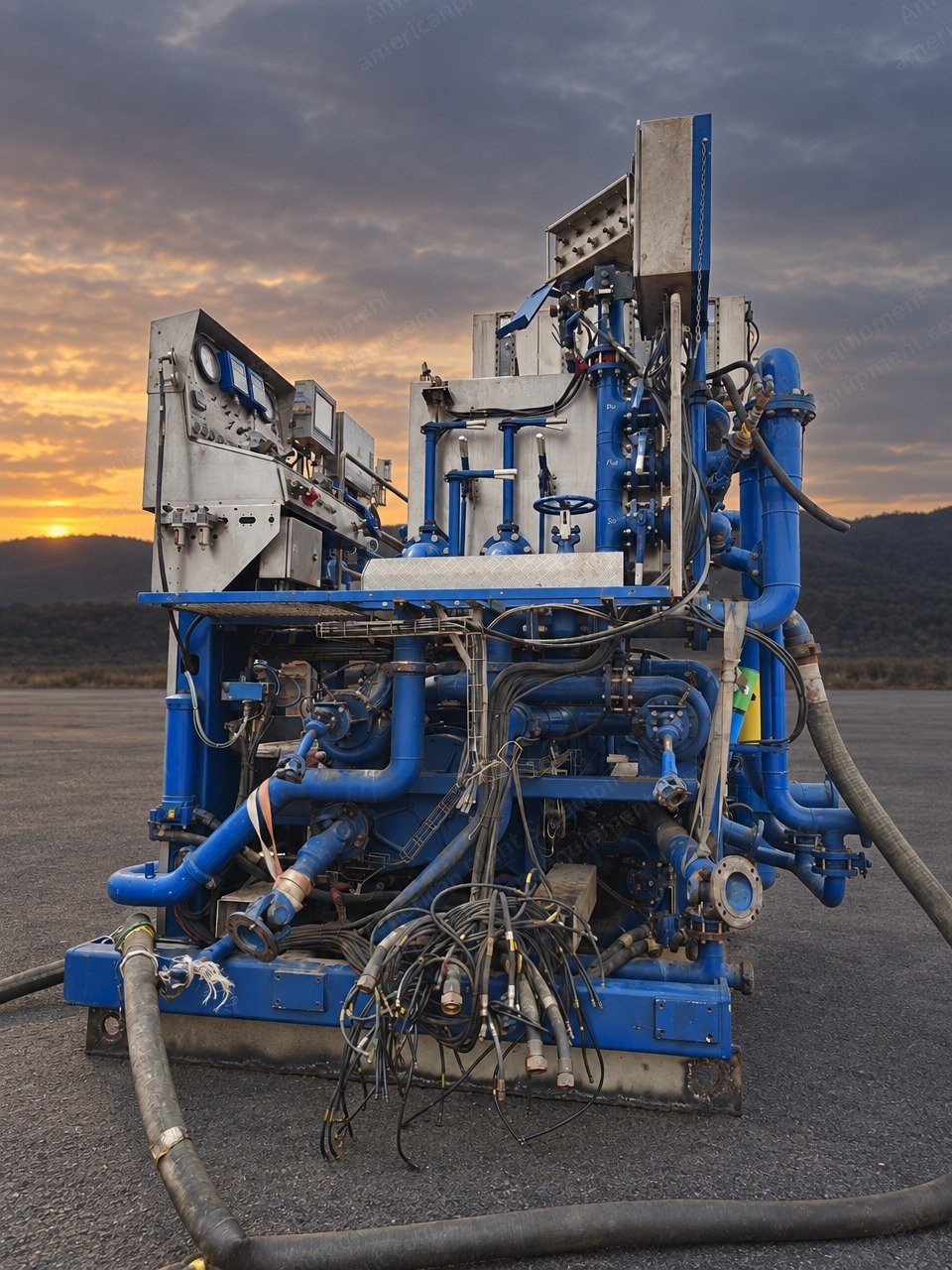

2. Model: CPS-679 offshore cementing pumper skid with remote radiator
3. Two-skid design: a power skid and a pump skid
4. Includes the CUS-122 surge tank and two 10 bbl stainless steel displacement tanks
5. Offered with a CBS-965 twin 50 bbl electric batch mixer skid
6. Condition: used, from a retired semisubmersible drilling rig
Pumper Skid Specifications (CPS-679)
1. Discharge manifold: 15,000 psi (103.4 MPa)
2. Displacement tanks: two 10 bbl (1,590 L), stainless steel 316
3. Surge tank: CUS-122, 80 cu ft (2.26 m3) total capacity, 70 cu ft (1.96 m3) usable
4. Overall dimensions (L x W x H): 330 x 122 x 145 in (8,350 x 3,090 x 3,630 mm)
5. Power skid (L x W x H): 125 x 120 x 125 in (3,120 x 3,025 x 3,100 mm)
6. Pump skid (L x W x H): 210 x 122 x 145 in (5,230 x 3,090 x 3,630 mm)
7. Overall weight: 67,245 lb (30,500 kg)
8. Power skid weight: 28,665 lb (13,000 kg)
9. Pump skid weight: 38,585 lb (17,500 kg)
10. Cooling: remote radiator
Batch Mixer Specifications (CBS-965)
1. Type: twin 50 bbl electric batch mixer skid
2. Length: 23 ft (7,010 mm)
3. Width: 8 ft 2 in (2,500 mm)
4. Height: 13 ft (3,945 mm) for transport with the railing down; 14 ft 4 in (4,380 mm) with the railing up
5. Weight (wet): 15 metric tons, unladen
To Be Confirmed
1. Year of manufacture, running hours of the pumper skid, the engines or electric drive and the pump models: requested from the seller
