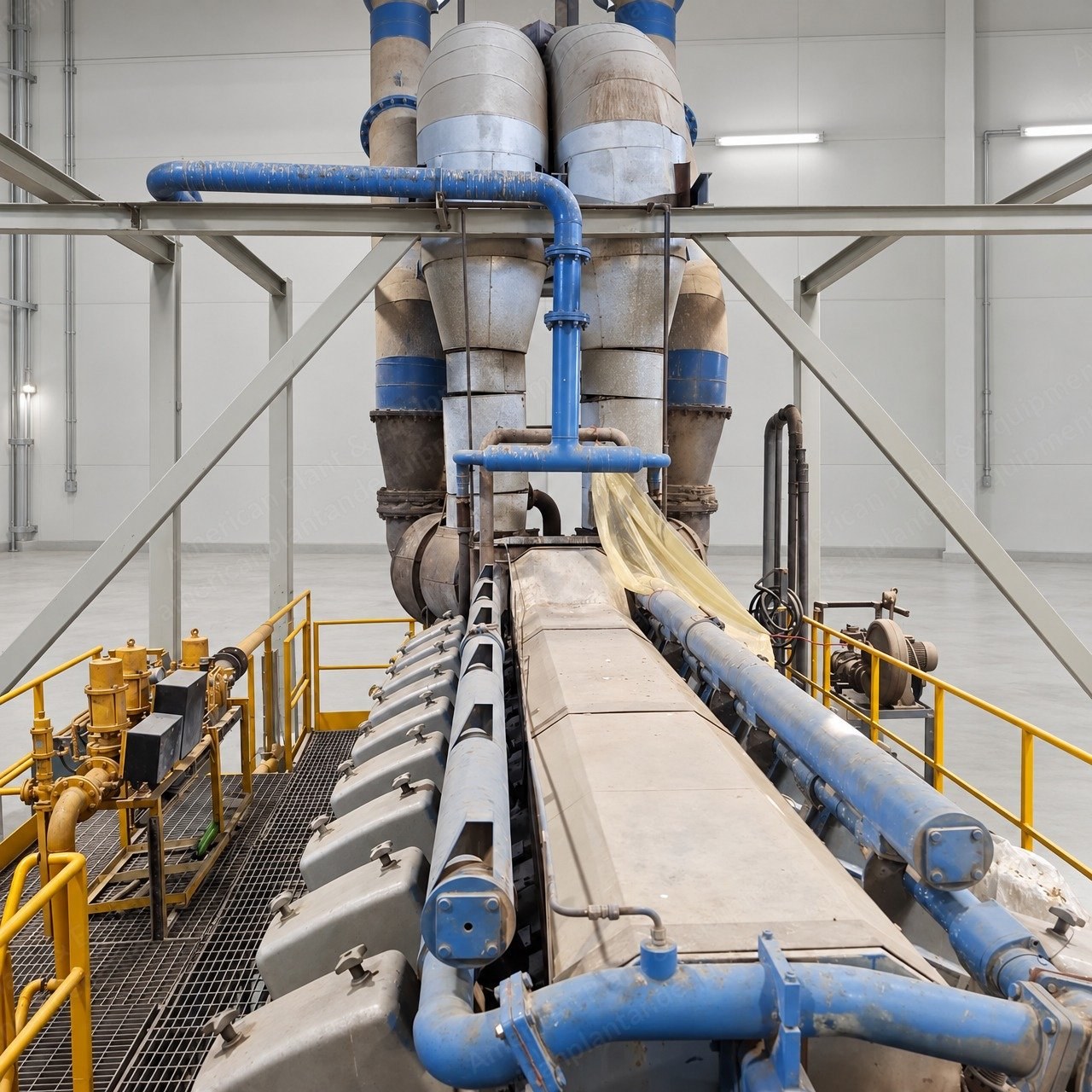

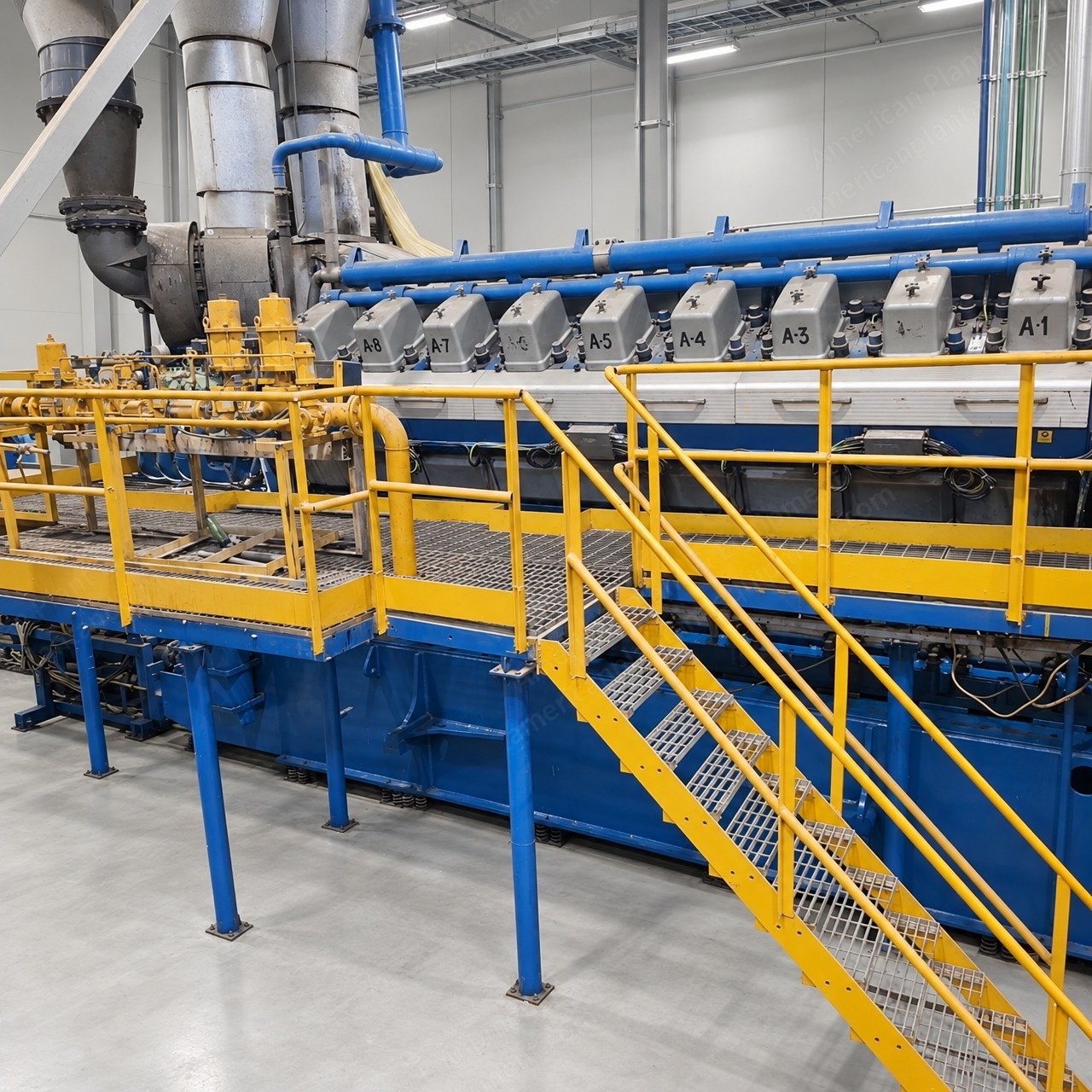

Wartsila, 18V32DF, 2009, 6.3 MW Dual Fuel Engine Generating Set, 11 kV, 50 Hz, 750 RPM

Wartsila, 18V32DF, 2009, 6.3 MW Dual Fuel Engine Generating Set, 11 kV, 50 Hz, 750 RPM

Description

  1. Overview
    1. Brand: Wartsila
    2. Model: 18V32DF dual fuel engine generating set
    3. Year: 2009
    4. Condition: used, 41,671 running hours
    5. Quantity: 1

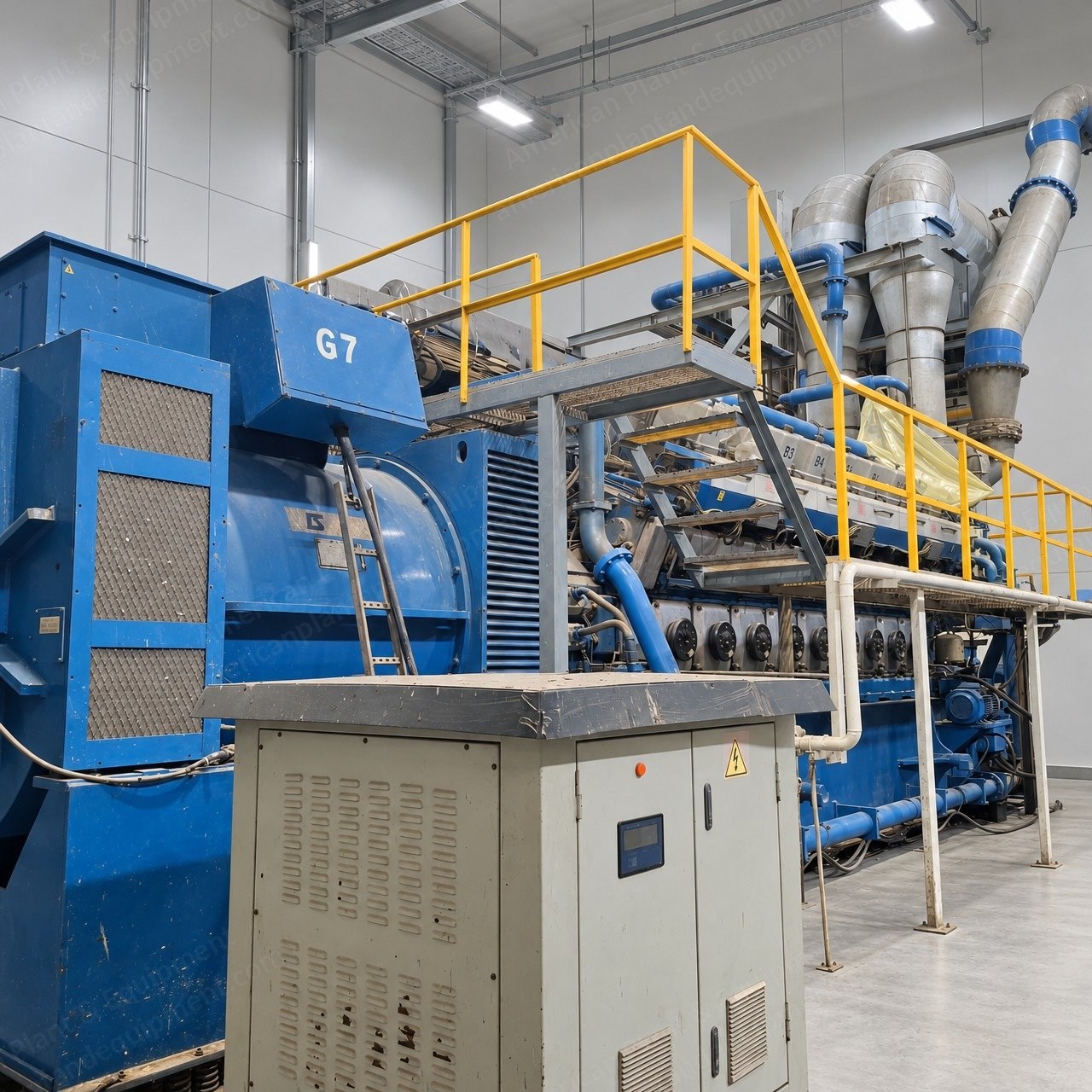

    6. Currently installed and operating; can be seen running on an inspection visit
  2. Specifications
    1. Output: 6.3 MW (6,300 kW)
    2. Voltage: 11,000 V
    3. Frequency: 50 Hz
    4. Speed: 750 rpm
  3. Maintenance
    1. 48,000-hour maintenance to the maker's scope, carried out at 41,634 hours (September to November 2022)
    2. Cylinder heads overhauled with new sealing kits; new piston crowns, rings and intermediate plates
    3. New main, thrust and big-end bearing shells; one new cylinder liner, all liners honed
    4. Injection valves overhauled with new nozzles; injection pumps, HT water pump and lube oil pump overhauled
    5. Overhaul report and maker data sheets available
  4. Scope of Supply

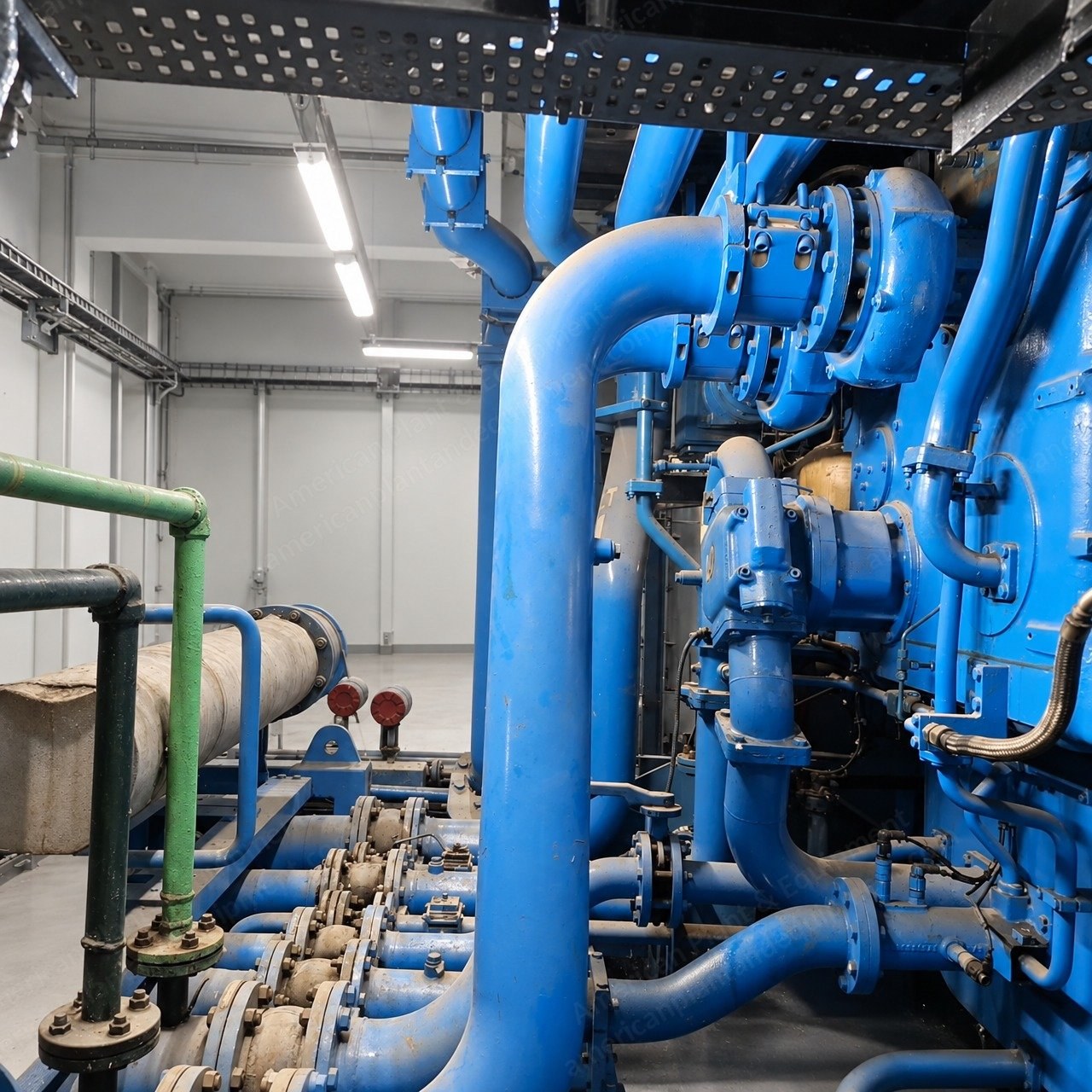

    1. Complete engine with all auxiliaries and piping networks

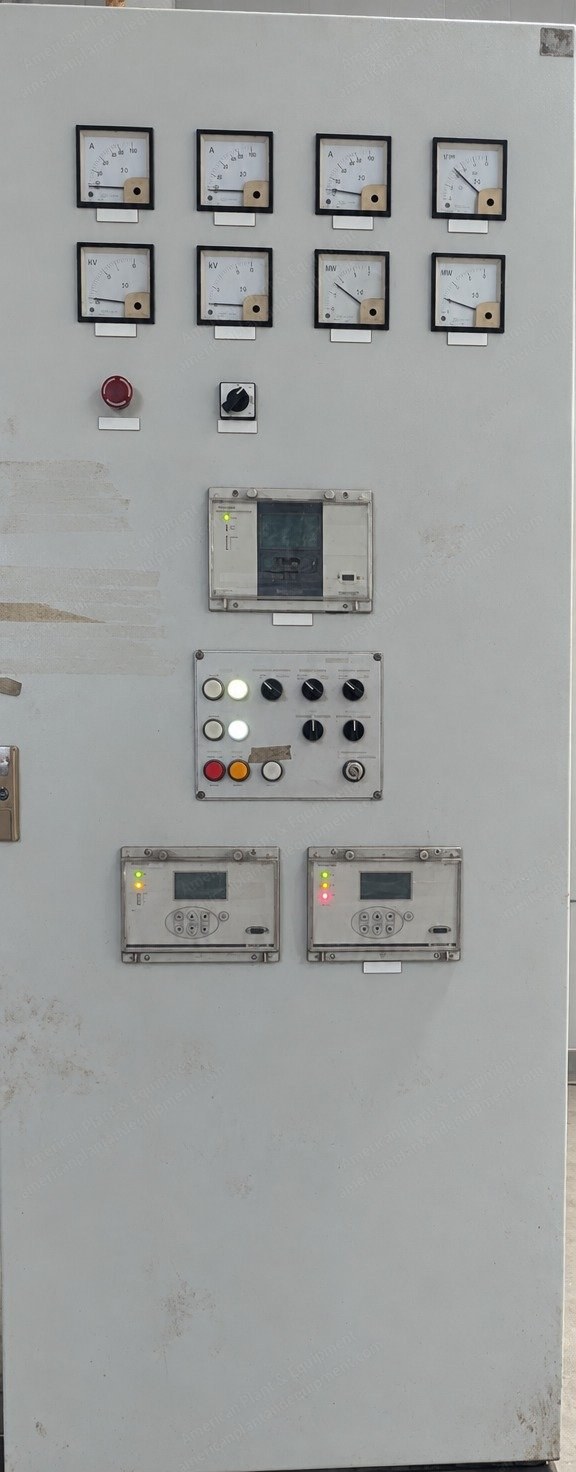

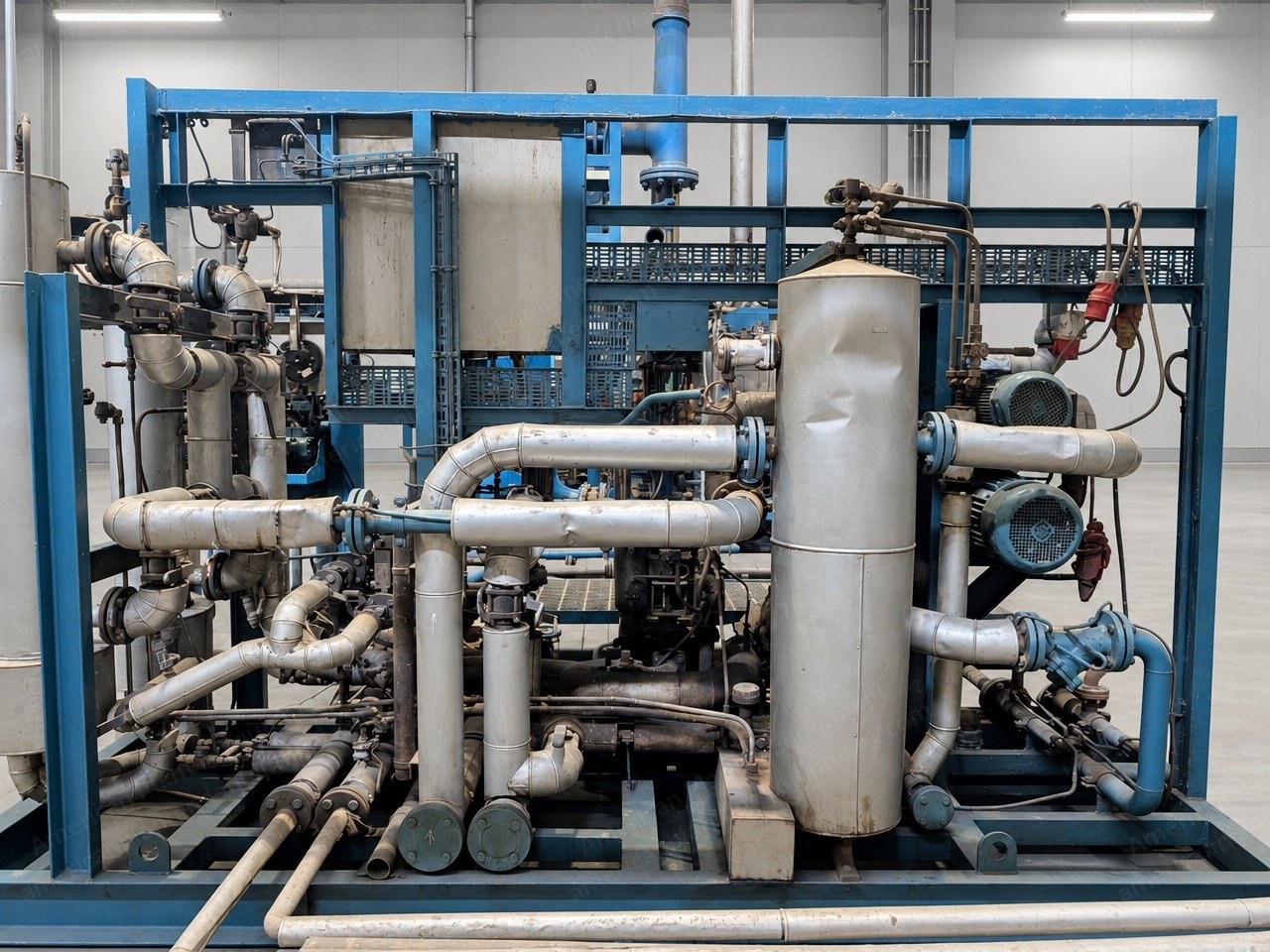

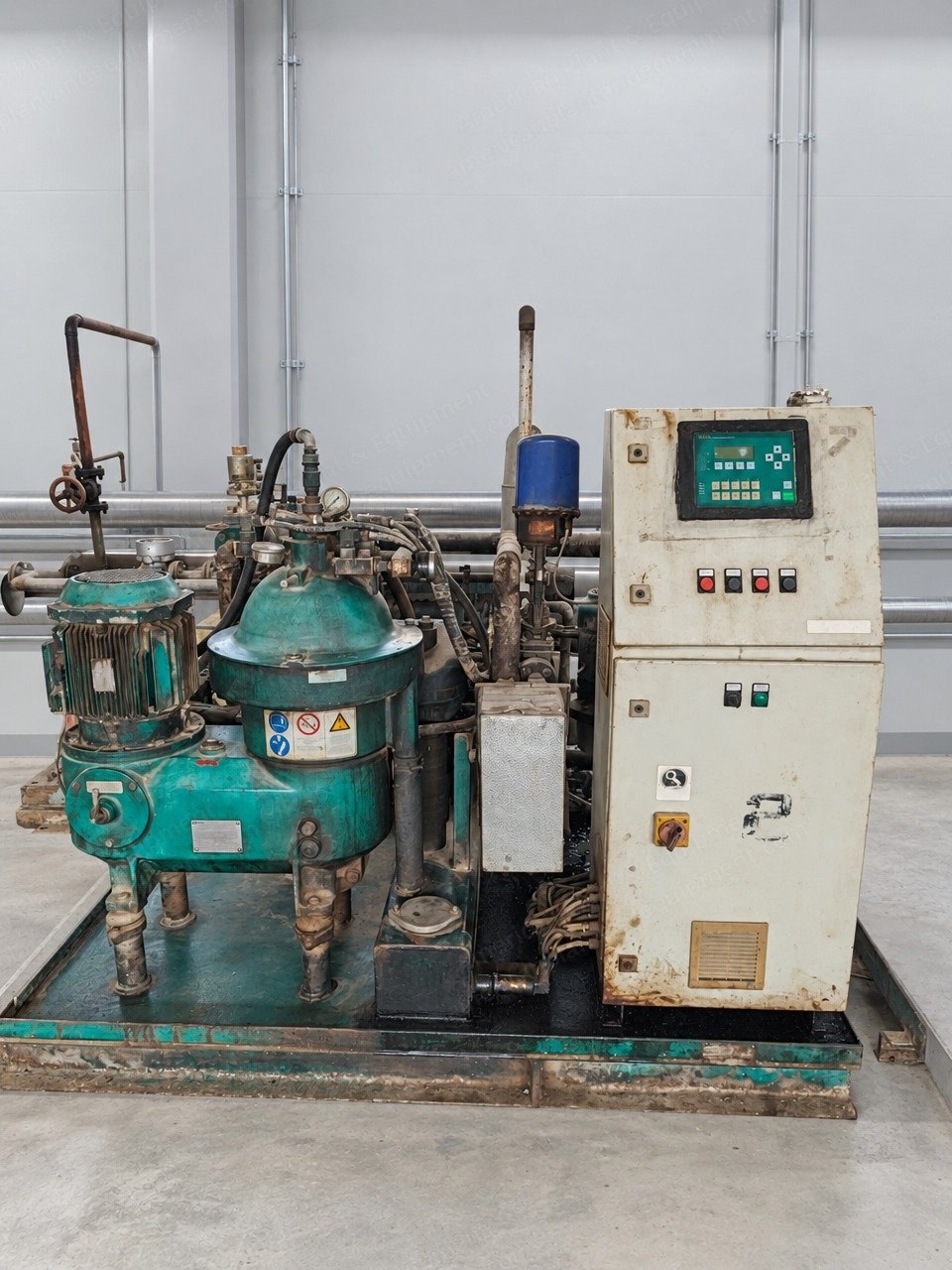

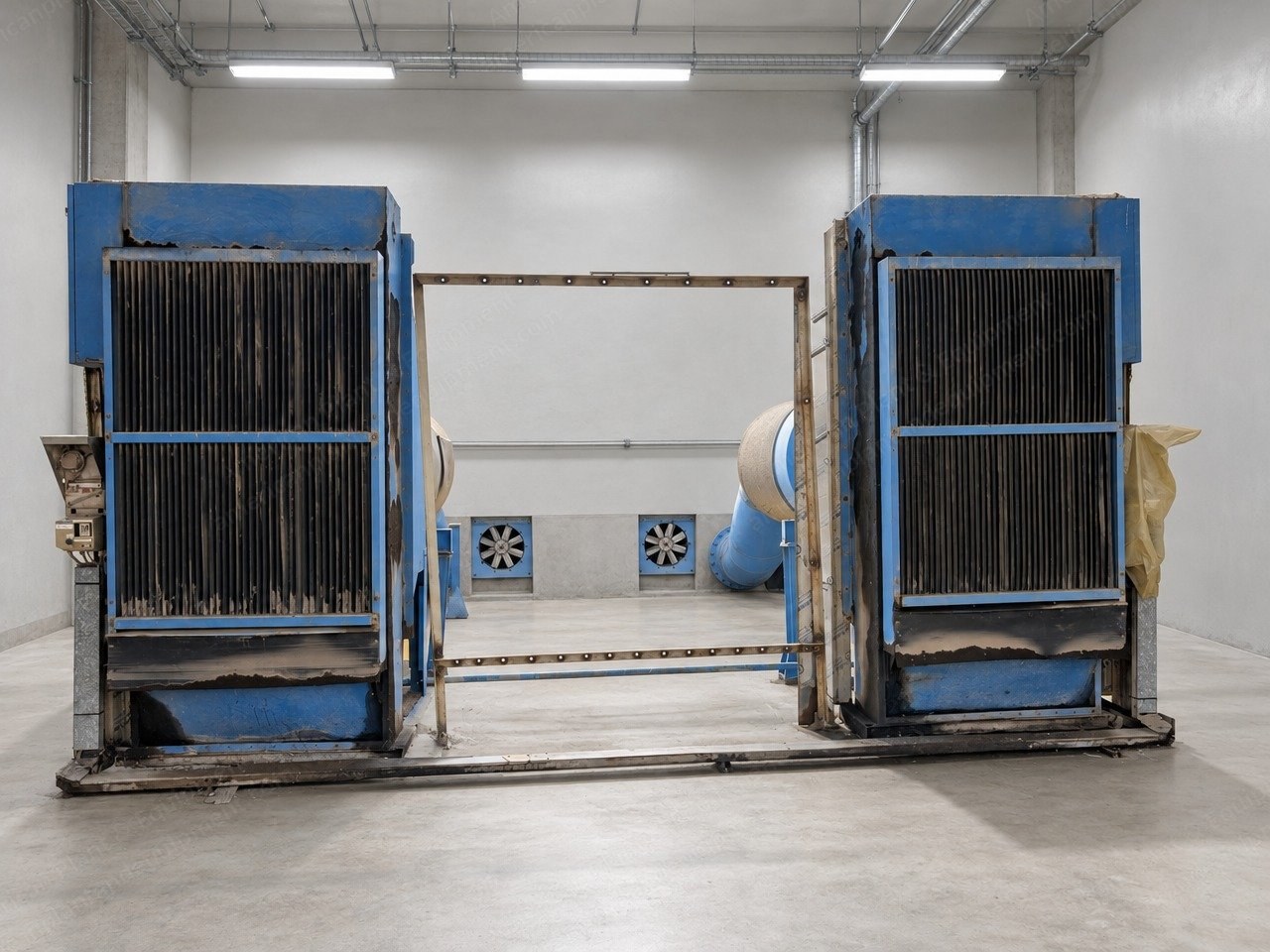

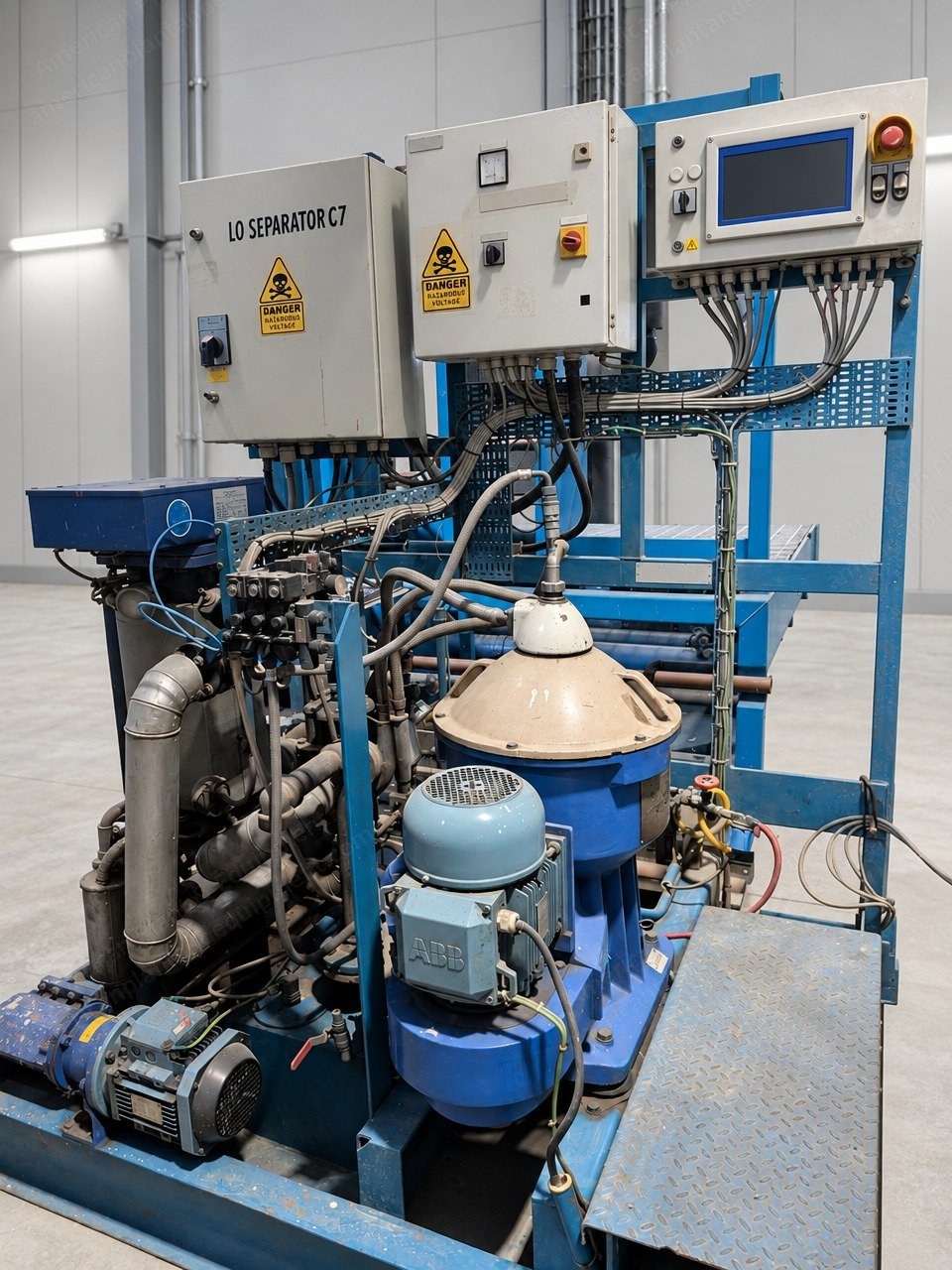

    2. Auxiliaries shown: engine control panel, HFO booster panel, lube oil and HFO purifiers, oil bath filter, radiator
