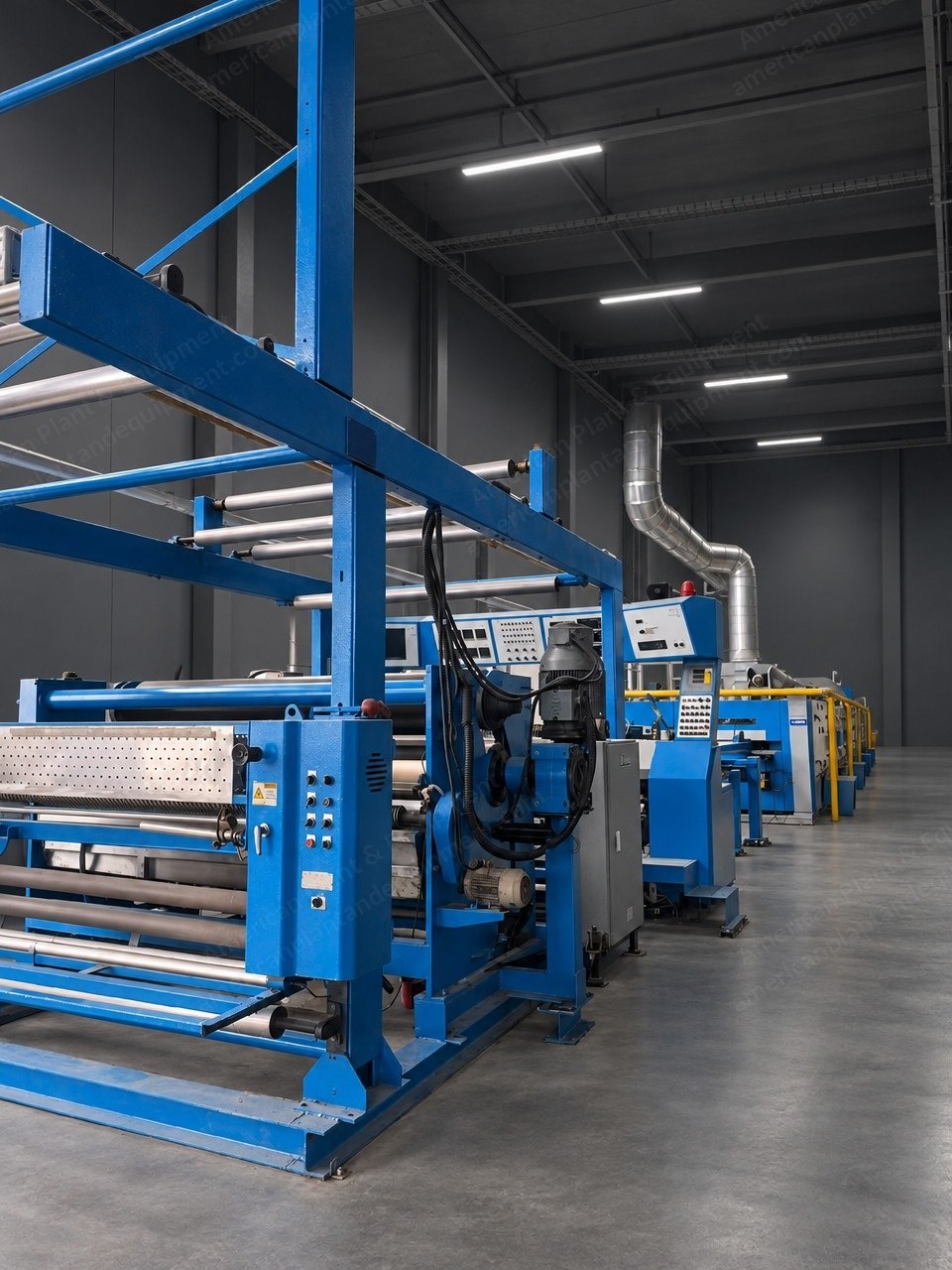

Ehwha, Platinum, 2010, Stenter, 2,000 mm Working Width, 8 Chambers, Gas Heated, Weft Straightener, Center Padder

Ehwha, Platinum, 2010, Stenter, 2,000 mm Working Width, 8 Chambers, Gas Heated, Weft Straightener, Center Padder

Description

  1. Overview
    1. Brand: Ehwha
    2. Model: Platinum tentering machine (stenter)
    3. Built: June 2010
    4. Condition: used
  2. Specifications
    1. Working width: 2,000 mm (78.74 in)
    2. Roller width: 2,200 mm (86.6 in)
    3. Chambers: 8, each 3 m (9.8 ft) long, 24 m (78.7 ft) in total
    4. Heating: gas
    5. Machine speed: 10 to 100 m/min (33 to 328 ft/min)
    6. Power supply: 380 V AC, 3 phase, 50 Hz
    7. Electric capacity: 186 kW (249 hp) maximum, 139 kW (186 hp) normal
  3. Equipment
    1. Weft straightener
    2. Center padder
    3. Horizontal chain
