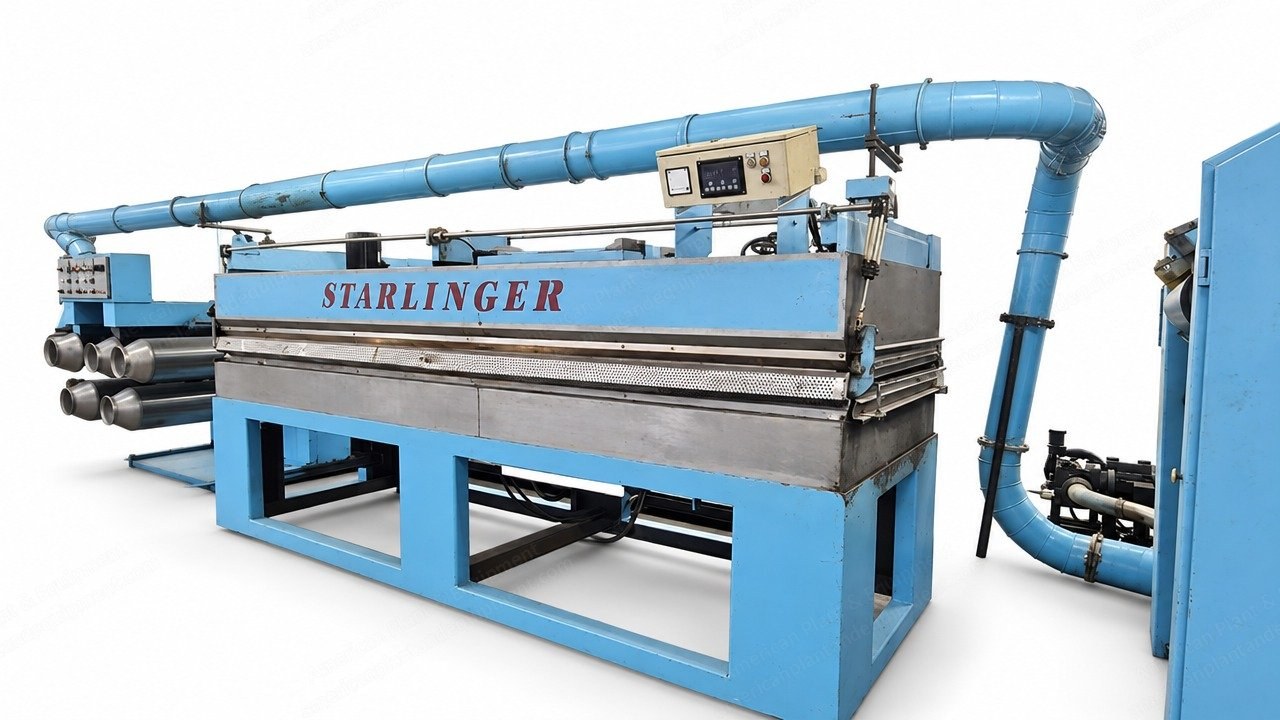

Starlinger, Starex 1000 Master-90/30 D, 1995, PP Tape Extrusion Line, 1000 mm Die, 300 kg/h, Siemens 170 kW Drive, Dismantled

Overview

1. Starlinger Starex polypropylene tape extruding line

2. Year of manufacture: 1995

3. Type: 1000 Master -90/30 D

4. Dismantled

Specifications

1. Motorized mixer with 100 kgs per mix capacity

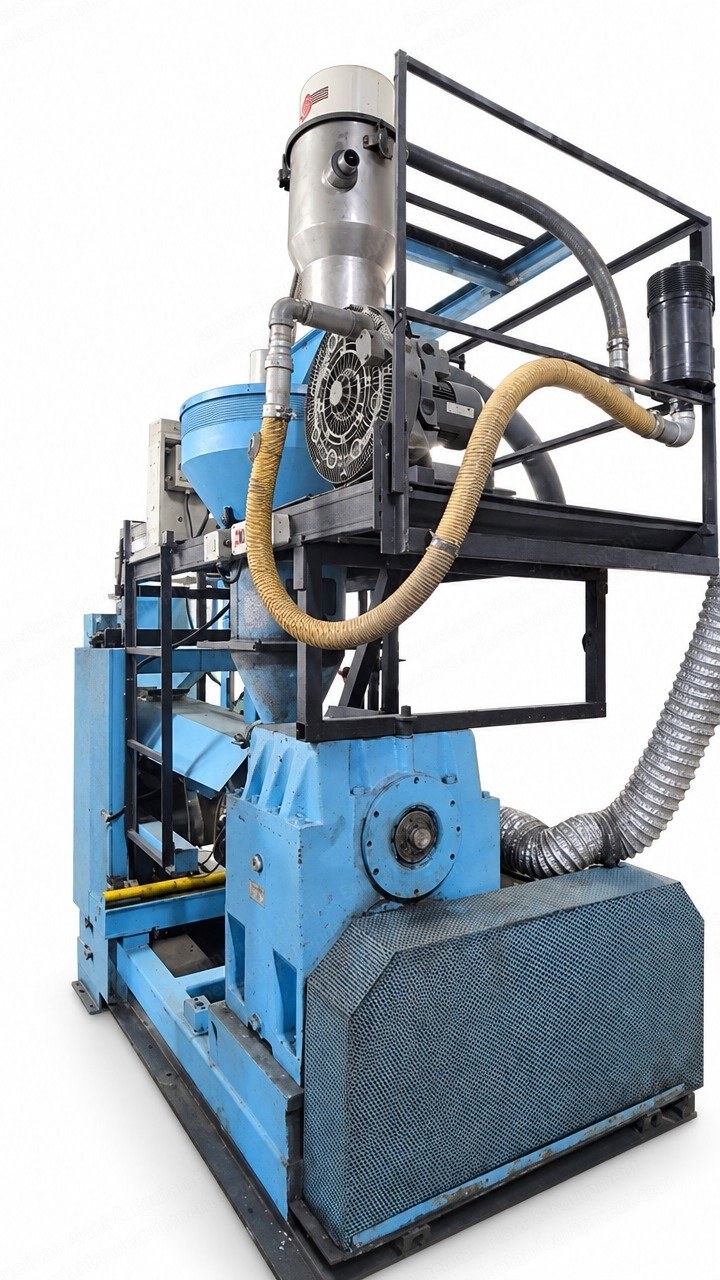

2. Dosing unit with hopper 100 kgs (220 lb) capacity, sensor operated, vacuum type

3. Main motor/drive: Siemens, 3 phase, 170KW (228.0 hp)

4. Screw and barrel: Ave 3500 kgs/day capacity, polypropylene on fine tape

5. Heavy tape: 5/6.000 kgs/day

6. Die: hanger type, 1000 mm (39.4 in) plastic flow width

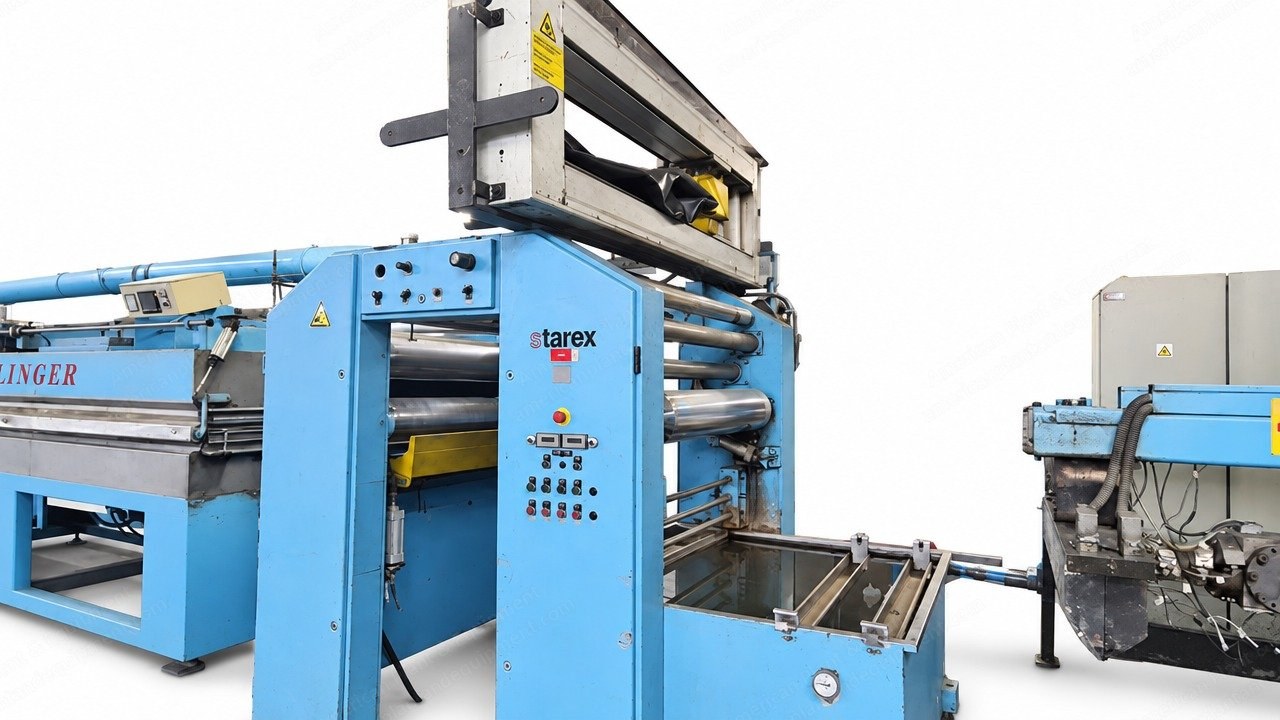

7. Water bath: cooling system, closed circuit 1000 L (264.2 gal) capacity

8. Cutting device: 1000 mm (39.4 in) plastic flow width capacity, ring tape spacers

9. Oven: hot air blower type, 58KW (77.8 hp)

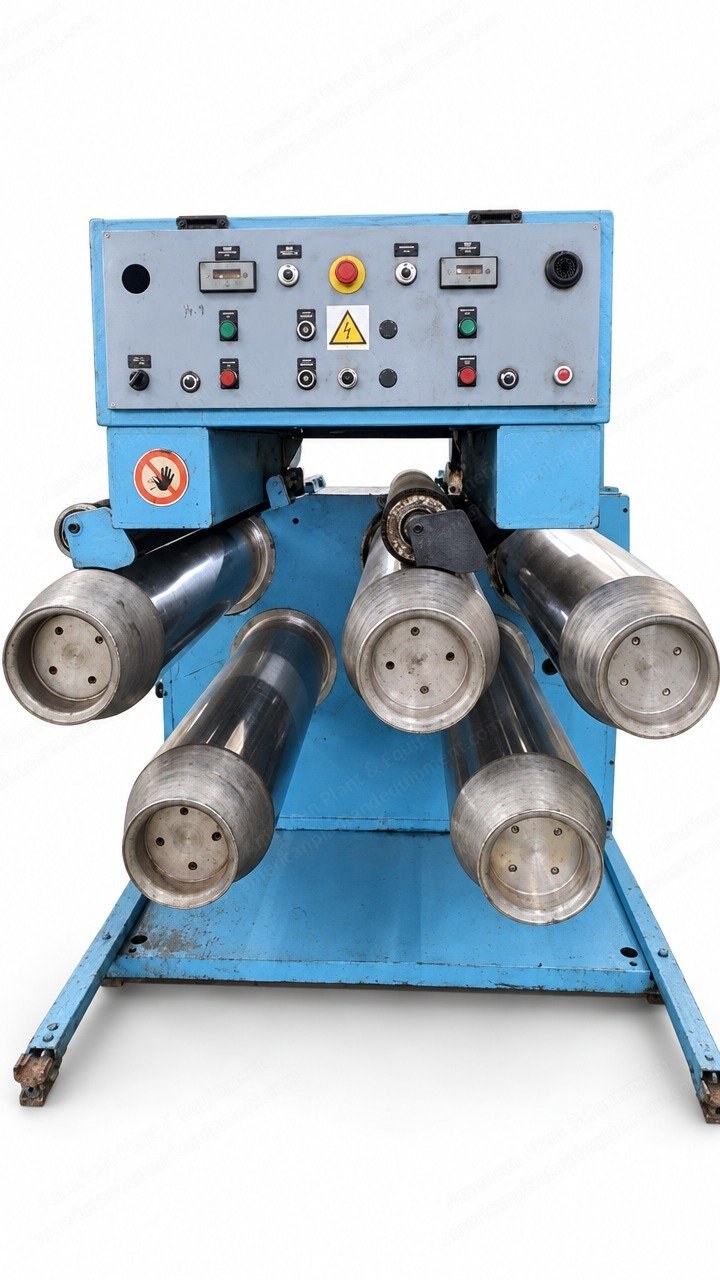

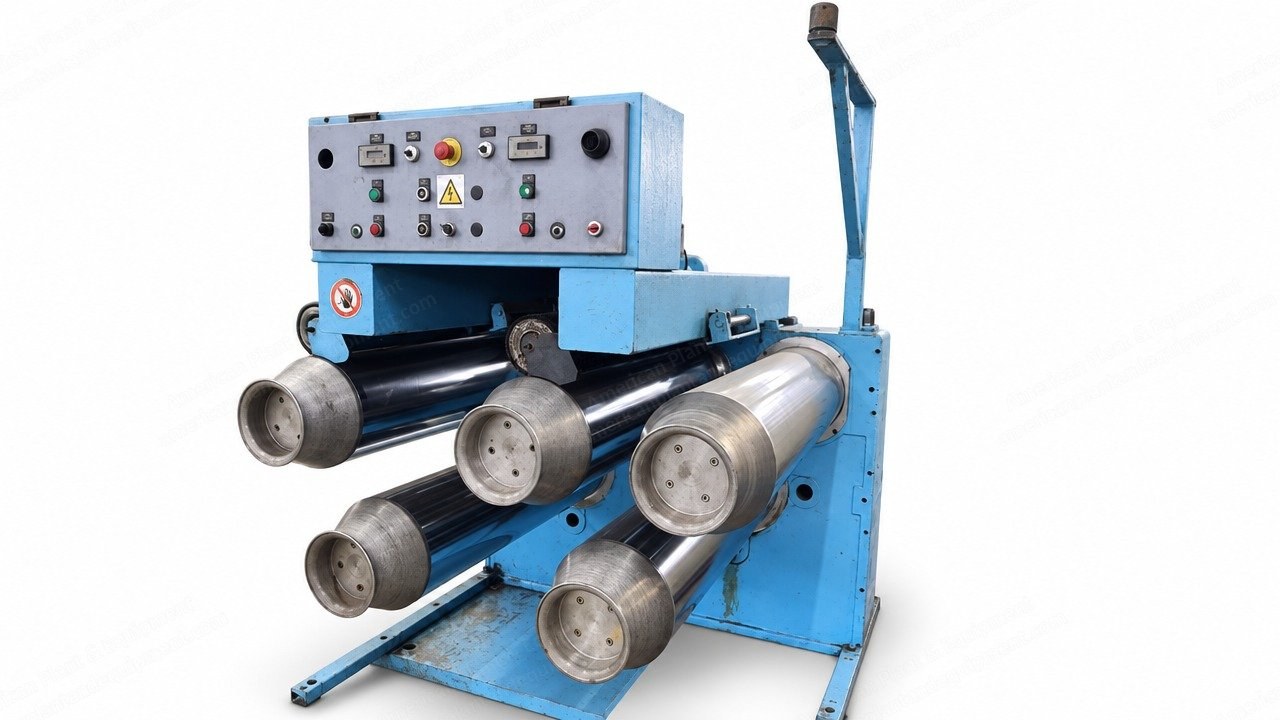

10. Goddets: 1 x segment godet from stretching unit to annealing, 5 x rollers, oil heated

11. Tape suction unit: 2 x motor covering 1st godet to the last, 2 x entry

12. Cutting mill/chipper unit: 1.7 KW (2.3 hp) rotor type blades, single feed to hopper

Output

1. Actual output: 300 kgs/hour
