Vesseltech Engineering, Dust Cyclone, 2010, for Barite, Bentonite and Cement, 450mm OD, ASME VIII, 198 Liters, Surplus Crated

Name: Vesseltech Engineering, Dust Cyclone, 2010, for Barite, Bentonite and Cement, 450mm OD, ASME VIII, 198 Liters, Surplus Crated
Brand: Vesseltech Engineering
SKU: SE-1126

‹ Go Back Next Product ›

Description

Overview
1. Brand: Vesseltech Engineering
2. Type: dust cyclone for barite, bentonite and cement (bulk-handling system on a drilling rig)
3. Year: 2010
Specifications
1. Tank size: 450 mm (17.7 in) OD x 919 mm (36.2 in) straight height x 900 mm (35.4 in) cone height
2. Contents: barite / bentonite / cement
3. Design code: ASME Section VIII Division 1, 2007 edition + 2009 addenda
4. Design pressure: 66 psig / 455 kPa at 122 F / 50 C
5. Test pressure: 85.8 psig / 592 kPa
6. MAWP: 66 psig / 455 kPa at max. 122 F / 50 C and min. 14 F / -10 C
7. Volume: 52.3 US gallons / 198 liters
8. Dry / operating weight: 234 kg (516 lb) / 502 kg (1,107 lb)
9. Third-party inspection: ABS
Condition
1. Surplus, crated in its original supplier packing

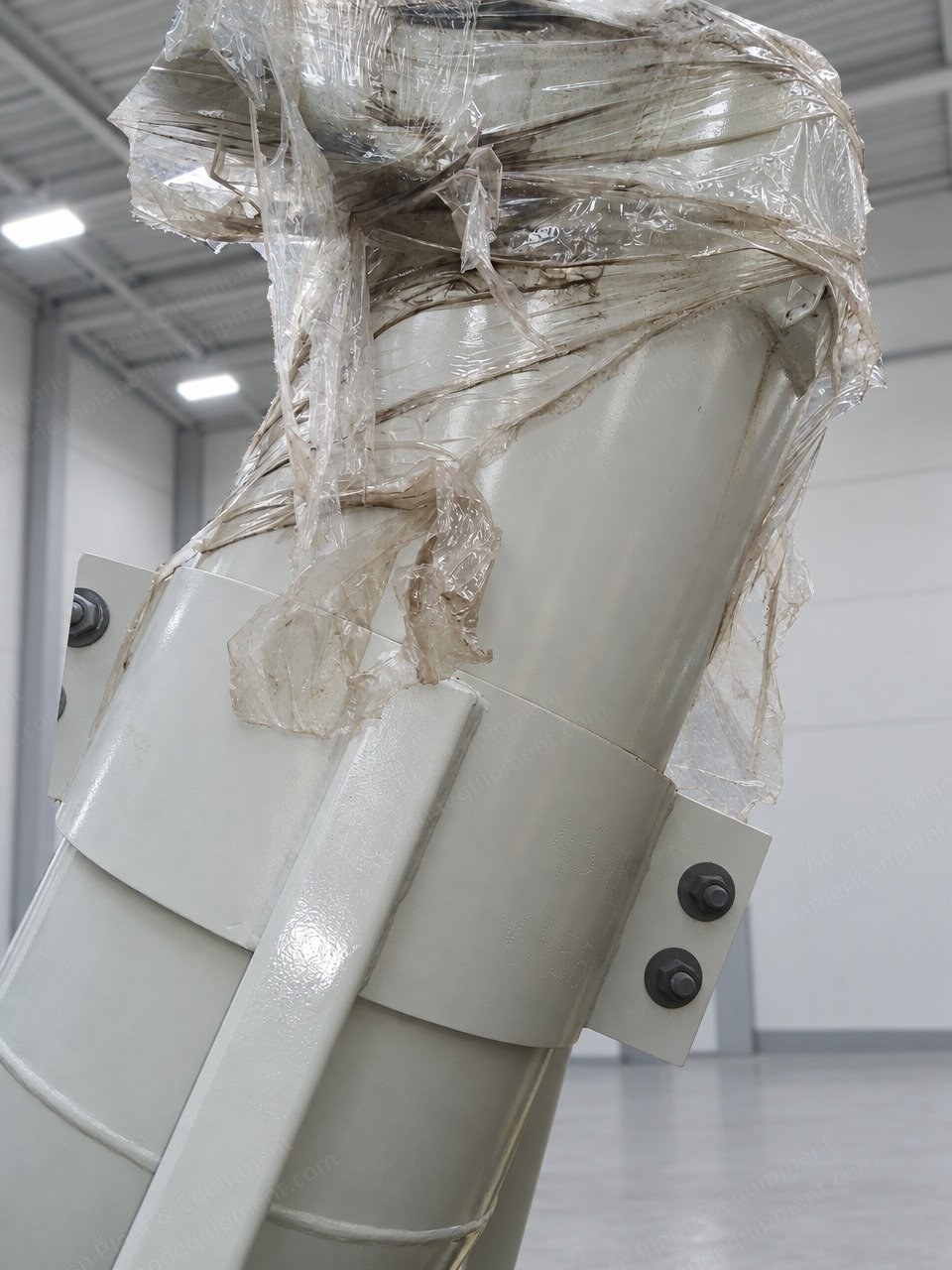

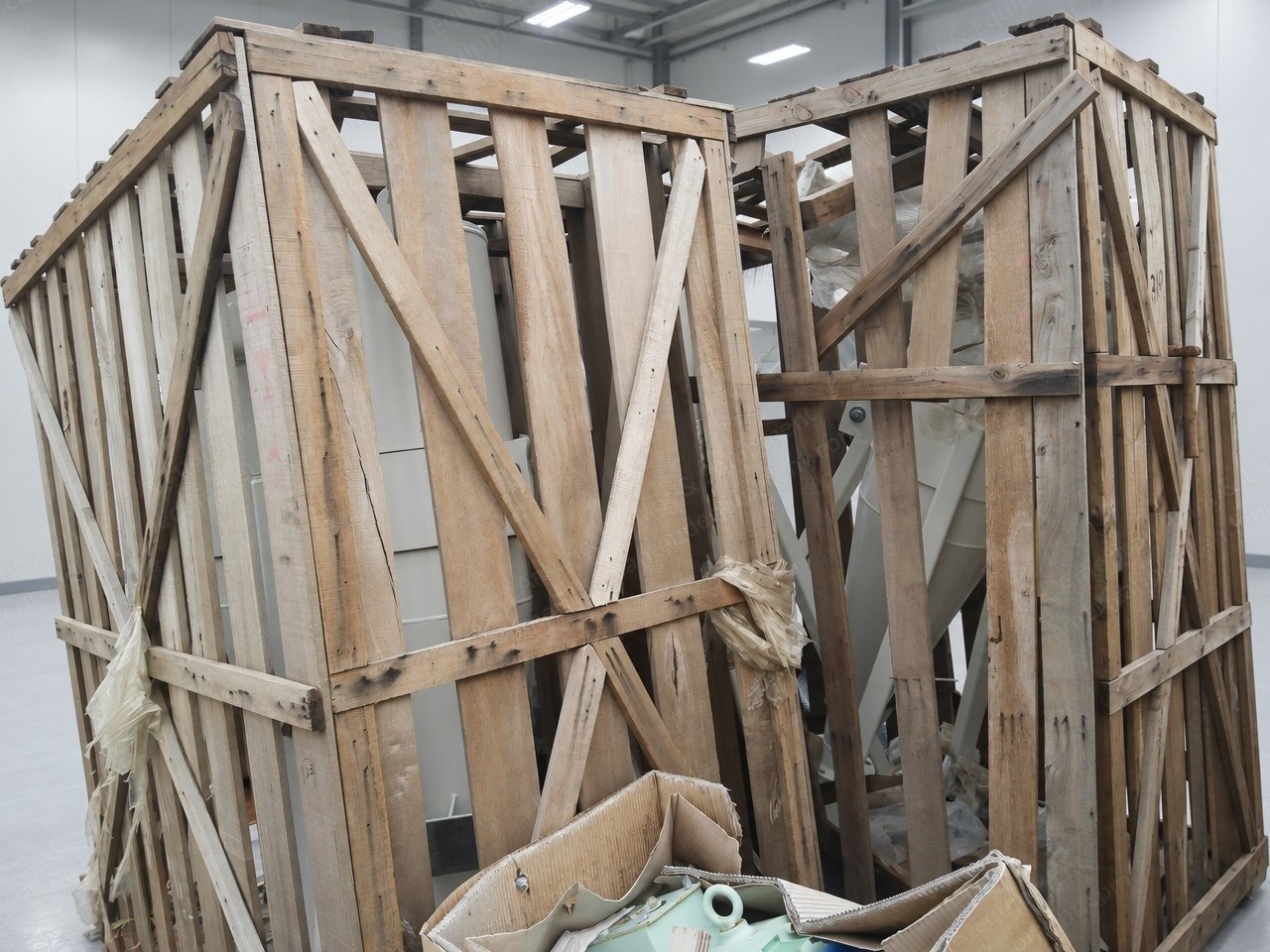

2. The crate is labelled "Cyclones" and the photos show two cyclone bodies inside; number of units to be confirmed
Packing
1. Crate dimensions: 2.25 x 1.35 x 2.50 m (88.6 x 53.1 x 98.4 in) (L x W x H)
2. Net weight: 560 kg (1,235 lb)
3. Gross weight: 750 kg (1,653 lb)

Dimensions	450 mm (17.7 in) OD x 919 mm (36.2 in) straight height x 900 mm (35.4 in) cone height
Weight	234 kg
