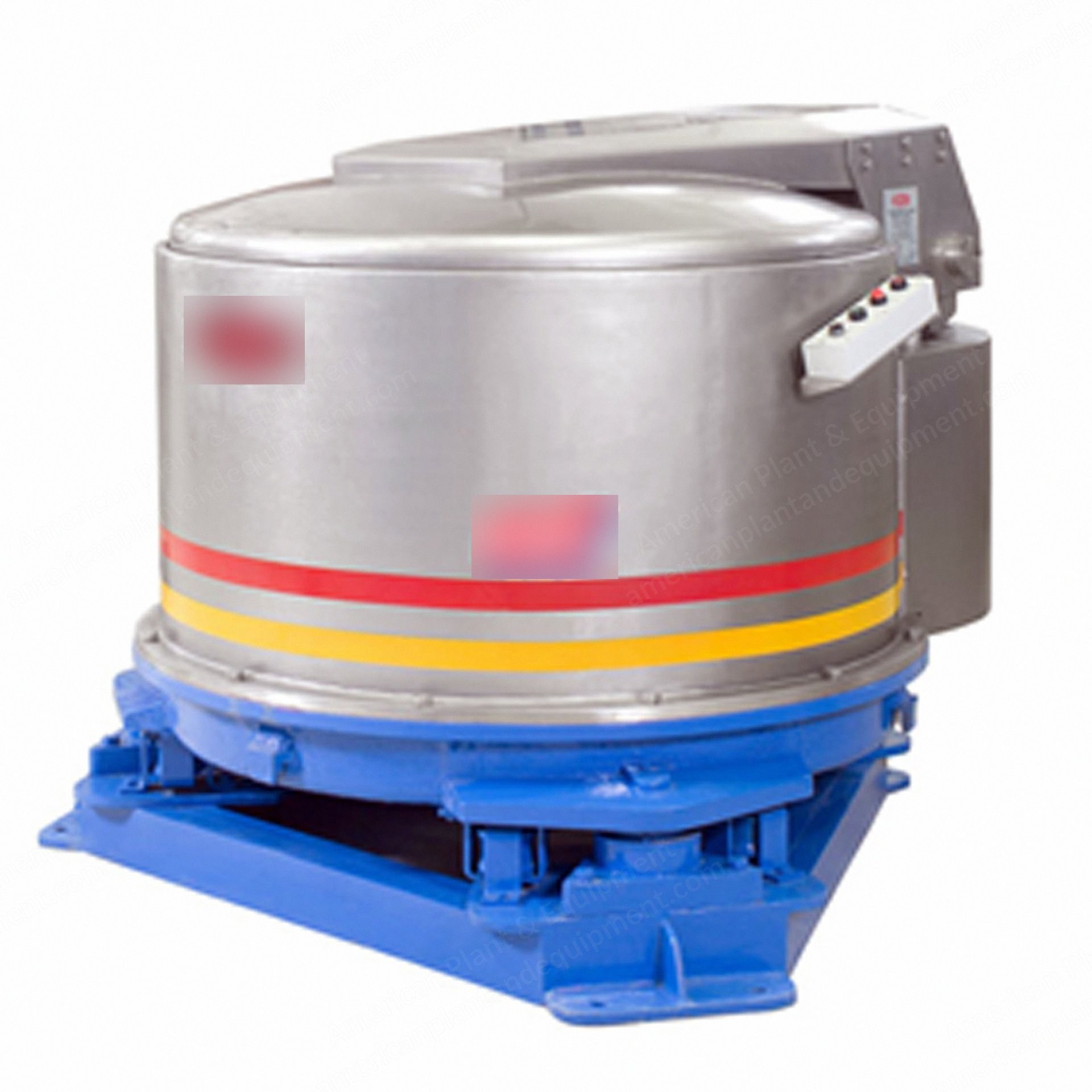

NovaStar, DG605, Capacity 250 kgs, Drum 1250x600mm, 22 kW (New)

NovaStar, DG605, Capacity 250 kgs, Drum 1250x600mm, 22 kW

Description

  1. Overview
    1. Model DG605 is designed full-automatic for extraction of garments at high performance with minimum consumption of energy and time.
    2. Machine capacity: 250 kgs
    3. Drum volume: 736 liters
    4. Drum dimensions: 1250 x 600 mm
    5. Installed power: 22 kW
    6. Weight: 2000 kgs
  2. Main Technical Features
    1. New generation hydro-dynamic inner drum construction of 8 mm thickness
    2. Inner and outer drum made of stainless steel
    3. Stainless steel basket inside the inner drum which is removable with the help of a monorail crane – which can be supplied upon request
    4. 1 extra basket and trolley provided for easy loading and unloading
    5. Stainless steel double doors opening and closing automatically due to pneumatic pistons
    6. Inner door turning with the inner drum is locked with double locks
    7. Double sensor system for double safety during the operation
    8. Power transmission is through inner motor without belt providing to cease completely the vibration and noise during the operation
    9. Operation time is 4-10 minutes
    10. Adjusting of time is made electronically with a control panel
    11. Speed of operation is adjustable in range of 10-1300 r.p.m.
    12. Extraction process runs automatically and the speed increases slowly under the control of Fuji branded inverter in order to keep the energy consumption at the minimum level
    13. Special electromagnetic breaking system developed by NovaStar engineers providing decreasing the speed of the machine gradually
    14. Siemens, Finder, Telemecanique branded electrical components
  3. Technical Description
    1. Electro-welded steel structure, sandblasted and painted with special rustproof paint
    2. Aisi 316 l stainless steel casing, fixed to the frame
    3. All parts in contact with wet garments are produced by stainless steel
    4. Special over-sized bearings
    5. This machine is supported with special electric and pneumatic systems; the electric system is protected by a fan against over-heating and humidity
    6. This machine is built in accordance with the CE-73-23-CEE norm and is entirely manufactured in in NovaStar production facilities
  4. Controlling System
    1. This machine is controlled by the electronically controlled panel with software entirely developed by NovaStar engineers in order to control all the machine functions and machine process fastly and easily
    2. Due to inverter, the operation time and speed of the machine can be controlled
    3. The control panel is very comfortable to use as it provides clear information for the operator
