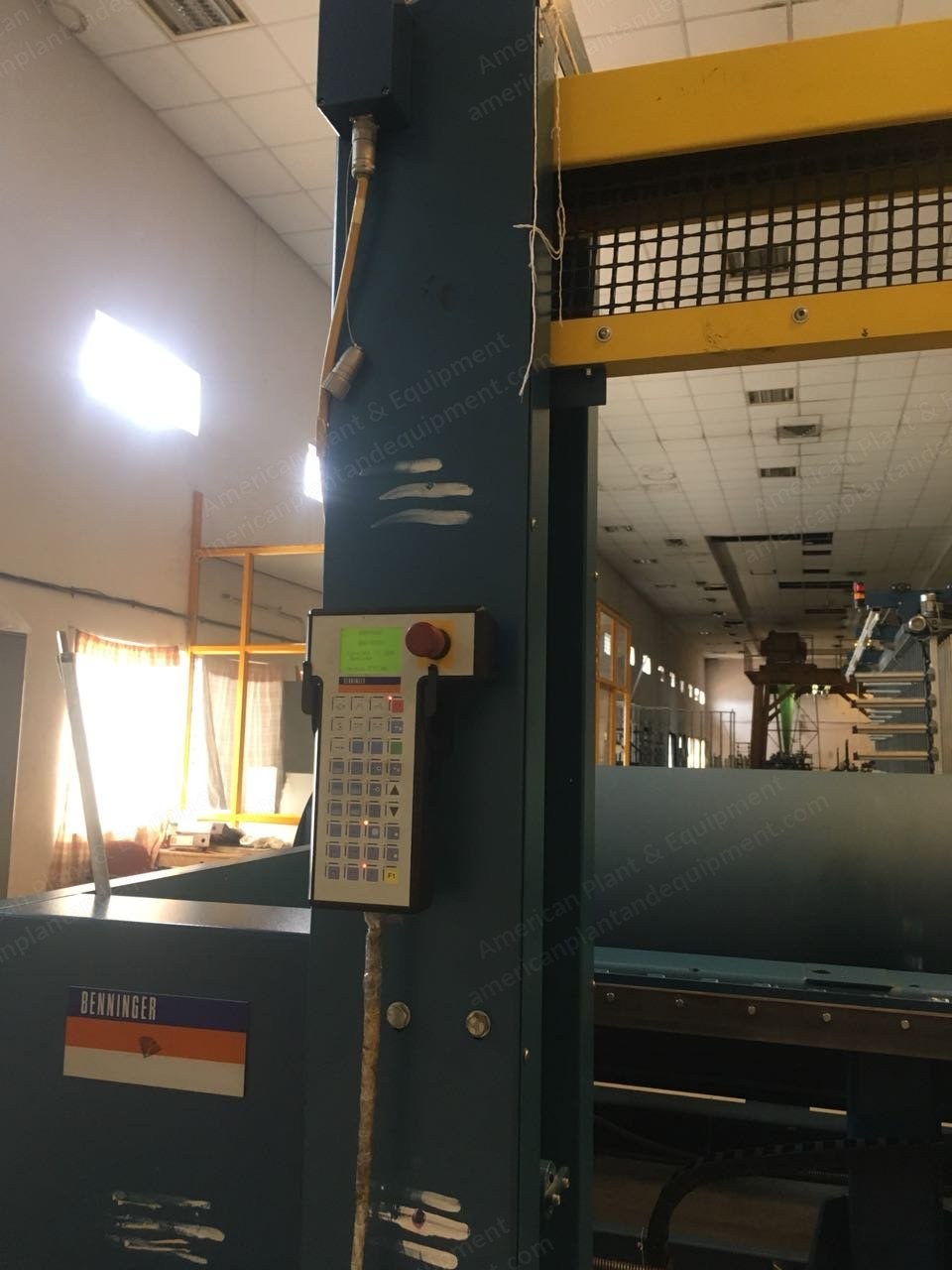

Benninger, Bentronics, 2006, 3400mm Working Width, 800 m/min Max Speed, 672 Creel Positions

Benninger, Bentronics, 2006, 3400mm Working Width, 800 m/min Max Speed, 672 Creel Positions

Description

  1. Overview

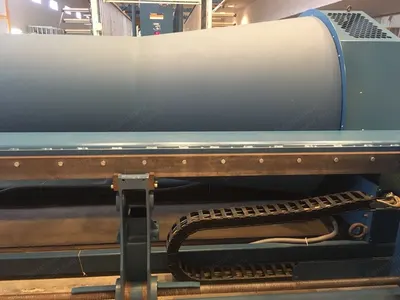

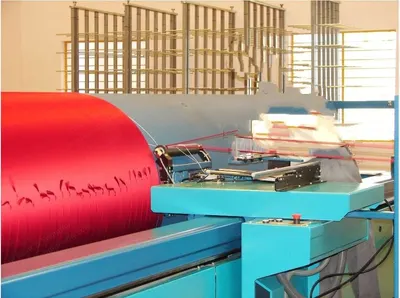

    1. Benninger high speed warping machine
    2. Type Bentronics
    3. GP-W/Isoterns 720
    4. Year: 2006
  2. Specifications
    1. Working width: 3400 mm
    2. Sectional warping drive: 24 V DC
    3. Maximum section speed: 800 m/min
    4. Beaming drive: 22 kW @ 1500 mpm

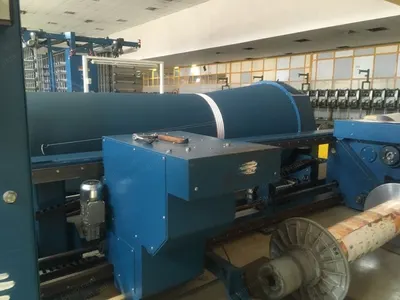

    5. Drum cone height and length: 350 / 1200 mm
    6. Maximum section width: 500 mm
    7. Maximum sectional warping tension: 600 N
    8. Maximum warp beam flange diameter: 1000 mm
    9. Voltage (phase): 400 V
    10. Frequency: 50/60 Hz
    11. Air consumption @ min. 10 bar: 10 Nm³/h
    12. Main power supply: 42 kVA

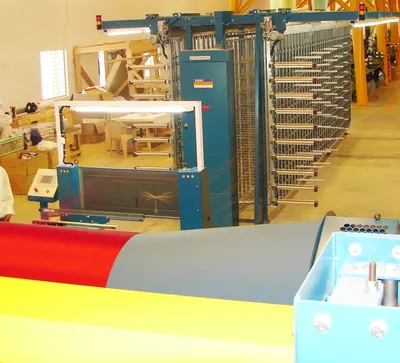

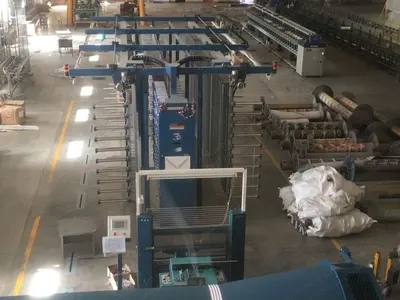

  3. Creel And Leasing
    1. Ben creel type GP-W
    2. Trolley type creel no for cone: 672 nos
    3. Pitch: V – 200 mm
    4. Leasing device type: Eltex
    5. Leasing power: 24 V DC

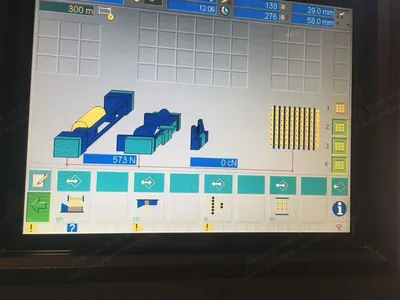

  4. Measurement And Display
    1. Warp and piece length in: mtrs, yards
