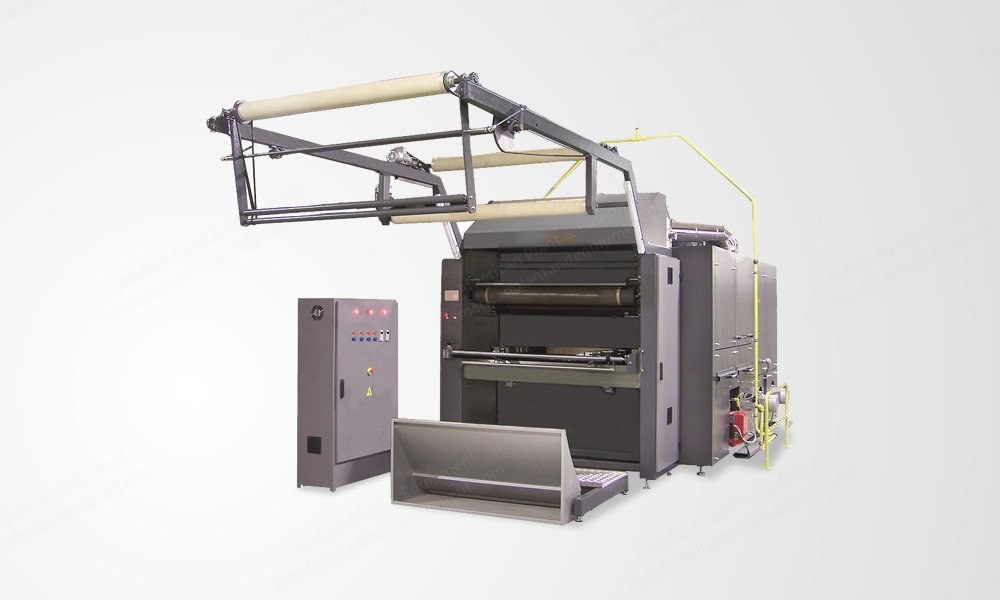

This machine can eliminate the time and cost for slitting, opening the fabric and heat setting in the stenter machines, sewing processes after the heat setting.
Fabrics which obtain of Lycra spandex yarn its necessary before the dyeing process, to pass by Superfix - T4 thermosetting which designed for eliminating the tension which is caused from mixture of yarns of raw knitted tubular fabrics, this is will fixed the fabric in better form and prevents the deformation and un leveling caused while in the dyeing process.
You can work with raw or dyed fabrics on this machine for all kind of fabric which include cotton, polyester, viscose etc. with Lycra.
The heating system for the thermosetting machine can be operated by thermo oil heat system or gas heat systems.
The fabric moved from trolley to J-box. The fabric will move through the fixed width stretcher for 4-meter distance in the 1st step. And by the means of the linear meter controller to optimize the fabric elongation, the fabric will arrive to the 2nd step over the conveyor belt in the upper level stage to pass through. In the second unit, the fabric goes 4 meters and comes to the plaiter unit by the means of the second linear controller.
General Features
Magnetic stretcher produced from supported special alloy aluminum pipe.
Photocell controllable J-box for the downward flow of the fabric.
Photo cells for detecting the rips.
Conveyor belt obtained by Teflon yarn for relax fixing.
There are 2 linear meters for synchronization and to avoid the minimum elongation.
Special designed cylinder covered mixed nonwoven material for eliminations edge marks lines.
Special designed silicon wheels for the stretcher unit.
There are 2 burners Riello or equivalent brand.
The air circulation system obtained by 2 pcs x 4 kW and nozzle arrangement in each chamber.
The 4 fans can be controlled its speed by inverter.
The air circulation thus is equally distributed in the whole chamber.
Fresh air will be supplied for each chamber through the exhaust fan.
The temperature will be controlled for the all chamber by PT 100.
Air circulation max about 12,500 m³/h for every chamber.
2 pieces for lint filter in each chamber, special structures mesh stainless steel.
Special paneling density of rock wool insulation material for less heat loss.
There is 1 exhaust fan with speed controller.
Standards
This product has CE standards.
